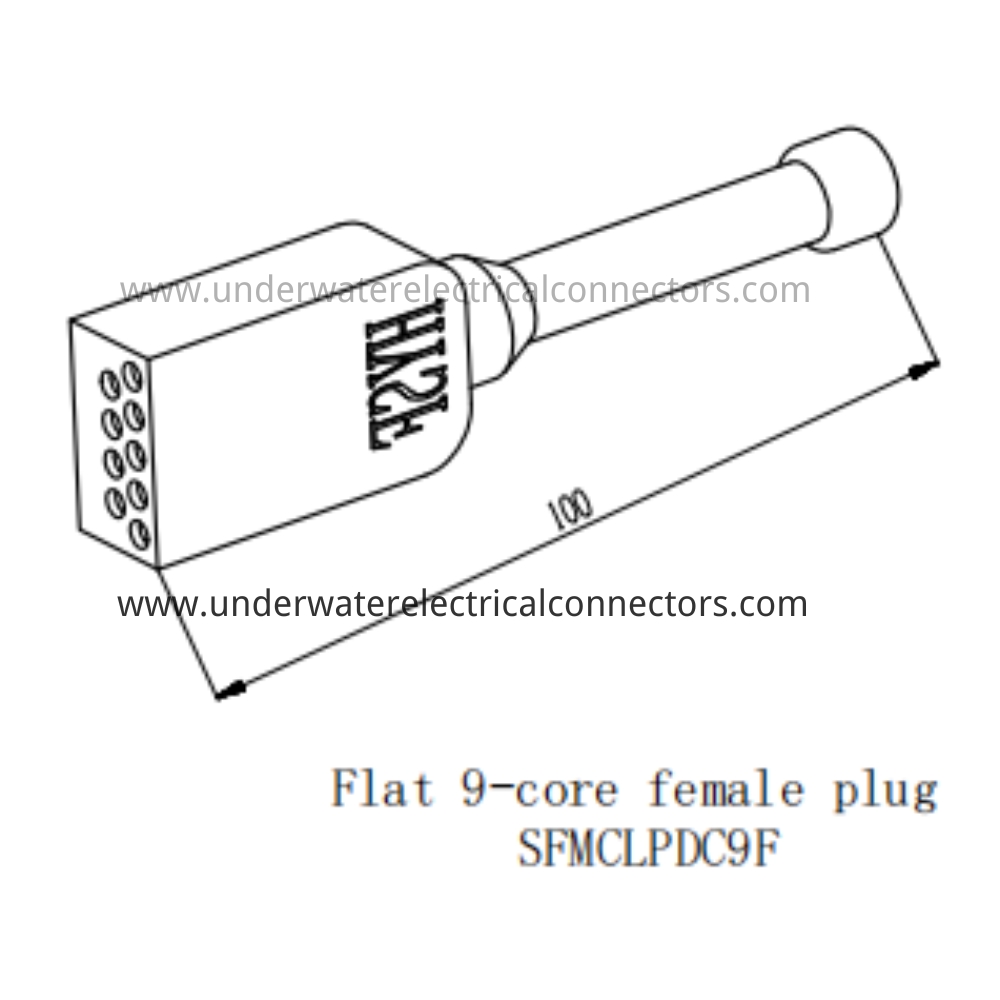

HYSF SFMCLPDC9F is a low-profile flat 9-pin female dummy plug with PU body. IP68 rated, 60 MPa tested, designed for protecting unused male 9-pin flat ports on high-density micro-ROVs, AUV flat panels, seabed instrumentation and thin pressure housings up to 6000 m.
The HYSF SFMCLPDC9F is a dedicated female dummy plug that reliably seals exposed male 9-pin flat bulkhead connectors from seawater intrusion, biofouling and mechanical damage. Its streamlined black polyurethane body slides over SFMCLPBH9M ports, creating a complete pressure-tight mechanical barrier with no electrical connection.
Injection-molded from high-durometer UV-stabilized PU with integrated stainless steel retention clip and tether loop. Triple internal O-rings ensure secure locking onto the host connector shoulder while the large grip enables easy hand-installation even with thick gloves.
Essential for maintaining system integrity on high-density flat-panel Gigabit Ethernet + multi-power systems, deep-rated sensor arrays and complex payloads when ports are temporarily unmated. ISO9001-2015 certified with 100 MPa burst rating and 500-hour UV resistance.
Model: SFMCLPDC9F
Brand: HYSF
Type: Flat 9-Core Female Dummy Plug
Gender: Female (Non-Electrical)
Pin Count: 9 Dummy Sockets
Contact Material: None (Sealing Only)
Housing Material: Polyurethane + 316L Stainless Clip
Sealing: Triple O-Ring on Flat Nose
Body Dimensions: 32 × 17 mm (Max)
Total Length: 100 mm
Grip Section: Large Hex
Tether: Integrated 2 mm Stainless Loop
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Flat 9-pin Male Port Protection, AUV Flat Panel Blanking, High-Density Dummy Caps
Certification: ISO9001-2015
Compatibility: SFMCLPBH9M Male Ports
Place of Origin: Guangdong, China
