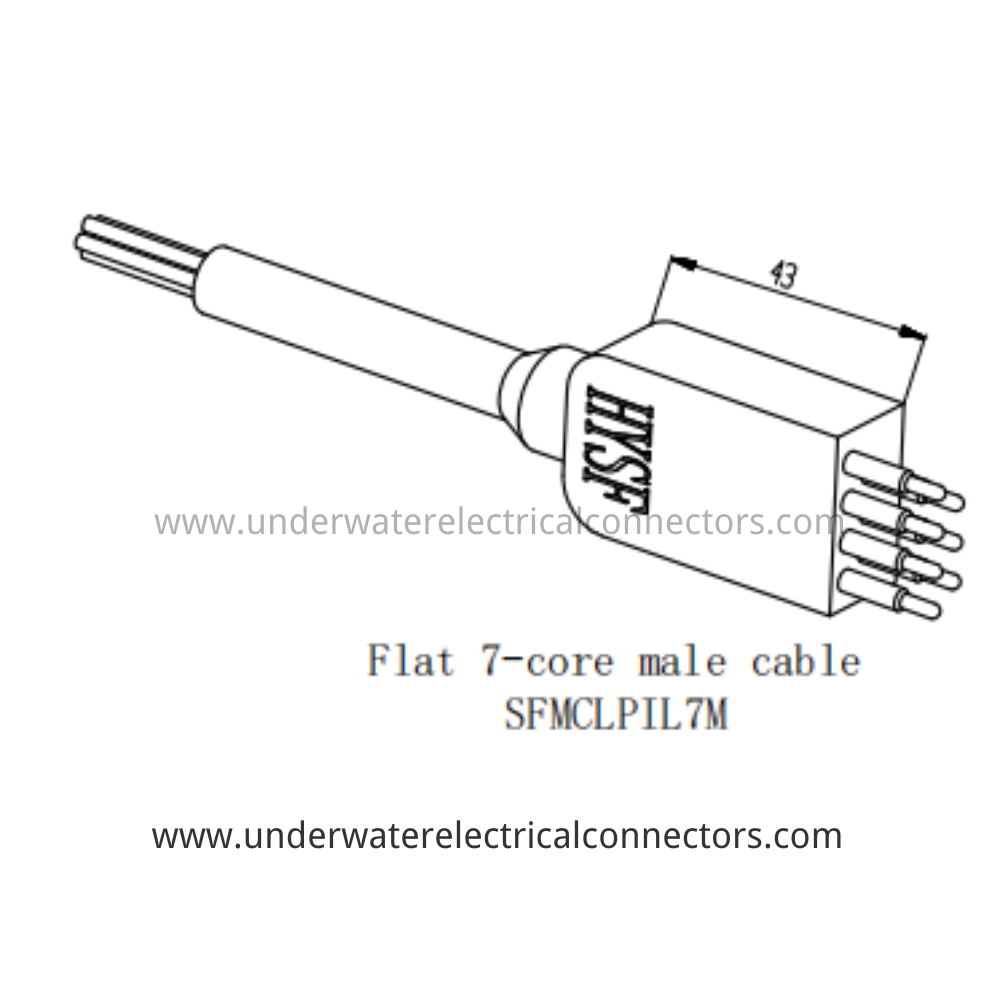

HYSF SFMCLPIL7M is a low-profile flat 7-pin male inline cable connector with PU overmold. IP68 rated, 60 MPa tested, ideal for high-density Gigabit Ethernet + multi-power tethers on space-critical micro-ROVs, AUV flat umbilicals, thin sensor chains and deepsea inline splicing up to 6000 m.
The HYSF SFMCLPIL7M delivers 7 independent channels in an ultra-thin flat profile with tapered PU overmold, enabling seamless inline splicing and cable termination where round connectors exceed available space. Only 43 mm grip length with integrated strain relief.
Precision 316L stainless steel insert with gold-plated brass pins, fully encapsulated in black polyurethane. Pre-terminated with 7 color-coded PTFE leads. Fully supports 1000BASE-T Gigabit Ethernet (two shielded twisted pairs) + 3 additional power/sensor lines.
The definitive choice for next-generation flat ROV umbilicals, thin AUV sensor chains, seabed instrumentation and deepsea hybrid flat cables requiring maximum channels in minimal cross-section. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFMCLPIL7M
Brand: HYSF
Type: Flat 7-Core Male Inline Cable
Gender: Male
Pin Count: 7
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Profile: 32 × 17 mm
Grip Length: 43 mm
Cable: 7 × 24 AWG PTFE Leads (color-coded)
Overmold: Black Polyurethane (PU)
Locking: Threaded Sleeve
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Flat Gigabit Ethernet + Multi-Power Tethers, Thin ROV Umbilicals, AUV Sensor Chains, Deepsea Flat Inline Splicing
Certification: ISO9001-2015
Compatibility: SFMCLPBH7F Females
Place of Origin: Guangdong, China
