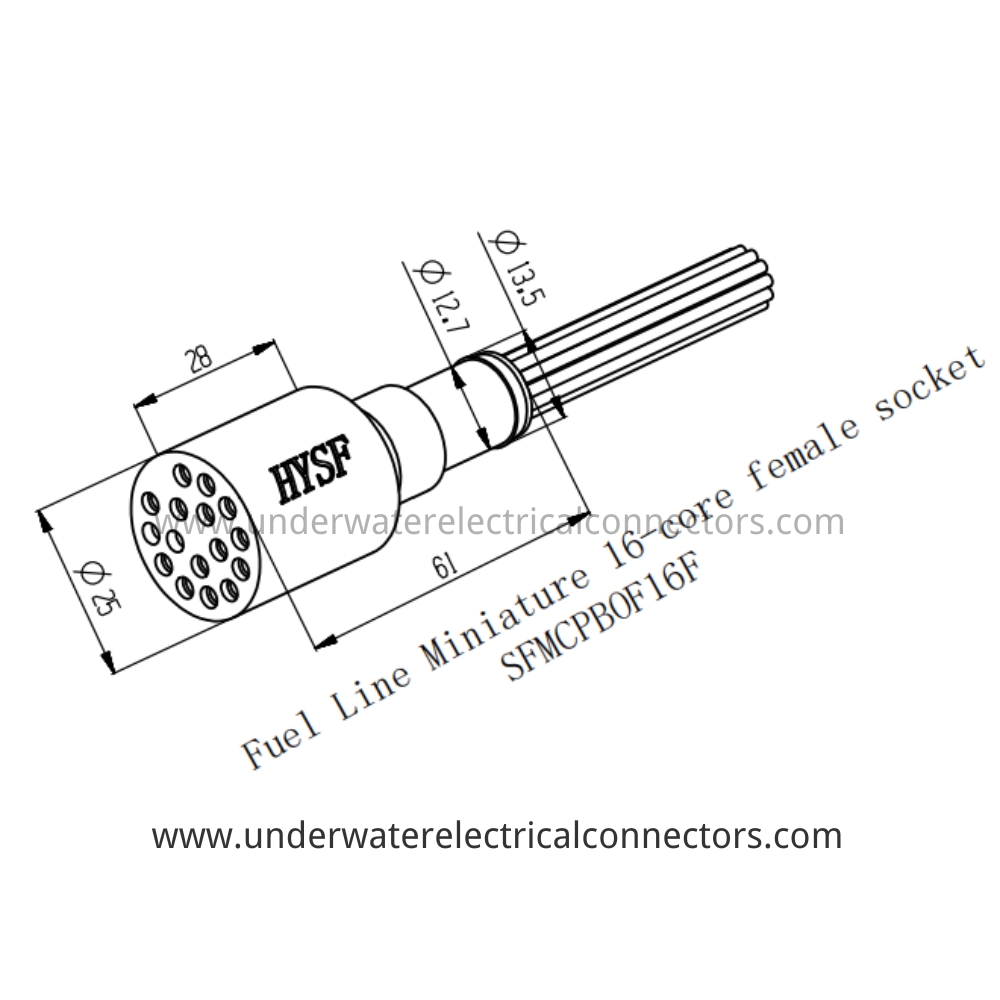

HYSF SFMCPBOF16F Miniature 16-core female socket Fuel line Inline Underwater Connector

Product Description

The HYSF SFMCPBOF16F combines an unprecedented sixteen independent electrical channels with direct fuel/hydraulic hose termination in the ultra-compact Ø15.7 mm Micro envelope. With only 61 mm total length, it enables seamless inline splicing of hybrid electro-fluidic umbilicals while maintaining full Gigabit Ethernet capability plus 12 additional power/sensor lines.

Precision-machined 316L stainless steel body with gold-plated brass sockets, triple O-ring sealing, and barbed hose tail (Ø13.5 mm) for secure 1/2" fuel line attachment. Pre-terminated 16-color PTFE leads exit axially for internal routing, with black PU overmolding for maximum strain relief.

Developed for next-generation hybrid propulsion systems in micro-ROVs, AUV power pods, deepsea tooling, and battery modules requiring simultaneous high-speed data (1000BASE-T) and high-flow fluid transfer. ISO9001-2015 certified with 100 MPa burst validation and 2000-hour fuel immersion resistance.

Product Parameter

Model: SFMCPBOF16F

Brand: HYSF

Type: Miniature 16-Core Female Inline Fuel Hose

Gender: Female

Pin Count: 16

Contact Material: Gold-plated Brass

Current Rating: 10A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Overmold: Black Polyurethane (PU)

Sealing: Triple O-Ring + Hose Barb

Body Diameter: Ø15.7 mm

Total Length: 61 mm

Hose Tail: Ø13.5 mm Barb (for 1/2" ID Hose)

Cable: Pre-terminated 16-color PTFE Leads

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Fluid Compatibility: Diesel, Hydraulic Oil, Biofuel, Gasoline

Application: ROV Fuel Lines, AUV Hybrid Propulsion, Gigabit Ethernet + High-Flow Fluid Links, Subsea Electro-Fluidic Transfer

Certification: ISO9001-2015

Compatibility: SFMCPBOF16M / MCIL16M Mates

Place of Origin: Guangdong, China
