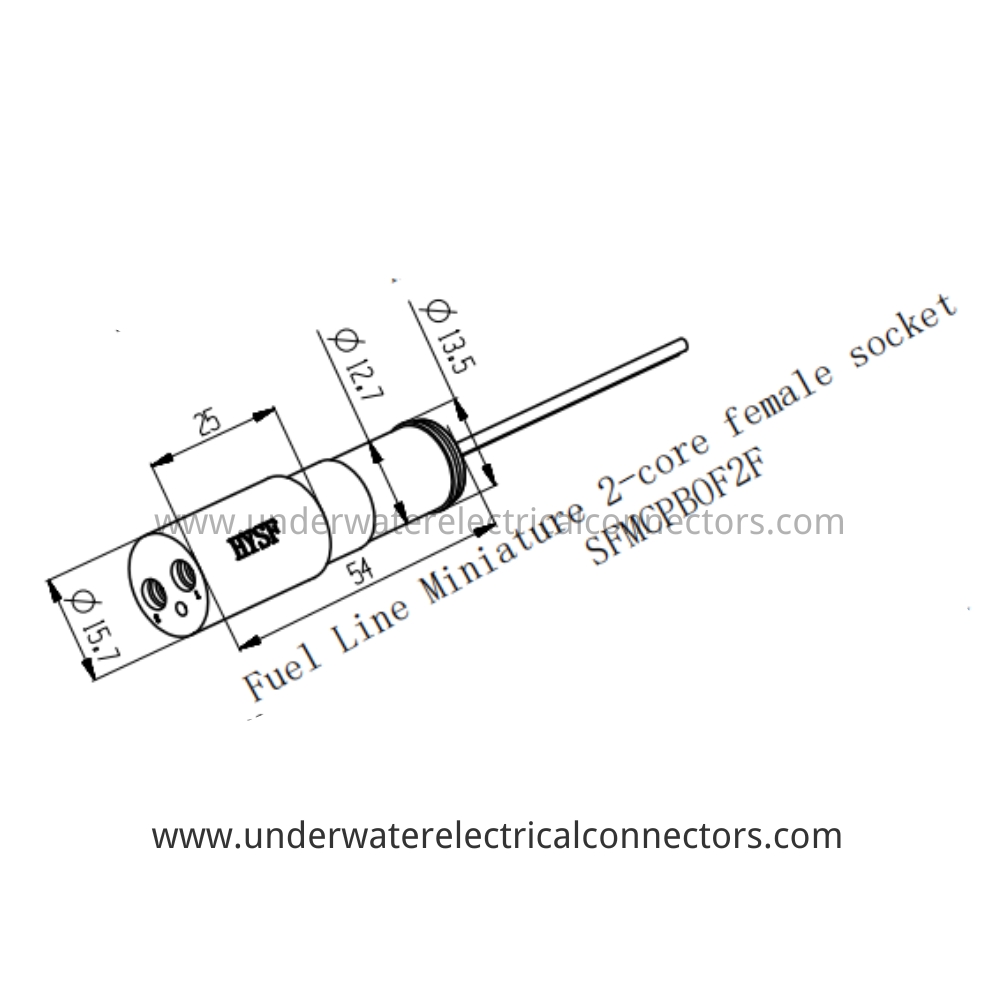

HYSF SFMCPBOF2F Miniature 2-core female socket Fuel Line Underwater Connector

Product Description

The HYSF SFMCPBOF2F delivers a specialized miniature 2-core female inline connector tailored for fluid-integrated electrical transmission in extreme subsea conditions. Its built-in fuel line socket (Ø3.5 mm ID) accepts standard PTFE or nylon fuel tubing, enabling seamless inline fluid and power routing within a single compact assembly.

Constructed from corrosion-resistant titanium with gold-plated high-pressure contacts, the oil-filled internal cavity equalizes ambient pressure to prevent seal collapse at hadal depths. The 54 mm total length incorporates a reinforced strain-relief boot and precision-machined alignment key for reliable mating with SFMCPBOF2M counterparts.

Engineered for deep-tow fuel transfer systems, subsea chemical dosing units, and ROV hydraulic control loops, this connector eliminates separate fluid junctions while maintaining full electrical isolation. ISO9001-2015 certified with 100 MPa hyperbaric validation and helium integrity verification.

Product Parameter

Model: SFMCPBOF2F

Brand: HYSF

Type: Miniature 2-Core Oil-Filled Female Inline

Gender: Female

Pin Count: 2 Pins

Contact Material: Gold-plated Copper Alloy

Current Rating: 8A per Pin

Voltage Rating: 600V AC/DC

Housing Material: Grade 5 Titanium

Fluid Port: Ø3.5 mm Inline Fuel Line Socket

Fill Medium: Pressure-Compensating Dielectric Oil

Sealing: Ceramic Insulation + Viton Dynamic Seals

Body Diameter: Ø15.7 mm

Total Length: 54 mm

Cable: PTFE-Insulated Flying Leads (Red/Black)

Waterproof Rating: IP68

Pressure Rating: 100 MPa (~10,000 m)

Operating Temperature: -10°C to 90°C

Application: Deep-Sea Fuel Transfer, ROV Fluid Control, Chemical Injection Lines, Hadal Power-Fluid Hybrids

Certification: ISO9001-2015

Compatibility: SFMCPBOF2M Male Counterpart

Place of Origin: Guangdong, China
