HYSF SFMCPBOF3F Miniature 3-core female socket Fuel line Inline Underwater Connector

Product Description

The HYSF SFMCPBOF3F is a miniature 3-core female inline connector engineered for seamless integration of fuel and hydraulic hoses in subsea vehicles. Its compact Ø15.7 mm body with 54 mm total length enables direct hose termination while maintaining full electrical isolation for sensor or control signals.

Precision-machined from 316L stainless steel with gold-plated brass sockets, it features triple O-ring sealing and a barbed hose tail (Ø12.7 mm) for secure 3/8" fuel line attachment. Pre-terminated PTFE leads (red/black/white) exit axially for internal routing, with PU overmolding ensuring strain relief.

Developed for hybrid electro-fluidic inline connections in micro-ROVs, AUV propulsion pods, and deepsea tooling where combined power and fluid transfer is required. ISO9001-2015 certified with 100 MPa burst validation and 1000-hour fuel resistance.

Product Parameter

Model: SFMCPBOF3F

Brand: HYSF

Type: Miniature 3-Core Female Inline Fuel Hose

Gender: Female

Pin Count: 3 Sockets

Contact Material: Gold-plated Brass

Current Rating: 10A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Overmold: Black Polyurethane (PU)

Sealing: Triple O-Ring + Hose Barb

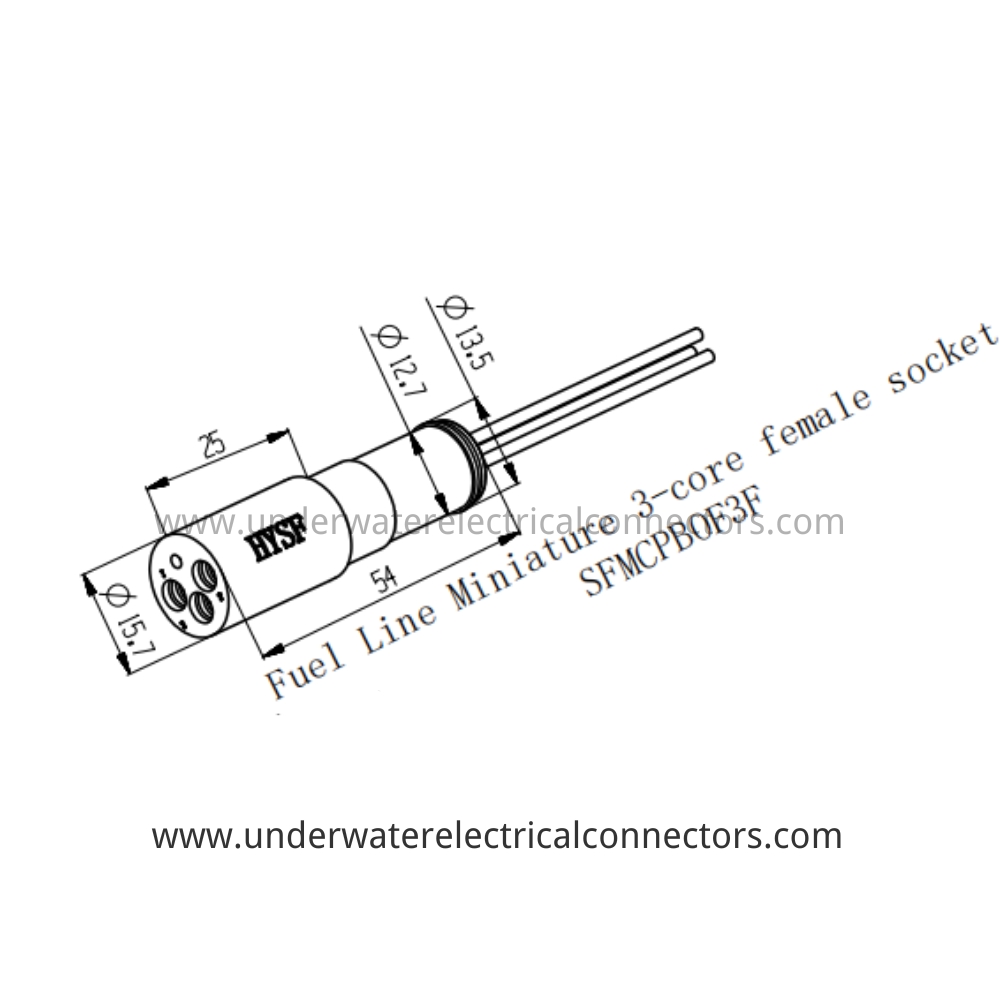

Body Diameter: Ø15.7 mm

Total Length: 54 mm

Hose Tail: Ø12.7 mm Barb (for 3/8" ID Hose)

Cable: Pre-terminated PTFE Leads (Red/Black/White)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Fluid Compatibility: Diesel, Hydraulic Oil, Biofuel

Application: ROV Fuel Lines, AUV Hydraulic Ports, Subsea Fluid Transfer, Hybrid Inline Links

Certification: ISO9001-2015

Compatibility: SFMCPBOF3M / MCIL3M Mates

Place of Origin: Guangdong, China
