HYSF SFMCPBOF3M is a specialized 3-pin male bulkhead fuel-hose connector with Ø15.7 mm body. IP68 rated, 60 MPa tested, designed for micro-ROV fuel lines, AUV hydraulic interfaces, and compact subsea fluid transfer systems up to 6000m.

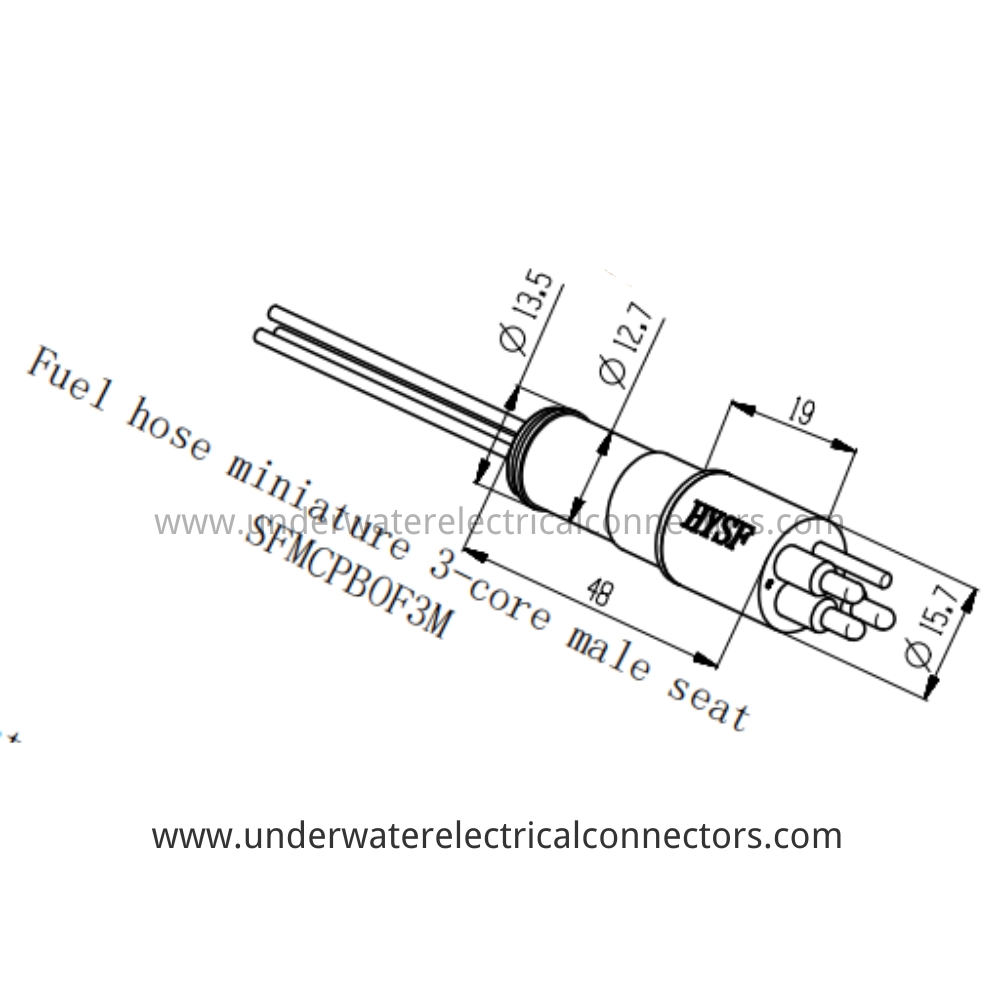

The HYSF SFMCPBOF3M is a miniature 3-core male bulkhead connector engineered specifically for fuel and hydraulic hose integration in subsea vehicles. Its compact Ø15.7 mm body with 48 mm total length supports direct inline hose termination while maintaining full electrical isolation for sensor or control signals.
Precision-machined from 316L stainless steel with gold-plated brass contacts, it features triple O-ring sealing and a barbed hose tail (Ø13.5 mm) for secure 3/8" fuel line attachment. Pre-terminated PTFE leads (red/black/white) exit axially for internal routing, while the M16 mounting thread includes locking nut and washer.
Developed for hybrid electro-fluidic penetrations in micro-ROVs, AUV propulsion pods, and deepsea tooling where combined power and fluid transfer is required. ISO9001-2015 certified with 100 MPa burst validation and 1000-hour fuel resistance.
Model: SFMCPBOF3M
Brand: HYSF
Type: Miniature 3-Core Male Bulkhead Fuel Hose
Gender: Male
Pin Count: 3 Pins
Contact Material: Gold-plated Brass
Current Rating: 10A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Triple O-Ring + Hose Barb
Body Diameter: Ø15.7 mm
Total Length: 48 mm
Hose Tail: Ø13.5 mm Barb (for 3/8" ID Hose)
Mounting: M16 Thread with Nut & Washer
Leads: PTFE-Insulated (Red/Black/White)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Fluid Compatibility: Diesel, Hydraulic Oil, Biofuel
Application: ROV Fuel Lines, AUV Hydraulic Ports, Subsea Fluid Transfer, Hybrid Penetrators
Certification: ISO9001-2015
Compatibility: MCIL3F / MCBH3F Mates
Place of Origin: Guangdong, China
