HYSF SFMCPBOF8F Miniature 8-core female socket Fuel line Inline Underwater Connector

Product Description

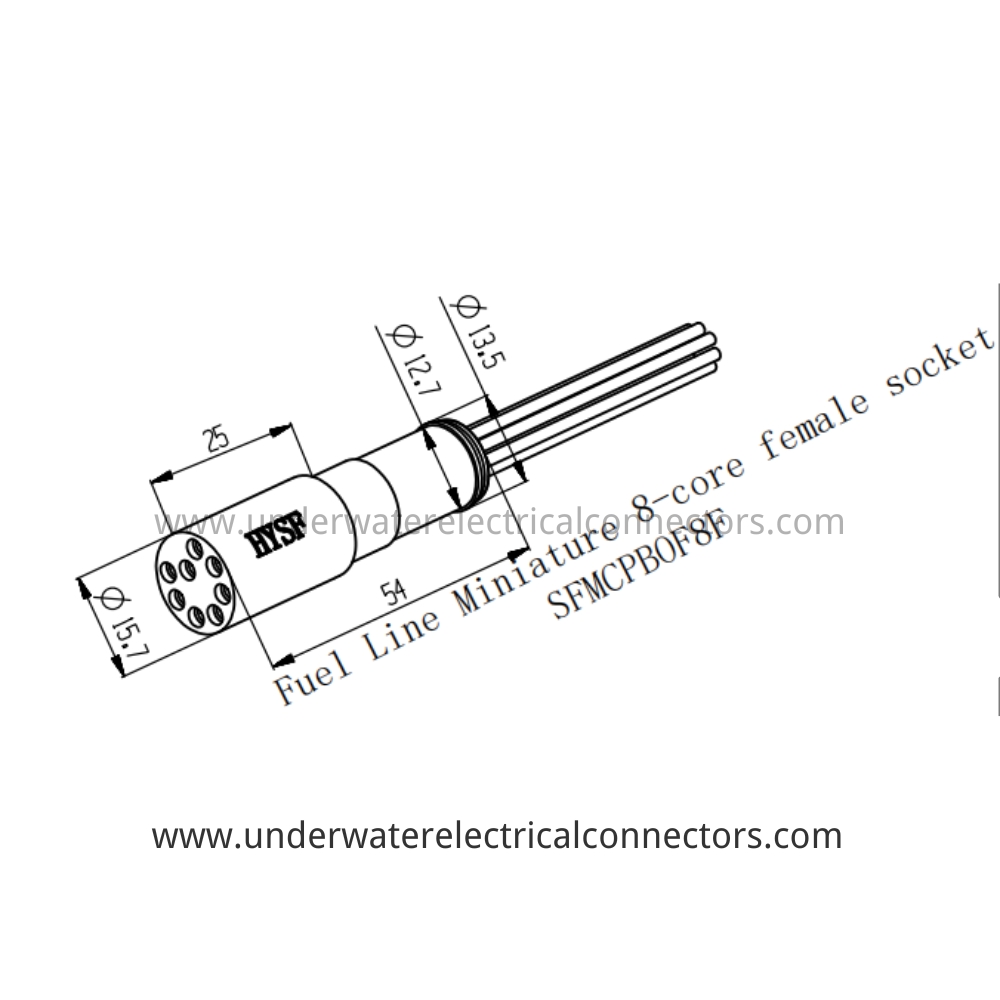

The HYSF SFMCPBOF8F combines eight independent electrical channels with direct fuel/hydraulic hose termination in the same ultra-compact Ø15.7 mm envelope. Total length of only 54 mm enables seamless inline splicing of hybrid electro-fluidic umbilicals while maintaining full Gigabit Ethernet capability.

Precision-machined 316L stainless steel body with gold-plated brass sockets, triple O-ring sealing, and barbed hose tail (Ø15.5 mm) for secure 1/2" fuel line attachment. Pre-terminated 8-color PTFE leads exit axially for internal routing, with black PU overmolding providing maximum strain relief.

Developed for next-generation hybrid propulsion systems in micro-ROVs, AUV power pods, deepsea tooling, and battery modules requiring simultaneous high-speed data (1000BASE-T) and fluid transfer. ISO9001-2015 certified with 100 MPa burst validation and 2000-hour fuel immersion resistance.

Product Parameter

Model: SFMCPBOF8F

Brand: HYSF

Type: Miniature 8-Core Female Inline Fuel Hose

Gender: Female

Pin Count: 8

Contact Material: Gold-plated Brass

Current Rating: 10A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Overmold: Black Polyurethane (PU)

Sealing: Triple O-Ring + Hose Barb

Body Diameter: Ø15.7 mm

Total Length: 54 mm

Hose Tail: Ø15.5 mm Barb (for 1/2" ID Hose)

Cable: Pre-terminated 8-color PTFE Leads (Red/Black/White/Blue/Yellow/Green/Orange/Brown)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Fluid Compatibility: Diesel, Hydraulic Oil, Biofuel, Gasoline

Application: ROV Fuel Lines, AUV Hybrid Propulsion, Gigabit Ethernet + Fluid Links, Subsea Electro-Fluidic Transfer

Certification: ISO9001-2015

Compatibility: SFMCPBOF8M / MCIL8M Mates

Place of Origin: Guangdong, China
