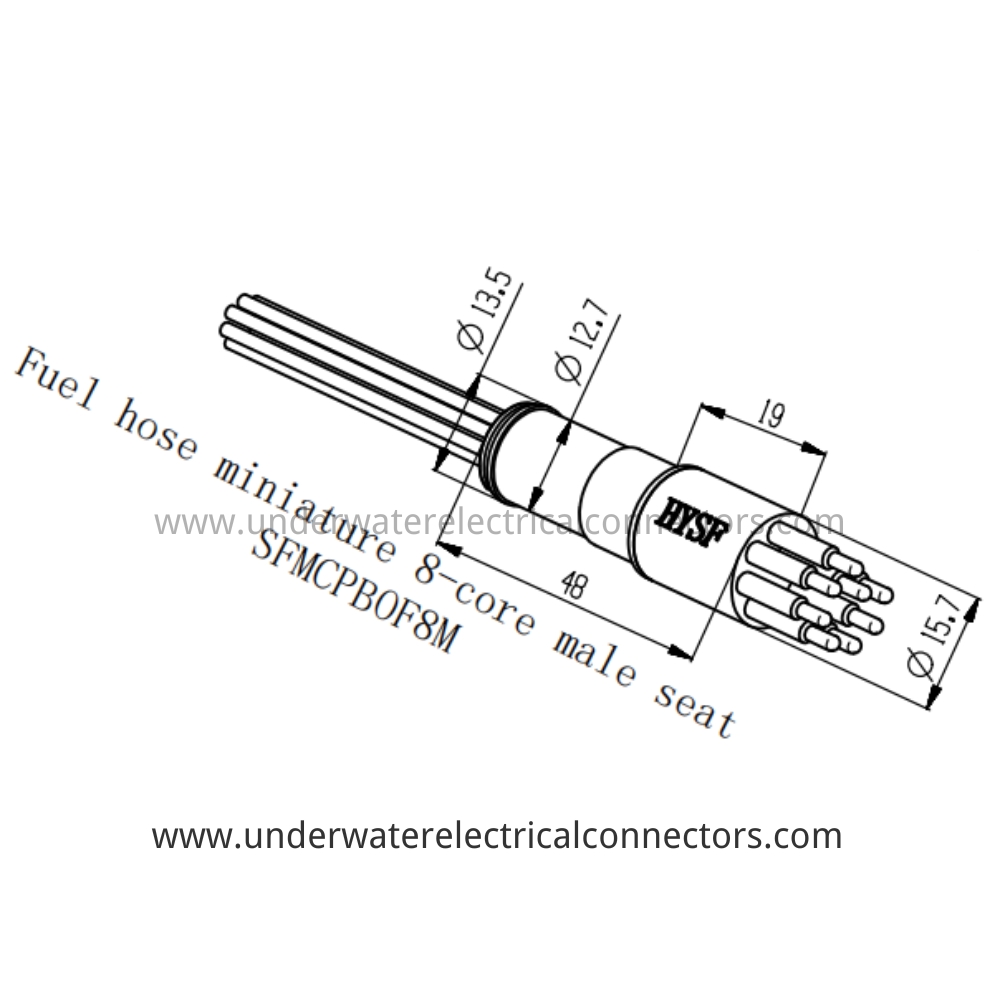

HYSF SFMCPBOF8M Miniature 8-core male seat Fuel hose Underwater Connector

Product Description

The HYSF SFMCPBOF8M integrates eight independent electrical channels with direct fuel/hydraulic hose termination in the ultra-compact Micro footprint. With only 48 mm total length and a 19 mm hex grip, it provides the highest-density hybrid electro-fluidic penetrator available for thin or curved pressure housings.

Precision-machined from 316L stainless steel with gold-plated brass pins, triple O-ring sealing, and barbed hose tail (Ø13.5 mm) for secure 1/2" fuel line attachment. Pre-terminated 8-color PTFE leads exit axially for internal routing, while the M16 mounting thread includes locking nut and washer.

Developed for next-generation hybrid propulsion systems in micro-ROVs, AUV power pods, deepsea tooling, and battery modules requiring simultaneous Gigabit Ethernet (1000BASE-T) and fluid transfer. ISO9001-2015 certified with 100 MPa burst validation and 2000-hour fuel immersion resistance.

Product Parameter

Model: SFMCPBOF8M

Brand: HYSF

Type: Miniature 8-Core Male Bulkhead Fuel Hose

Gender: Male

Pin Count: 8

Contact Material: Gold-plated Brass

Current Rating: 10A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Sealing: Triple O-Ring + Hose Barb

Body Diameter: Ø15.7 mm

Total Length: 48 mm

Hose Tail: Ø13.5 mm Barb (for 1/2" ID Hose)

Grip Length: 19 mm

Mounting: M16 Thread with Nut & Washer

Leads: PTFE-Insulated 8-color (Red/Black/White/Blue/Yellow/Green/Orange/Brown)

Waterproof Rating: IP68

Pressure Rating: 60 MPa (~6000 m)

Operating Temperature: -20°C to 80°C

Fluid Compatibility: Diesel, Hydraulic Oil, Biofuel, Gasoline

Application: ROV Fuel Penetrators, AUV Hybrid Ports, Gigabit Ethernet + Fluid Links, Subsea Electro-Fluidic Bulkheads

Certification: ISO9001-2015

Compatibility: MCIL8F / MCBH8F / SFMCPBOF8F Mates

Place of Origin: Guangdong, China
