HYSF SFMCTZILM is a high-performance coaxial male inline cable connector with PU overmold for reliable RF signal transmission in underwater environments. IP68 rated, 60 MPa tested, designed for high-frequency data links in ROVs, sonar systems, underwater cameras and deepsea communication applications up to 6000 m.

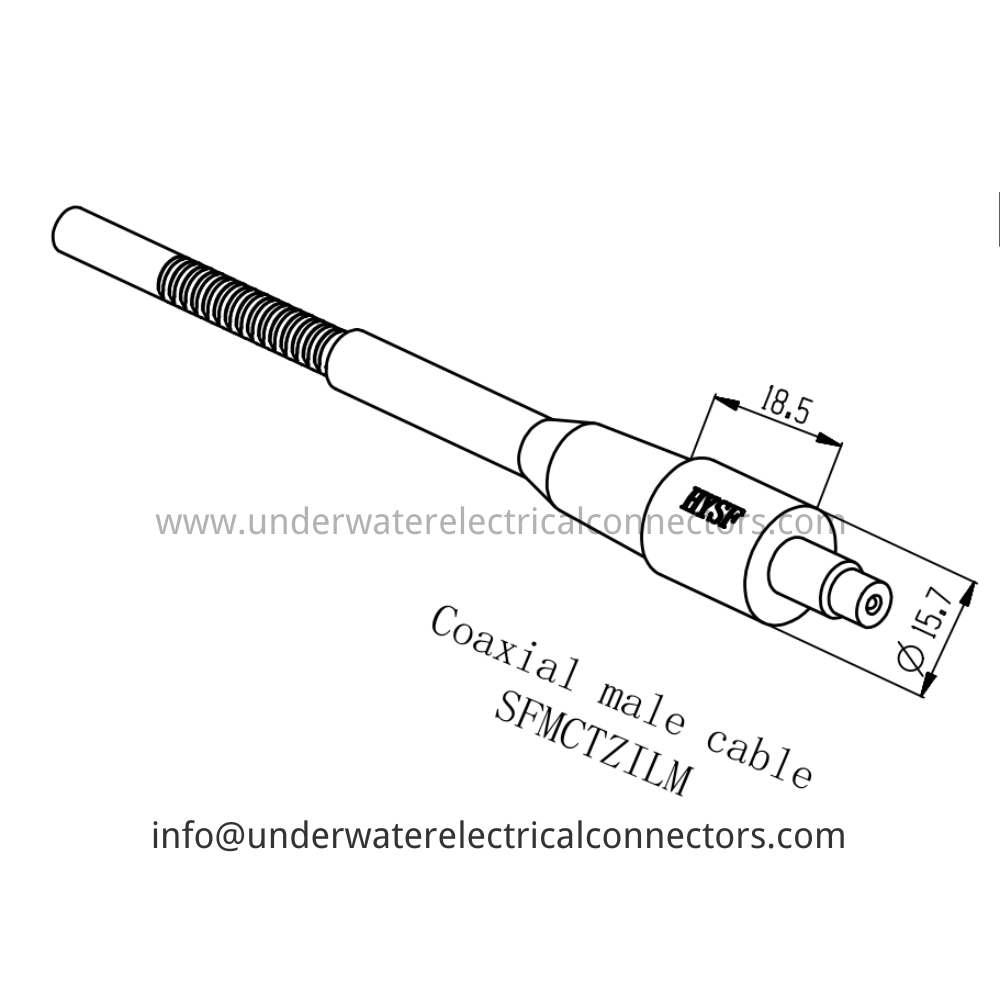

The HYSF SFMCTZILM provides low-loss coaxial transmission in a compact inline cable profile with tapered PU overmold, enabling reliable high-frequency splicing and termination in constrained subsea spaces. 18.5 mm grip length with robust strain relief.
Precision-machined 316L stainless steel body with gold-plated center contact and PTFE dielectric for excellent RF performance. Fully encapsulated in black polyurethane for superior environmental protection.
The ultimate solution for underwater RF umbilicals, sonar feeds, high-speed video links, acoustic modem interfaces and demanding subsea systems requiring reliable coaxial signal integrity. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFMCTZILM
Brand: HYSF
Type: Coaxial Male Inline Cable
Gender: Male
Connector Type: Coaxial (likely TNC or similar interface)
Impedance: 50 Ohm
Frequency Range: DC to 6 GHz
VSWR: <1.3 (typical)
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 25 mm
Grip Length: 18.5 mm
Cable: Pre-terminated Coaxial Cable
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Underwater RF Umbilicals, Sonar Feeds, High-Speed Video Links, Acoustic Modem Interfaces, Deepsea Coaxial Signal Applications
Certification: ISO9001-2015
Compatibility: Corresponding Coaxial Female Receptacles
Place of Origin: Guangdong, China
