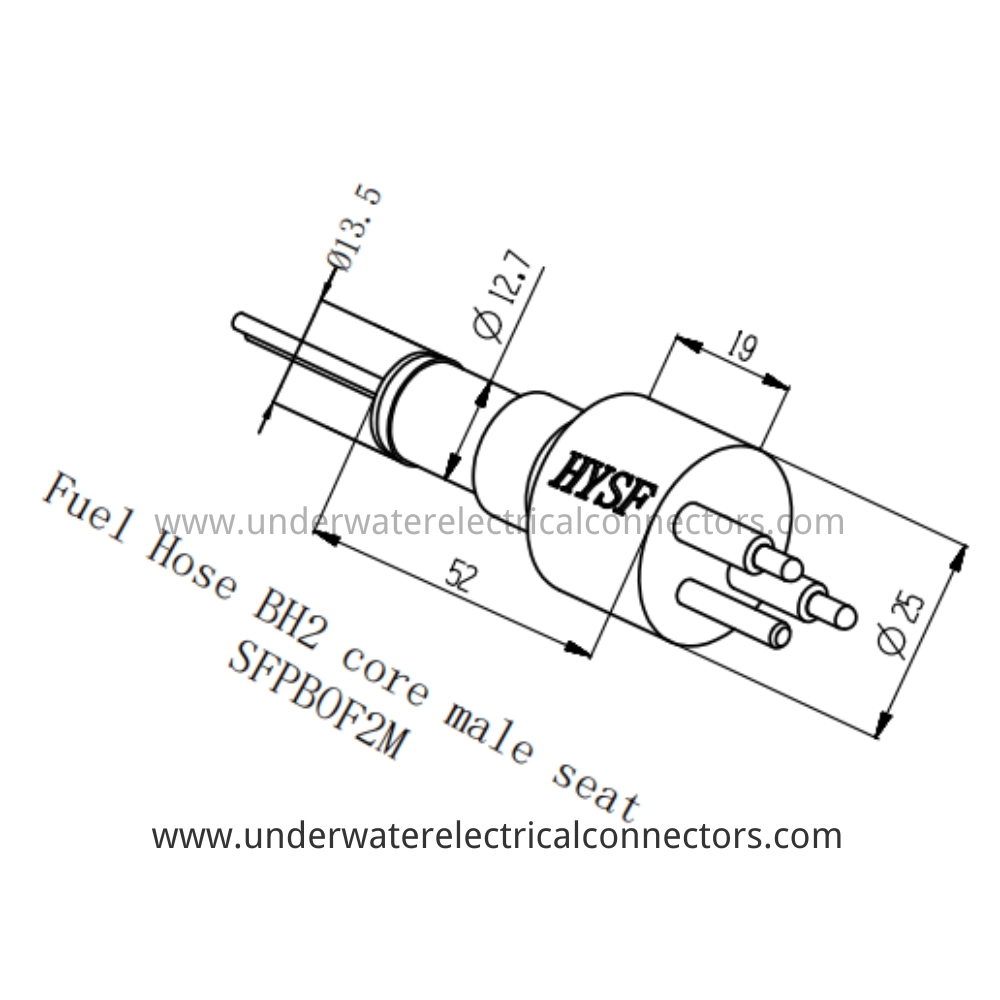

HYSF SFPBOF2M 2-Pin Fuel Hose Male Bulkhead Underwater Connector

Product Description

The HYSF SFPBOF2M is a specialized **2-pin male bulkhead fuel hose underwater connector** that seamlessly merges high-current electrical feed-through with direct fluid transfer. Its built-in **Ø6 mm hose barb** allows instant push-on connection of flexible fuel, oil, or hydraulic lines, eliminating bulky adapters and reducing potential leak points in deep-sea systems.

With an ultra-compact **19 mm** insertion depth and robust 316L stainless steel body, this open-face pressure-tolerant connector excels in weight- and space-critical applications. Gold-plated pins and dual O-ring sealing guarantee reliable power delivery at **70 MPa (7000 m)** while the integrated barb securely handles fluid transfer.

Perfect drop-in replacement for systems using Subconn®-style connectors while adding fluid-pass-through capability. Widely deployed on thruster drives, hydraulic manipulators, and diesel-powered underwater vehicles requiring combined power + fluid connections.

Product Parameter

Model: SFPBOF2M

Brand: HYSF

Type: 2-Pin Male Bulkhead Fuel Hose Connector

Gender: Male (Pin)

Pin Count: 2 Pins

Contact Material: Gold-plated Copper Alloy

Current Rating: 16A per Pin

Voltage Rating: 600V AC/DC

Housing Material: 316L Stainless Steel

Hose Barb Diameter: Ø6 mm (for 1/4" ID hose)

Mounting Thread: M16×1 (customizable)

Behind-Panel Length: 19 mm

Body Diameter: Ø21.5 mm

Total Length (with barb): 52 mm

Sealing: Double O-Ring + Epoxy Potting

Fluid Compatibility: Diesel, Hydraulic Oil, Ethanol, Glycol-Based Fluids

Waterproof Rating: IP68 / Open Face Pressure Tolerant

Pressure Rating: 70 MPa (~7000 m depth)

Operating Temperature: -10°C to 70°C

Application: ROV Hydraulic Tools, AUV Fuel Systems, Subsea Thruster Power + Oil Fill, Manned Submersibles

Certification: ISO9001-2015

Compatibility: Subconn® Standard Circular Series (mates with MCBF2F / IL2F)

Place of Origin: Guangdong, China
