HYSF SFTZBHM is a high-performance coaxial male bulkhead connector for reliable RF signal feedthrough in underwater environments. IP68 rated, 60 MPa tested, designed for high-frequency data links in ROVs, sonar systems, underwater cameras and deepsea communication applications up to 6000 m.

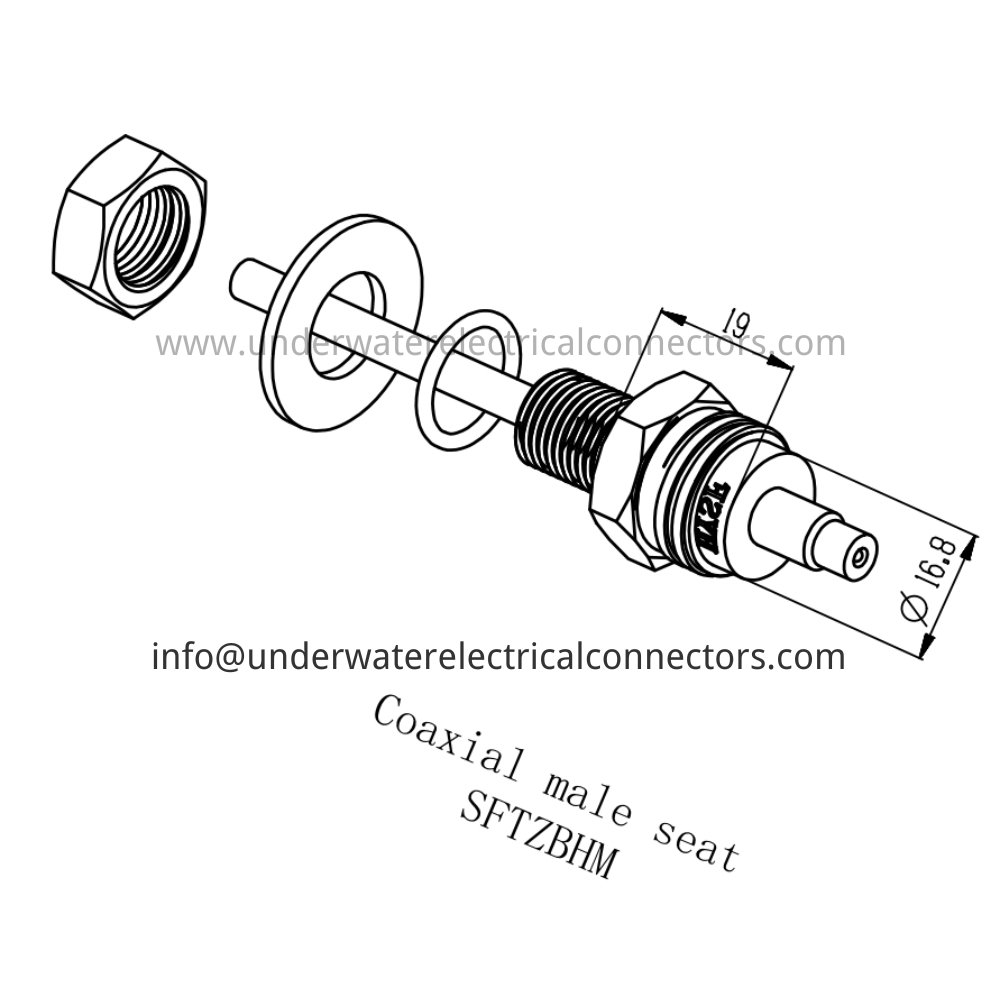

The HYSF SFTZBHM provides low-loss coaxial transmission in a compact bulkhead mount design, ideal for permanent RF penetrations in subsea housings. 19 mm body length with threaded mounting nut and washer for secure panel installation.
Precision-machined 316L stainless steel body with gold-plated center contact and PTFE dielectric for excellent RF performance. Double O-ring sealing ensures full pressure resistance.
The ultimate solution for underwater RF bulkhead penetrations, sonar interfaces, high-speed video feedthroughs, acoustic modem ports and demanding subsea systems requiring reliable coaxial signal integrity. ISO9001-2015 certified with 100 MPa burst validation.
Model: SFTZBHM
Brand: HYSF
Type: Coaxial Male Bulkhead Connector
Gender: Male
Connector Type: Coaxial (likely TNC or similar interface)
Impedance: 50 Ohm
Frequency Range: DC to 6 GHz
VSWR: <1.3 (typical)
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Body Diameter: 16.8 mm
Body Length: 19 mm
Mounting: Threaded with Nut & Washer
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Underwater RF Bulkhead Penetrations, Sonar Interfaces, High-Speed Video Feedthroughs, Acoustic Modem Ports, Deepsea Coaxial Signal Distribution
Certification: ISO9001-2015
Compatibility: Corresponding Coaxial Female Plugs
Place of Origin: Guangdong, China
