HYSF SFTZDCF is a high-performance coaxial female plug connector with PU overmold for reliable RF signal transmission in underwater environments. IP68 rated, 60 MPa tested, designed for high-frequency data links in ROVs, sonar systems, underwater cameras and deepsea communication applications up to 6000 m.

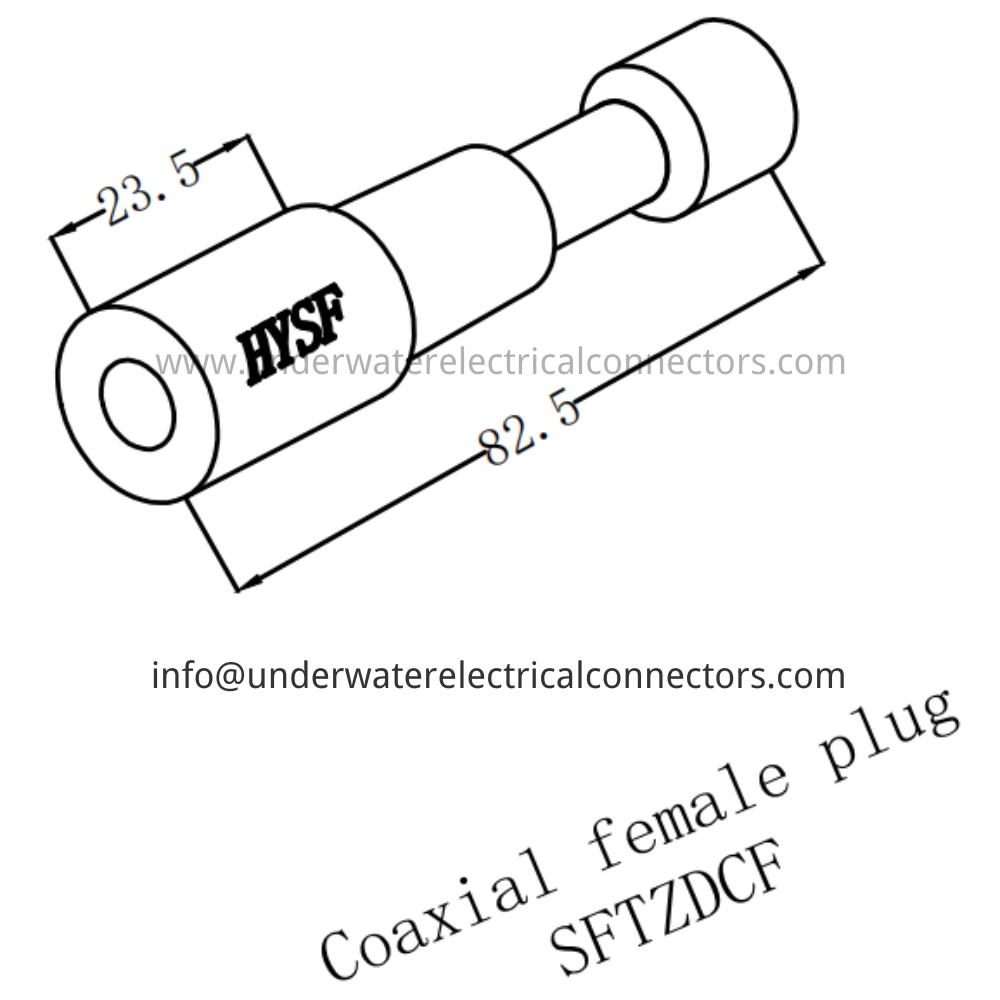

The HYSF SFTZDCF provides low-loss coaxial transmission in a compact plug profile with tapered PU overmold, ideal for direct mating to bulkhead receptacles in constrained spaces. 23.5 mm grip length with total length of 82.5 mm and robust strain relief.
Precision-machined 316L stainless steel body with gold-plated center contact and PTFE dielectric for excellent RF performance. Fully encapsulated in black polyurethane for superior environmental protection.
The ultimate solution for underwater RF connections, sonar feeds, high-speed video links, acoustic modem interfaces and demanding subsea systems requiring reliable coaxial signal integrity. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFTZDCF
Brand: HYSF
Type: Coaxial Female Plug
Gender: Female
Connector Type: Coaxial (likely TNC or similar interface)
Impedance: 50 Ohm
Frequency Range: DC to 6 GHz
VSWR: <1.3 (typical)
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 25 mm
Grip Length: 23.5 mm
Total Length: 82.5 mm
Cable: Pre-terminated Coaxial Cable
Overmold: Black Polyurethane (PU)
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Underwater RF Transmission, Sonar Feeds, High-Speed Video Links, Acoustic Modem Interfaces, Deepsea Coaxial Signal Applications
Certification: ISO9001-2015
Compatibility: Corresponding Coaxial Male Receptacles
Place of Origin: Guangdong, China
