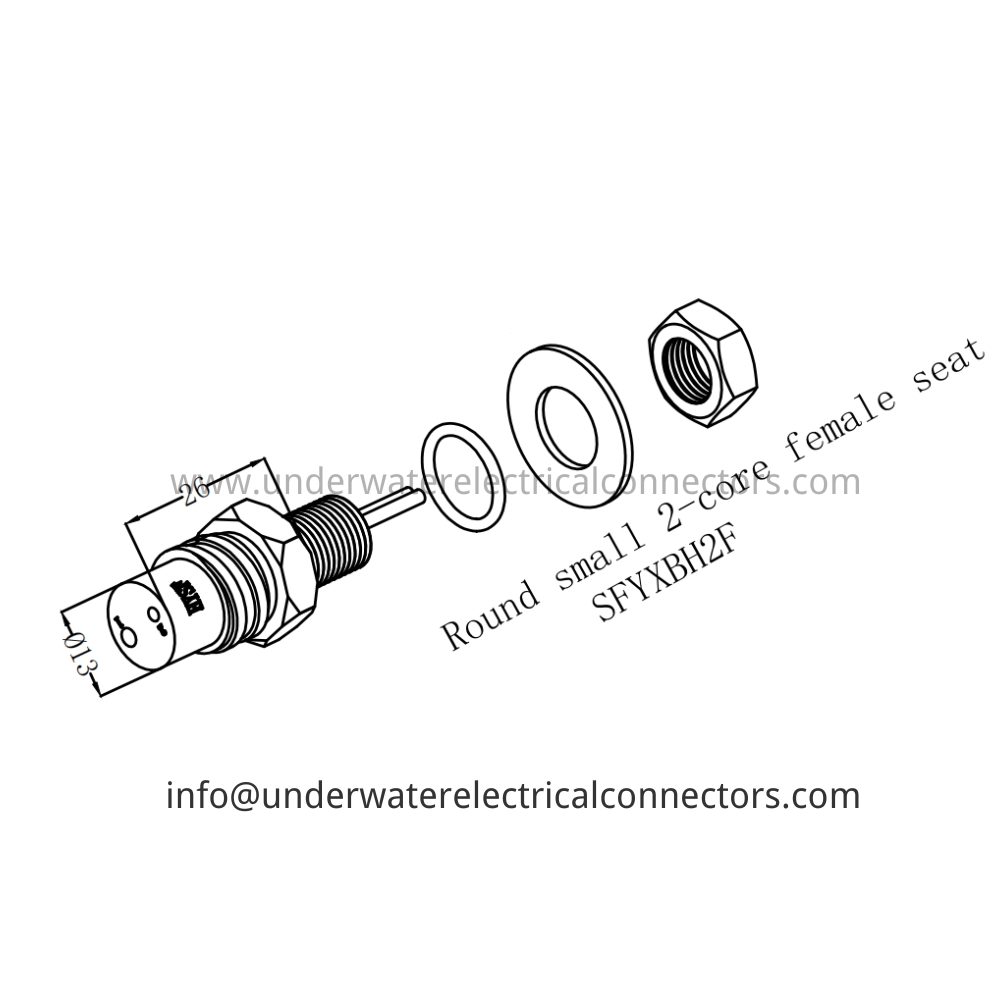

HYSF SFYXB H2F is an ultra-compact round 2-pin female bulkhead connector with 28×16 mm footprint. IP68 rated, 60 MPa tested, designed for high-current power feedthroughs in space-restricted micro-ROVs, miniature AUVs, thin pressure housings and compact deepsea instrumentation up to 6000 m.
The HYSF SFYXB H2F provides reliable high-current power penetration in an extremely compact round profile only 13 mm thick, ideal for applications where panel space and housing thickness are severely limited.
Precision-machined 316L stainless steel body with gold-plated brass sockets, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 2 × 18 AWG PTFE leads for high current handling.
Perfect for ultra-miniature thruster power ports, compact battery feedthroughs, micro-LED lighting systems and the smallest deepsea payloads requiring robust power in minimal volume. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFYXB H2F
Brand: HYSF
Type: Round Small 2-Core Female Bulkhead Connector
Gender: Female
Pin Count: 2
Contact Material: Gold-plated Brass
Current Rating: 25A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Footprint: 28 × 16 mm
Body Thickness: 13 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated 2 × 18 AWG PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Ultra-Miniature Power Penetrators, Compact Thruster Ports, Micro-Battery Feedthroughs, Extreme Space-Constrained Deepsea Power Applications
Certification: ISO9001-2015
Compatibility: SFCXIL2M Males
Place of Origin: Guangdong, China
