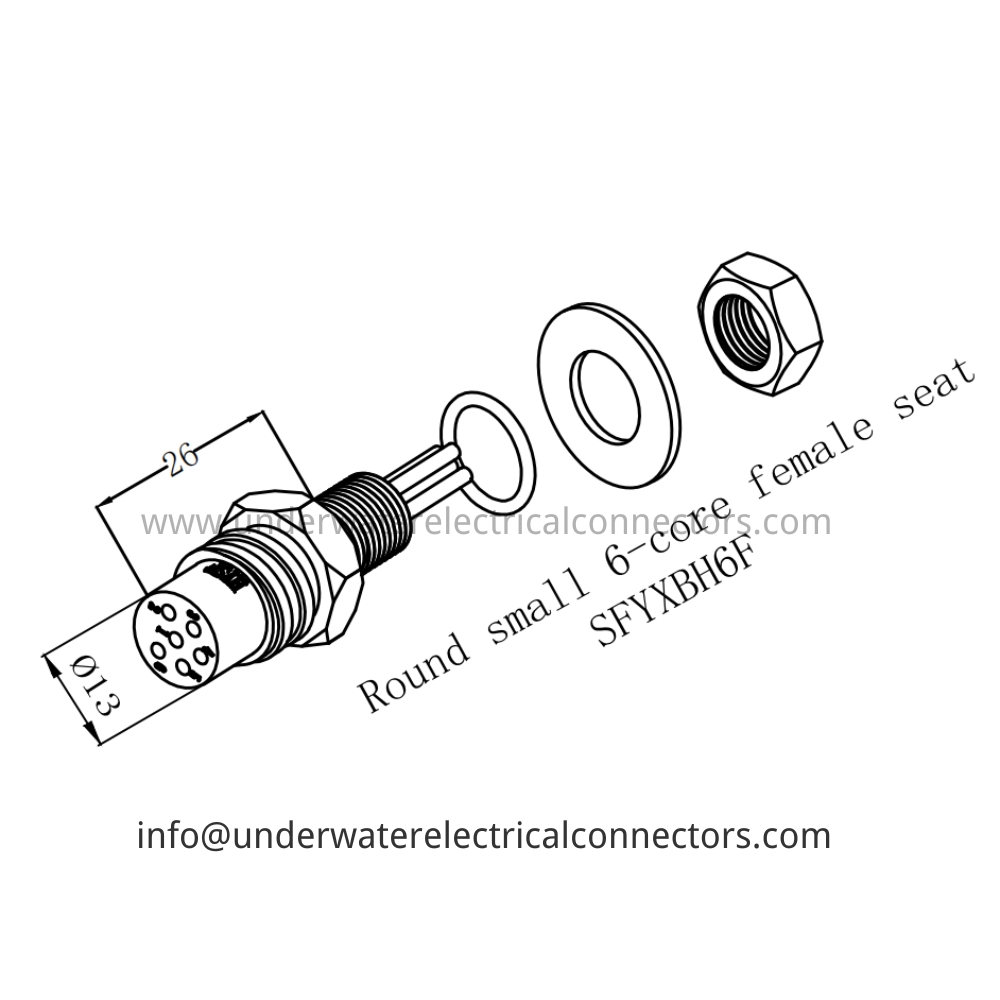

HYSF SFYXB H6F is an ultra-compact round 6-pin female bulkhead connector with 28×16 mm footprint. IP68 rated, 60 MPa tested, designed for Gigabit Ethernet + dual power/sensor feedthroughs in space-restricted micro-ROVs, miniature AUVs, thin pressure housings and compact deepsea instrumentation up to 6000 m.
The HYSF SFYXB H6F delivers 6 channels in an extremely compact round profile only 13 mm thick, offering exceptional versatility for hybrid high-speed data + power/sensor applications where panel space and housing thickness are severely limited.
Precision-machined 316L stainless steel body with gold-plated brass sockets, double O-ring sealing, and supplied with stainless mounting nut + washer. Pre-terminated with 6 × 24 AWG PTFE leads. Typical configuration: 1000BASE-T Gigabit Ethernet (4 pins) + 2 additional power/sensor lines.
Ideal for ultra-miniature high-resolution camera feeds with auxiliary power, Ethernet-enabled multi-sensor nodes, compact actuator control and the smallest deepsea payloads requiring maximum functionality in minimal volume. ISO9001-2015 certified with 100% hyperbaric testing.
Model: SFYXB H6F
Brand: HYSF
Type: Round Small 6-Core Female Bulkhead Connector
Gender: Female
Pin Count: 6
Contact Material: Gold-plated Brass
Current Rating: 8A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel
Sealing: Double O-Ring
Footprint: 28 × 16 mm
Body Thickness: 13 mm
Mounting: Threaded with Nut & Washer
Cable: Pre-terminated 6 × 24 AWG PTFE Leads
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet + Dual Power/Sensor Ultra-Miniature Penetrators, Micro Multi-Sensor Feeds, Compact Actuator Control, Extreme Space-Constrained Deepsea Hybrid Applications
Certification: ISO9001-2015
Compatibility: SFCXIL6M Males
Place of Origin: Guangdong, China
