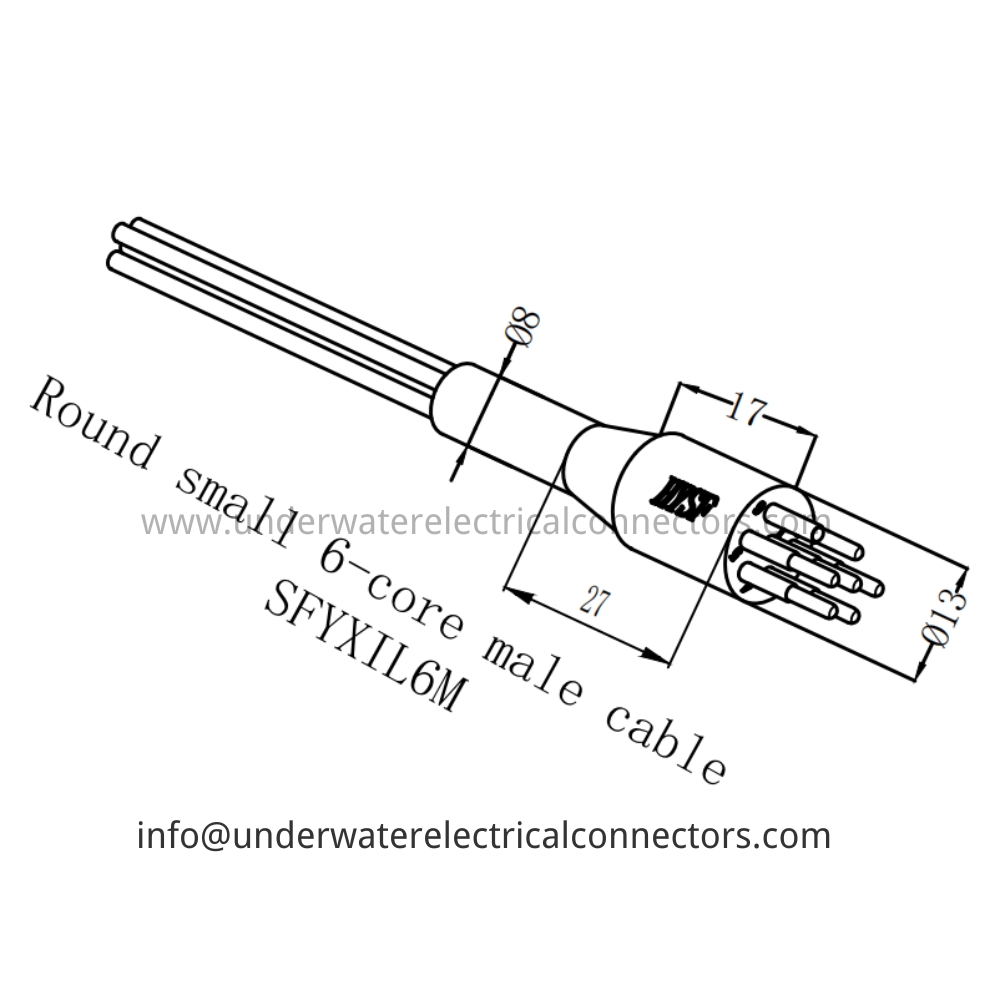

HYSF SFYXIL6M is an ultra-compact round 6-pin male inline cable connector with PU overmold. IP68 rated, 60 MPa tested, ideal for Gigabit Ethernet + dual power/sensor tethers in the most space-restricted micro-ROVs, miniature AUVs, ultra-thin umbilicals and deepsea inline splicing up to 6000 m.
The HYSF SFYXIL6M delivers 6 channels in the smallest possible round inline profile with tapered PU overmold, enabling seamless cable termination and splicing where space is extremely limited. Only 27 mm grip length with integrated strain relief.
Precision 316L stainless steel insert with gold-plated brass pins, fully encapsulated in black polyurethane. Pre-terminated with 6 × 24 AWG PTFE leads. Typical configuration: 1000BASE-T Gigabit Ethernet (4 pins) + 2 additional power/sensor lines.
The definitive choice for ultra-miniature ROV hybrid umbilicals, compact multi-sensor feeds, actuator control with Ethernet and deepsea hybrid cables requiring high-speed data plus extra channels in minimal cross-section. ISO9001-2015 certified with 100 MPa burst validation and 1000+ mating cycles under pressure.
Model: SFYXIL6M
Brand: HYSF
Type: Round Small 6-Core Male Inline Cable
Gender: Male
Pin Count: 6
Contact Material: Gold-plated Brass
Current Rating: 8A per Pin
Voltage Rating: 600V AC/DC
Housing Material: 316L Stainless Steel + PU Overmold
Sealing: Double O-Ring + Face Seal
Body Diameter: 13 mm
Grip Length: 27 mm
Cable: 6 × 24 AWG PTFE Leads
Overmold: Black Polyurethane (PU)
Locking: Threaded Sleeve
Waterproof Rating: IP68
Pressure Rating: 60 MPa (~6000 m)
Operating Temperature: -20°C to 80°C
Application: Gigabit Ethernet + Dual Power/Sensor Ultra-Miniature Tethers, Micro Multi-Sensor Chains, Compact Actuator + Ethernet Umbilicals, Deepsea Hybrid Inline Splicing
Certification: ISO9001-2015
Compatibility: SFYXB H6F Females
Place of Origin: Guangdong, China
