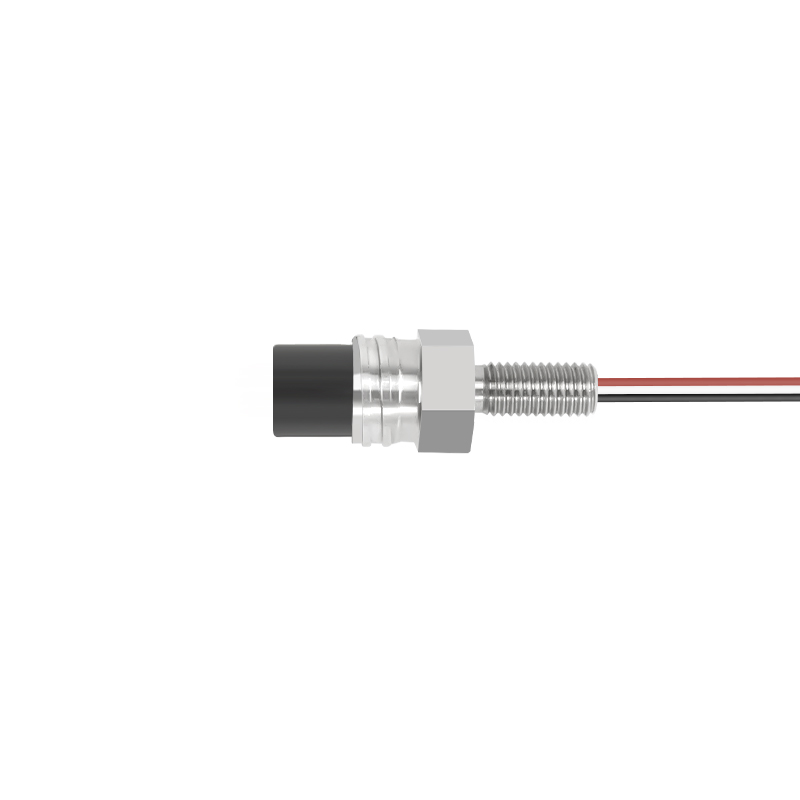

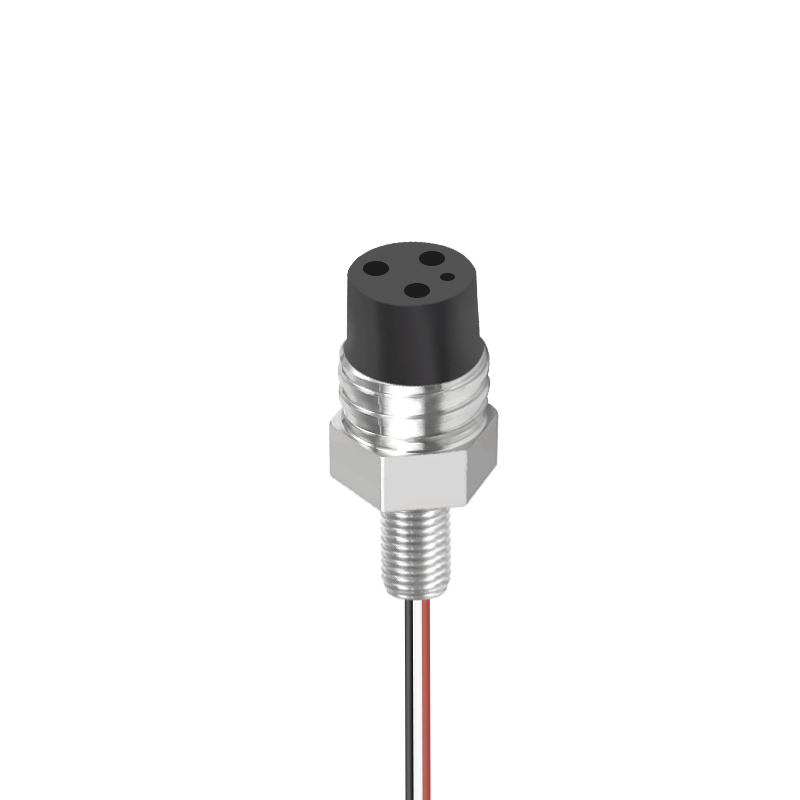

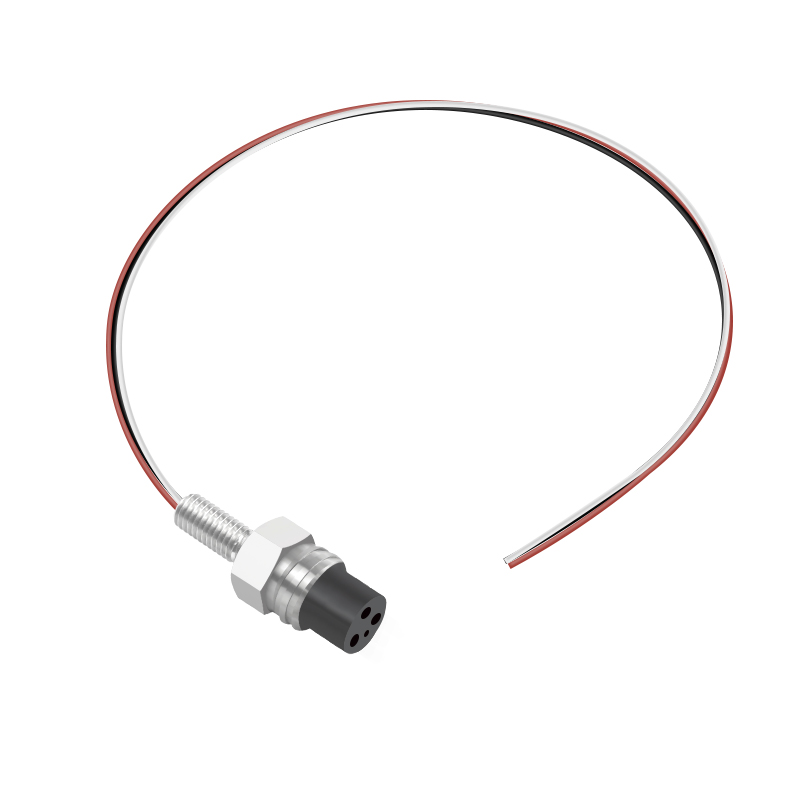

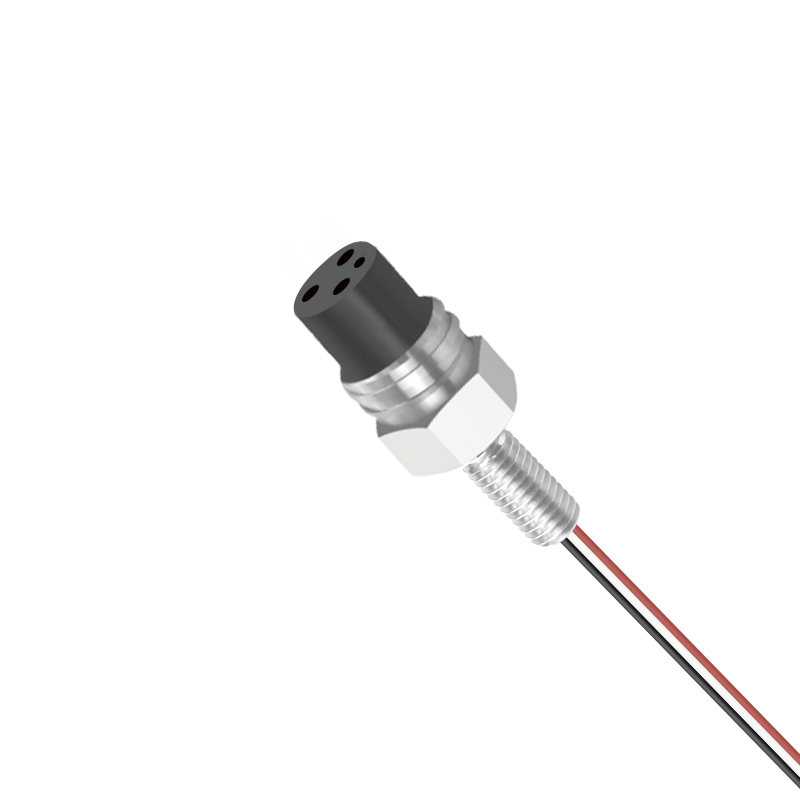

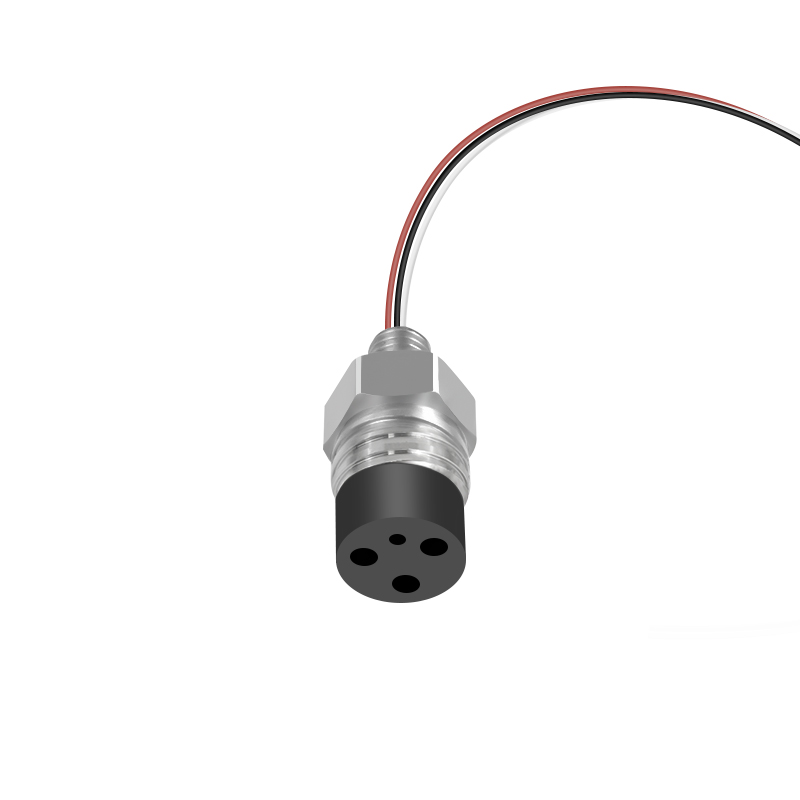

SMCBH3F is a 3-pin waterproof Seacon-compatible pluggable cable connector for subsea instruments and ROV robotics. Rated IP68 and pressure-tested to 10,000 PSI, it ensures reliable power and signal transmission in harsh underwater environments.
The SMCBH3F 3Pin Waterproof Underwater Cable Connector is designed for subsea robotic systems, exploration instruments, and marine signal transmission units. This Seacon-style pluggable connector ensures secure and stable underwater electrical connections in high-pressure environments. With an IP68 waterproof rating and tested to withstand up to 10,000 PSI (approx. 689 Bar), the connector is suitable for long-term deployment in deepwater operations. It features gold-plated brass contacts and stainless steel AISI 316 location pins to deliver excellent conductivity and corrosion resistance. SMCBH3F supports AC/DC interfaces and can be customized to fit your subsea application.
Brand: HYSF
Model Number: SMCBH3F
Type: Waterproof Seacon-Compatible Electric Plug Connector
Pins: 3 Pins
Waterproof Rating: IP68
Mated Pressure Rating: Up to 10,000 PSI / 689 Bar
Interface Type: AC/DC
Housing Material: Marine-grade Plastic or Optional Metal Alloys
Contact Material: Gold Plated Brass
Location Pin: Stainless Steel AISI 316
Gender: Male and Female
Certification: ISO9001-2015
Application Range: Underwater Robotics, Subsea Instruments, Marine Survey Equipment, ROV Systems, Sensor Interfaces
Custom Processing: Supported (Pin config, Housing type, Cable spec)
Place of Origin: China
