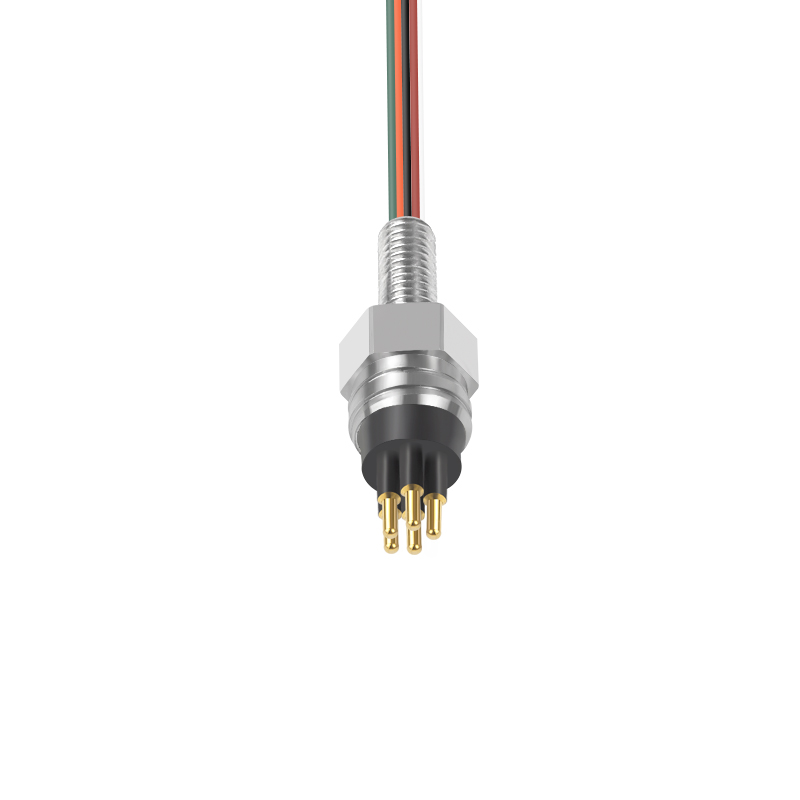

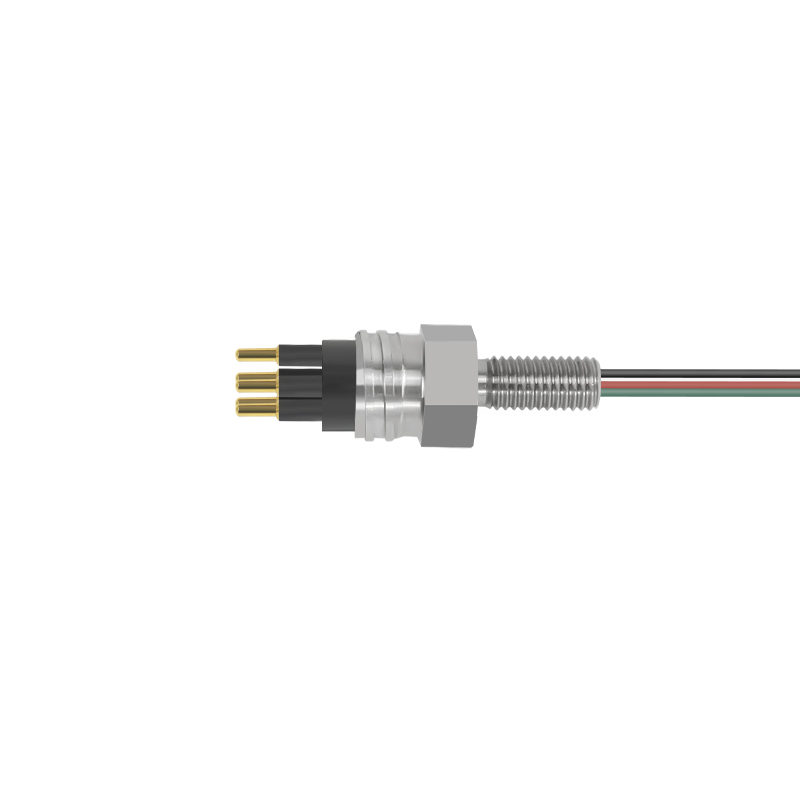

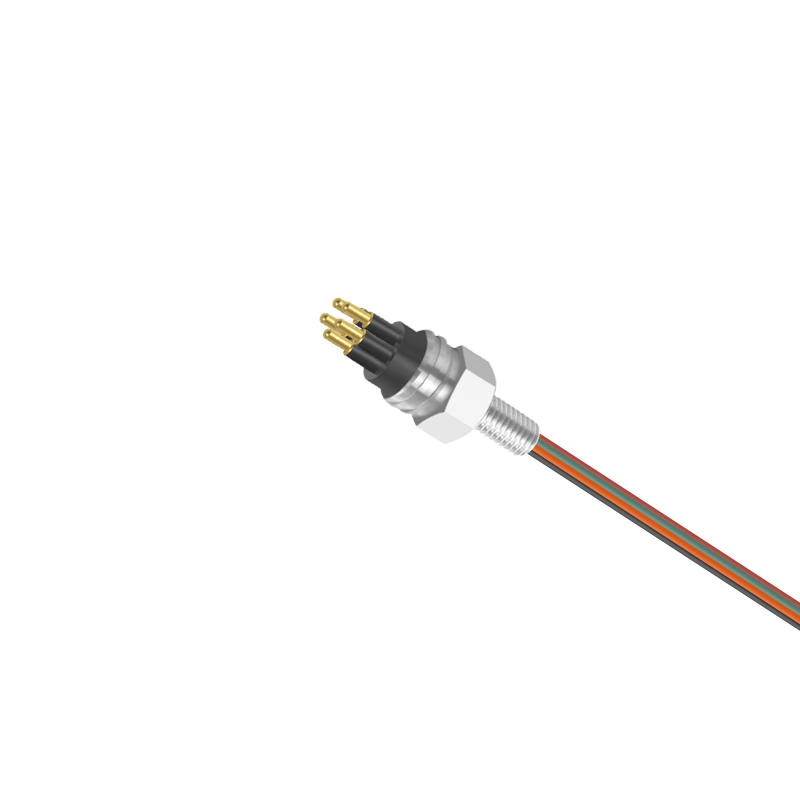

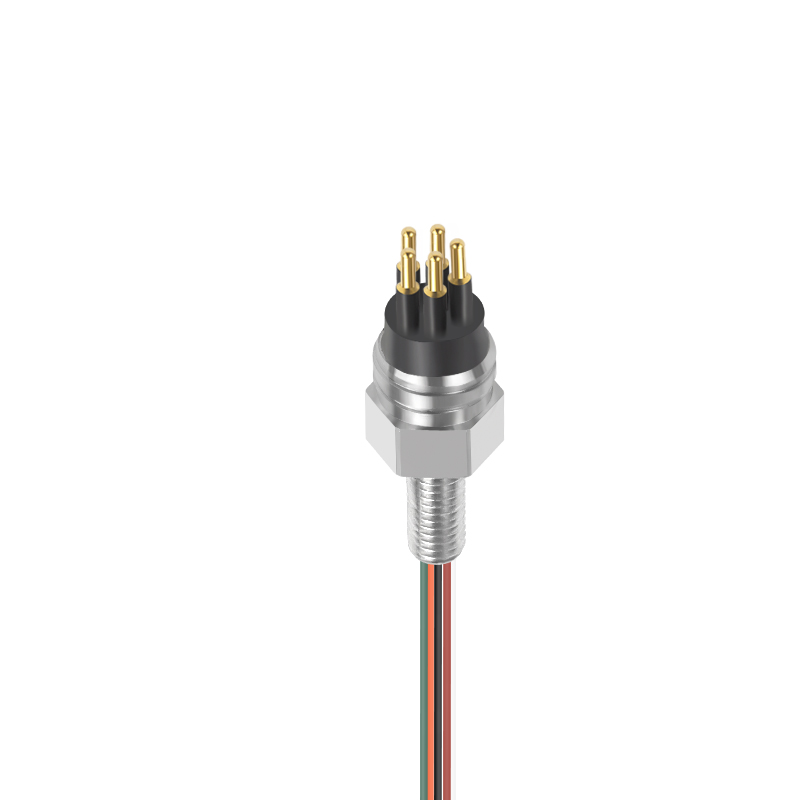

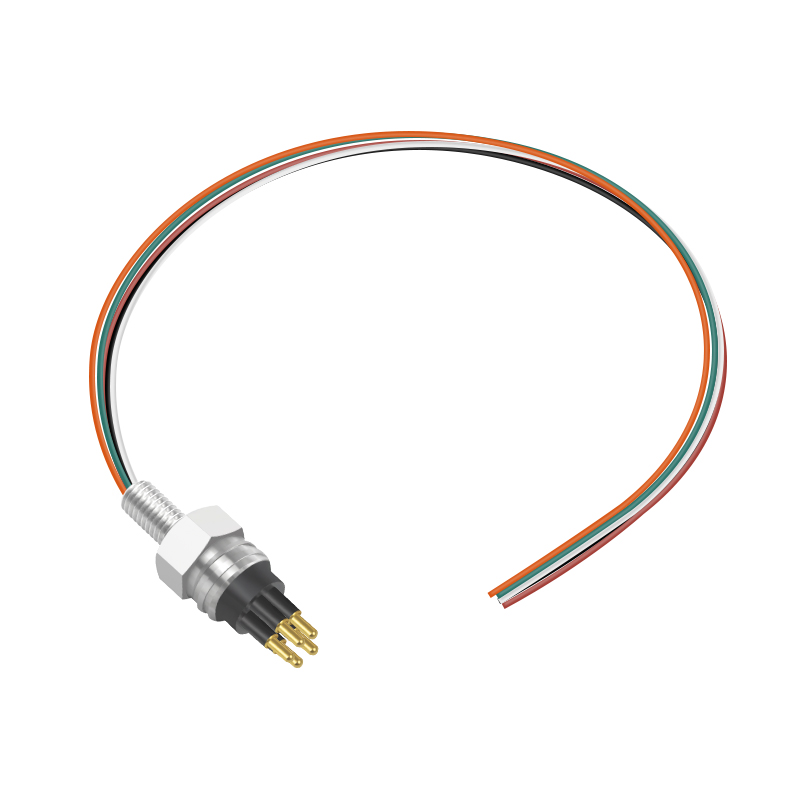

SMCBH5M is a 5-pin pluggable Subconn-style underwater electrical connector designed for subsea cameras and ocean seismic systems. It provides IP68 waterproof sealing and withstands up to 10,000 PSI, ideal for reliable deep-sea signal and power solutions.
The SMCBH5M 5Pin Waterproof Subconn-Compatible Underwater Connector offers reliable pluggable connectivity for subsea imaging, seismic exploration, and marine instruments. Designed with Subconn-compatible interface, this Micro Circular connector supports AC/DC electrical connections for underwater power and data transmission. Rated IP68 and tested to withstand pressures up to 10,000 PSI (approx. 689 Bar), it's suitable for long-term use in harsh subsea conditions. The gold-plated brass contacts and stainless steel AISI 316 locating pins ensure high corrosion resistance and electrical performance. Ideal for subsea cameras, seismic systems, and underwater monitoring. Fully customizable configurations are available.
Brand: HYSF
Model Number: SMCBH5M
Type: Pluggable Waterproof Subconn-Compatible Connector
Pins: 5 Pins
Shape: Micro Circular Series
Waterproof Rating: IP68
Mated Pressure Rating: Up to 10,000 PSI / 689 Bar
Interface Type: AC/DC
Housing Material: Marine-grade Plastic or Optional Metal Alloy
Contact Material: Gold Plated Brass
Location Pin: Stainless Steel AISI 316
Gender: Male and Female
Certification: ISO9001-2015
Application Range: Subsea Cameras, Ocean Seismic Systems, ROVs, Underwater Sensors, Marine Monitoring Equipment
Custom Processing: Supported (Pin configuration, Housing materials, Cable design)
Place of Origin: China
