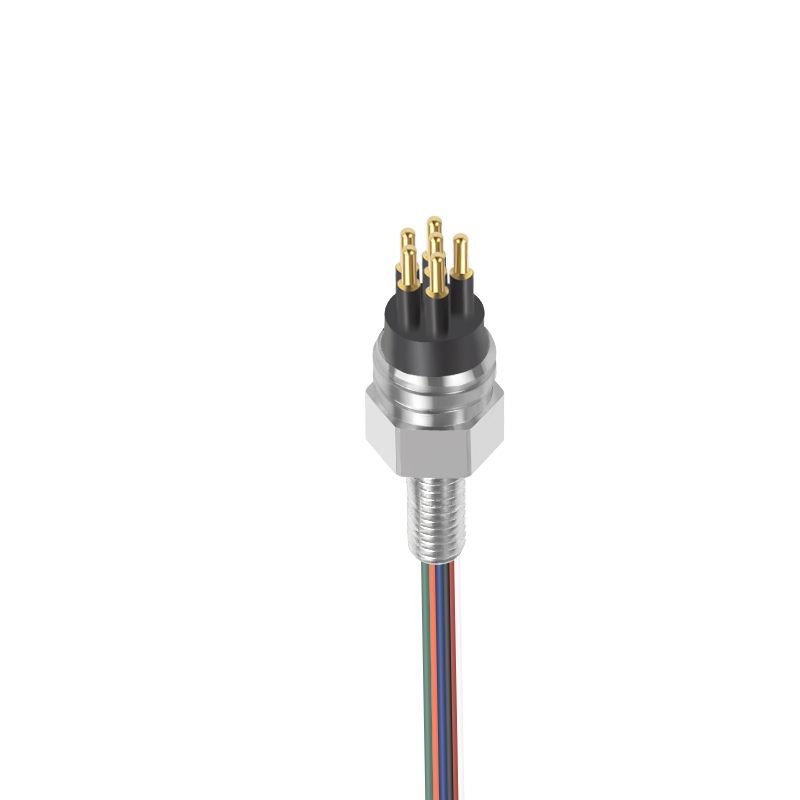

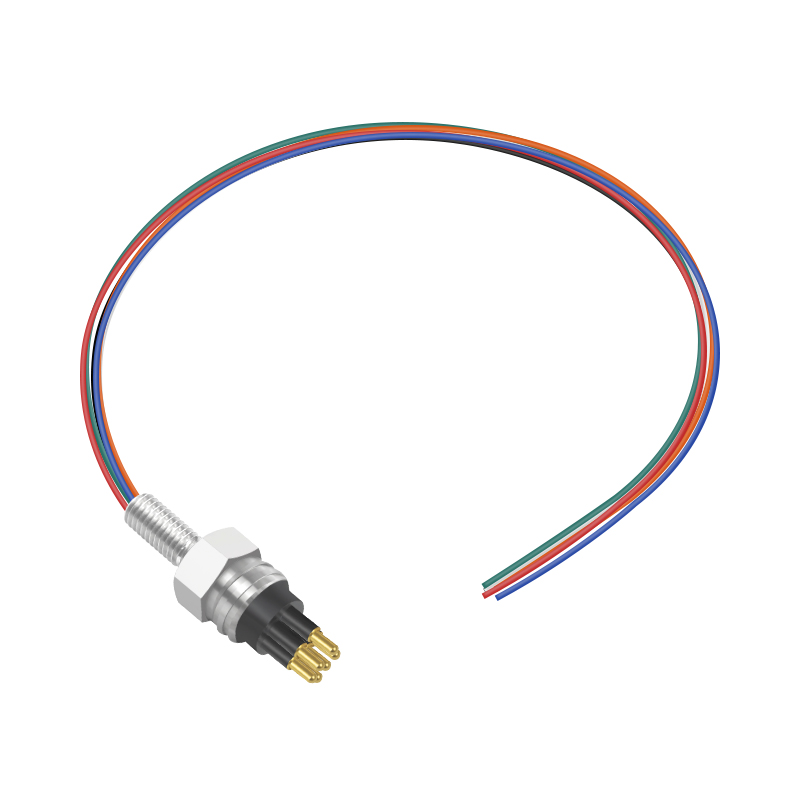

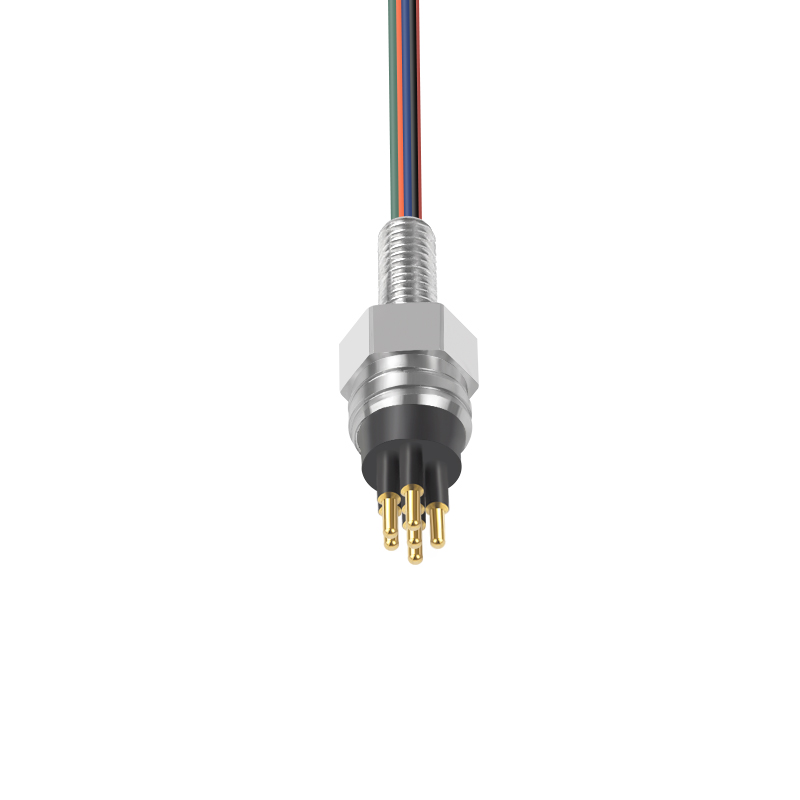

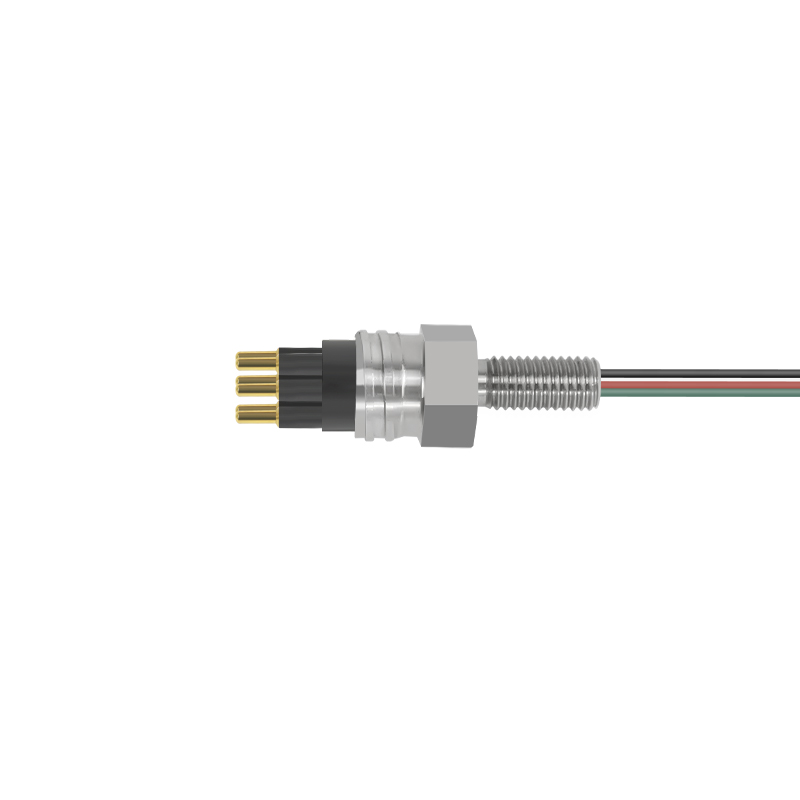

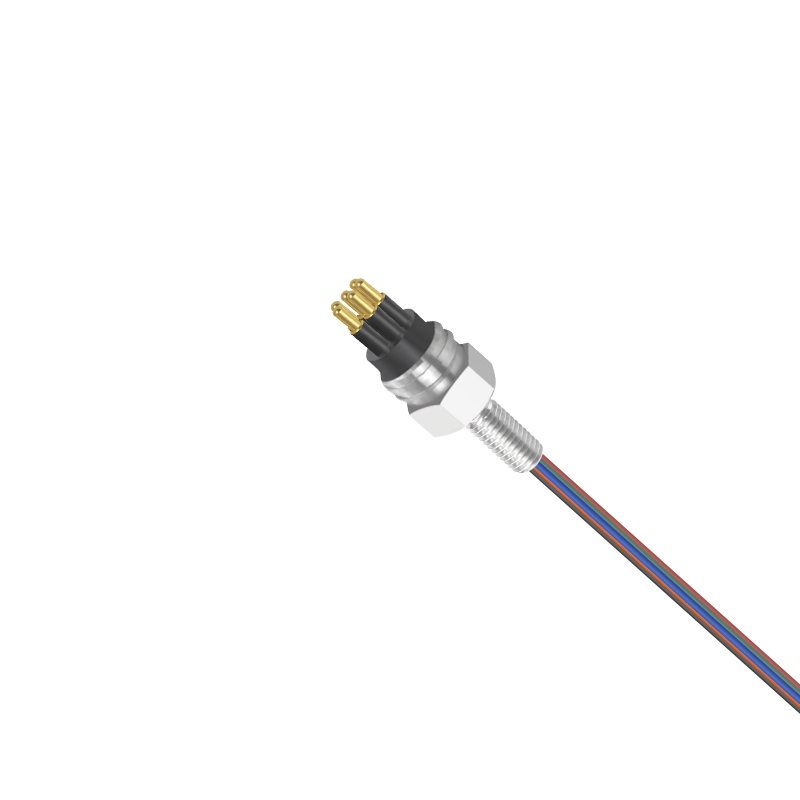

SMCBH6M is a 6-pin waterproof bulkhead connector with dummy plug socket, designed for subsea robots and underwater power connections. IP68 rated and tested to 10,000 PSI, this pluggable connector ensures reliable wet-mate linking in marine environments.
The SMCBH6M 6Pin Pluggable Subsea Connector is part of the Micro Circular Series designed for underwater power transmission in ROVs, AUVs, and marine robots. It features a wet-mate configuration with bulkhead installation and a dummy plug socket for port protection when unplugged. This IP68-rated connector is pressure-tested up to 10,000 PSI (approx. 689 Bar) and provides superior electrical performance in extreme underwater conditions. Equipped with gold-plated brass contacts and stainless steel AISI 316 location pins, it offers excellent corrosion resistance and signal integrity. Ideal for use in oceanographic research equipment, subsea navigation, and robotics, and available with full customization options.
Brand: HYSF
Model Number: SMCBH6M
Type: Bulkhead Pluggable Waterproof Connector with Dummy Plug
Pins: 6 Pins
Shape: Micro Circular Series
Waterproof Rating: IP68
Mated Pressure Rating: Up to 10,000 PSI / 689 Bar
Interface Type: AC/DC
Housing Material: Marine-grade Plastic or Optional Metal Alloy
Contact Material: Gold Plated Brass
Location Pin: Stainless Steel AISI 316
Gender: Male and Female
Certification: ISO9001-2015
Application Range: Subsea Robots, Underwater Power Systems, ROVs, AUVs, Oceanographic Equipment, Dummy Plug Port Protection
Custom Processing: Supported (Pin configuration, Cable length, Housing material)
Place of Origin: China
