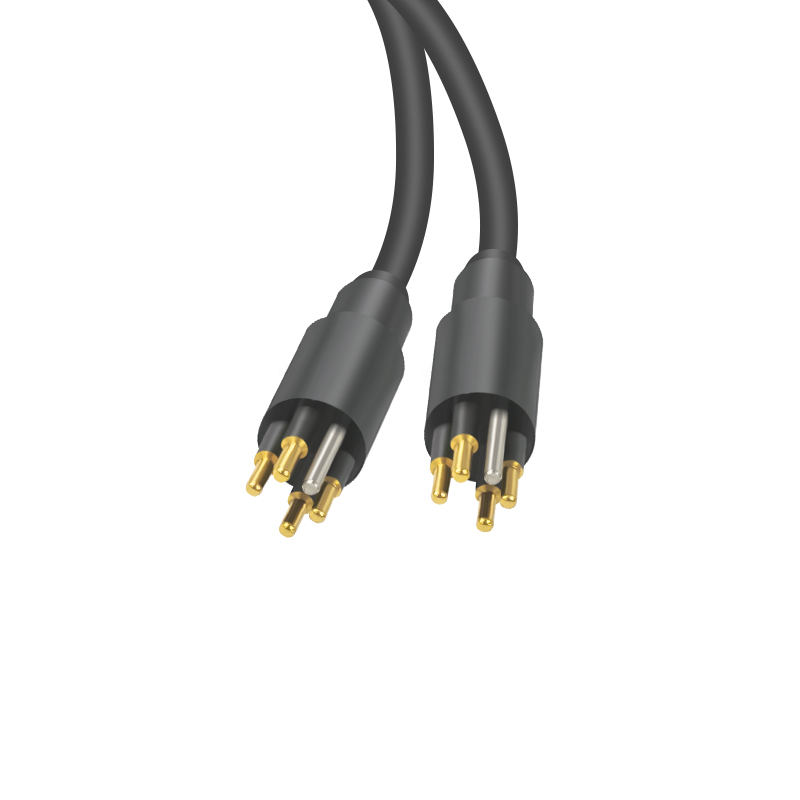

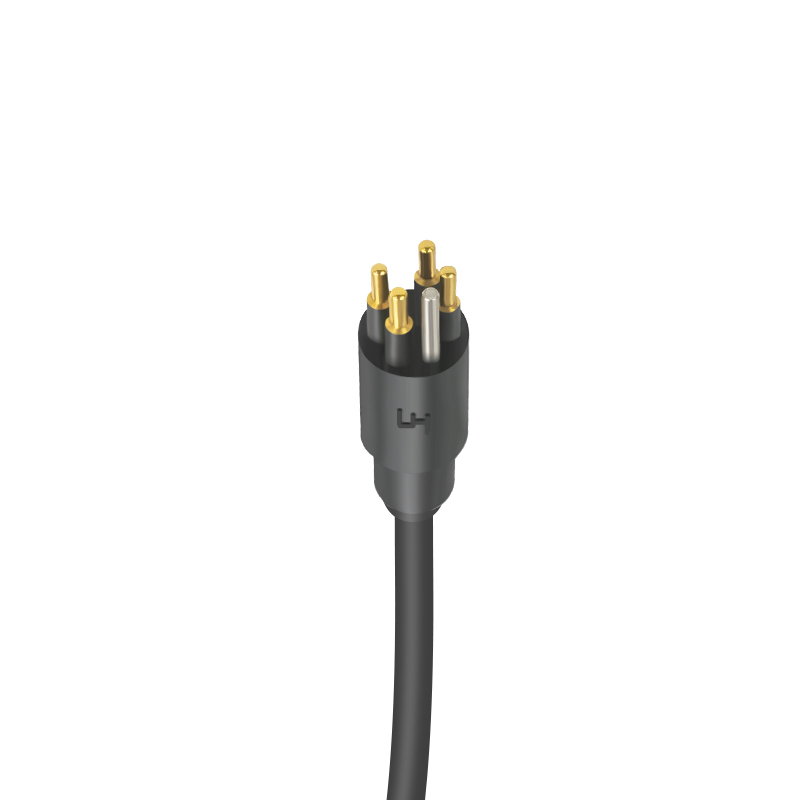

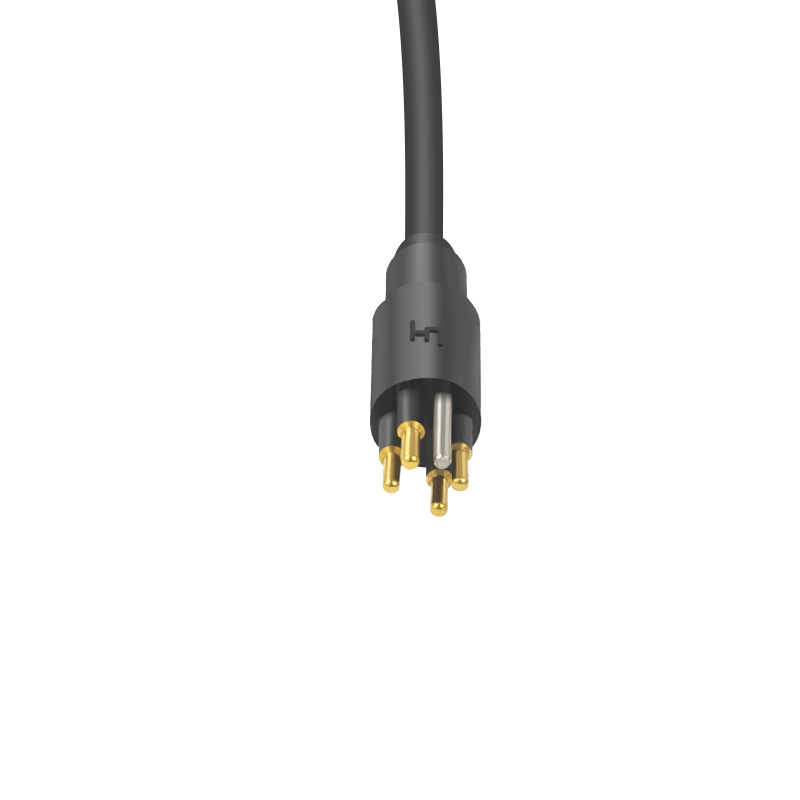

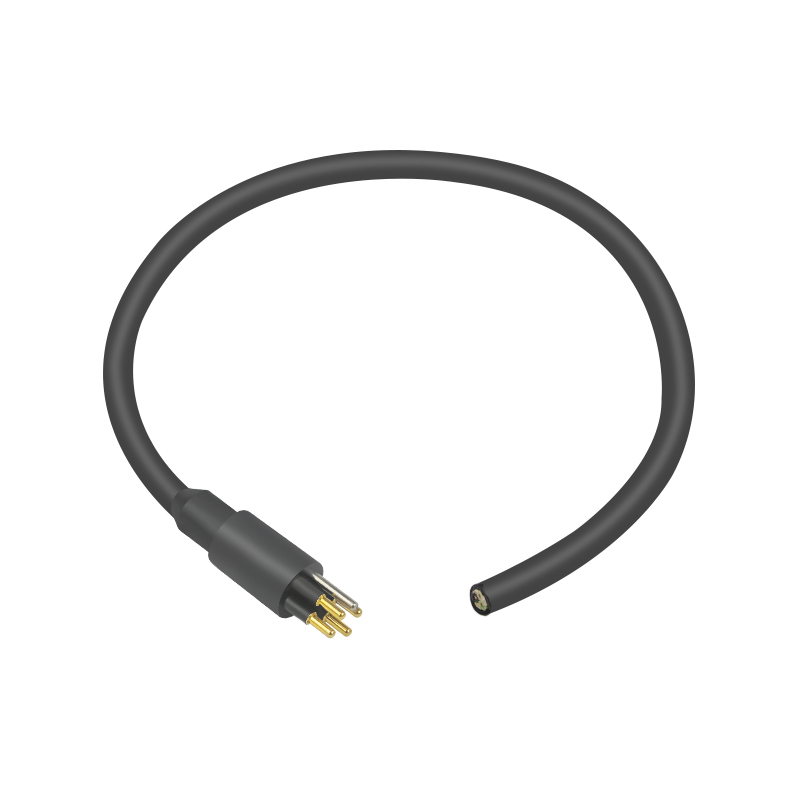

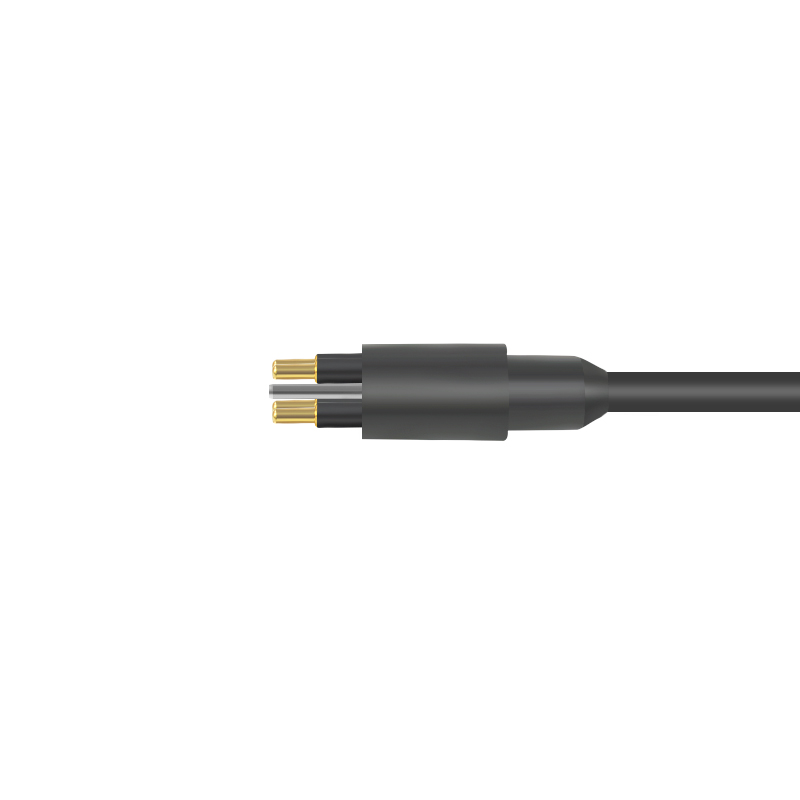

SMCIL4M is a 4-pin Subconn-style watertight underwater connector designed for power cable terminals in oceanographic and subsea systems. IP68 rated and pressure tested to 10,000 PSI, this connector ensures secure and reliable electrical connections in marine environments.
The SMCIL4M 4Pin Power Cable Underwater Connector provides a rugged solution for oceanographic, subsea, and marine monitoring applications requiring dependable watertight electrical connections. Designed in a Subconn-compatible Micro Circular format, it supports AC/DC signal and power transmission. With an IP68 waterproof rating and pressure endurance up to 10,000 PSI (approx. 689 Bar), the SMCIL4M is well-suited for deployment in harsh underwater conditions. Engineered with gold-plated brass contacts and corrosion-resistant AISI 316 stainless steel alignment pins, this connector is built for long-term operation in saltwater environments. Custom layouts are supported for tailored integration with underwater systems.
Brand: HYSF
Model Number: SMCIL4M
Type: Subconn-Style Marine Waterproof Connector
Pins: 4 Pins
Shape: Micro Circular Series
Waterproof Rating: IP68
Mated Pressure Rating: Up to 10,000 PSI / 689 Bar
Interface Type: AC/DC
Housing Material: Marine-grade Plastic or Optional Alloy
Contact Material: Gold Plated Brass
Location Pin: Stainless Steel AISI 316
Gender: Male
Certification: ISO9001-2015
Application Range: Oceanographic Systems, Subsea Cameras, Underwater Sensors, ROVs, Marine Instrumentation
Custom Processing: Supported (Pin layout, Cable integration, Housing configuration)
Place of Origin: China
