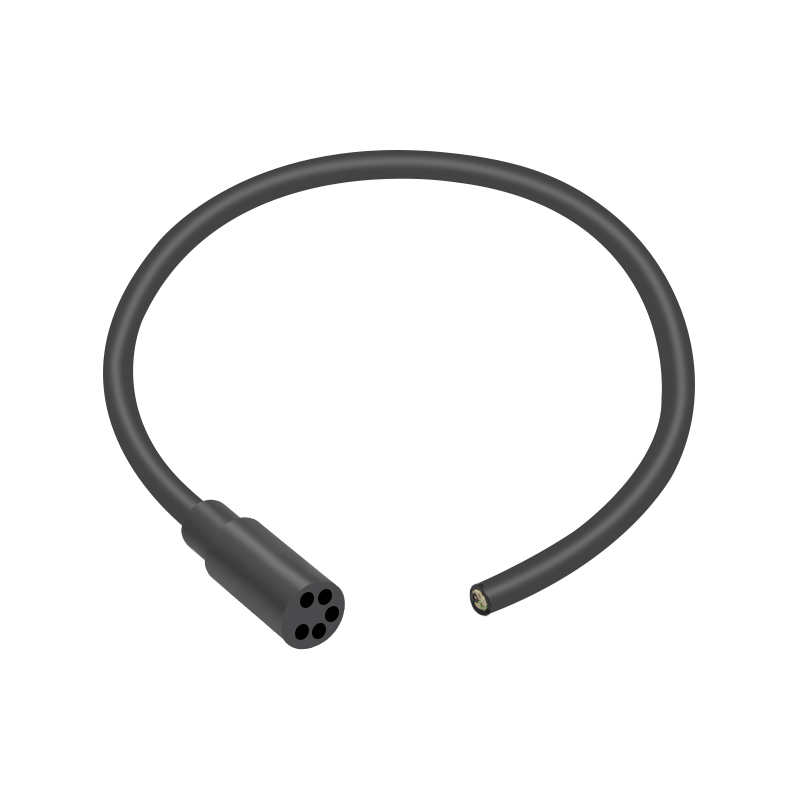

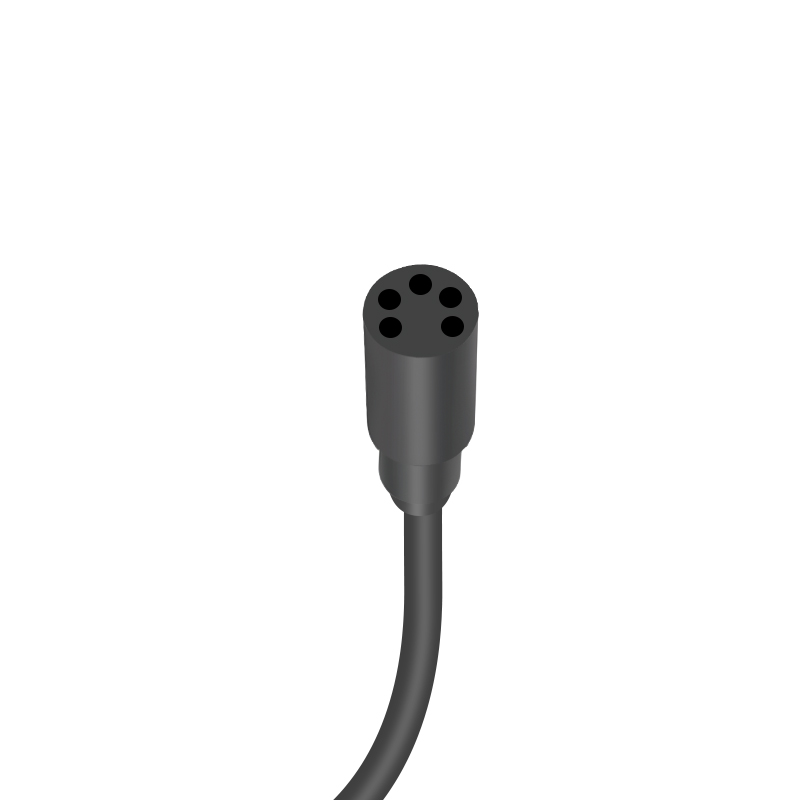

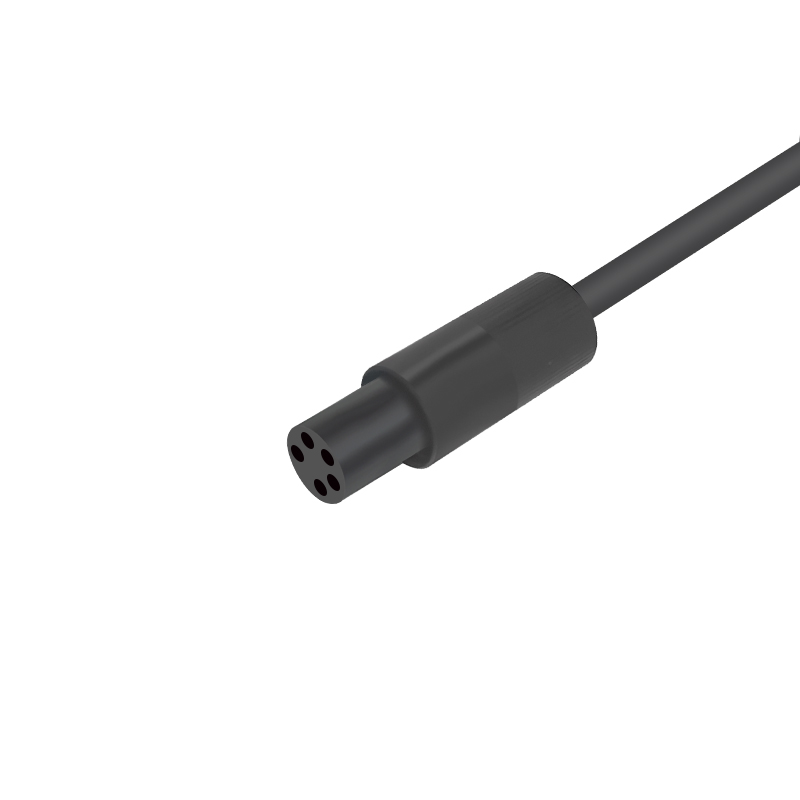

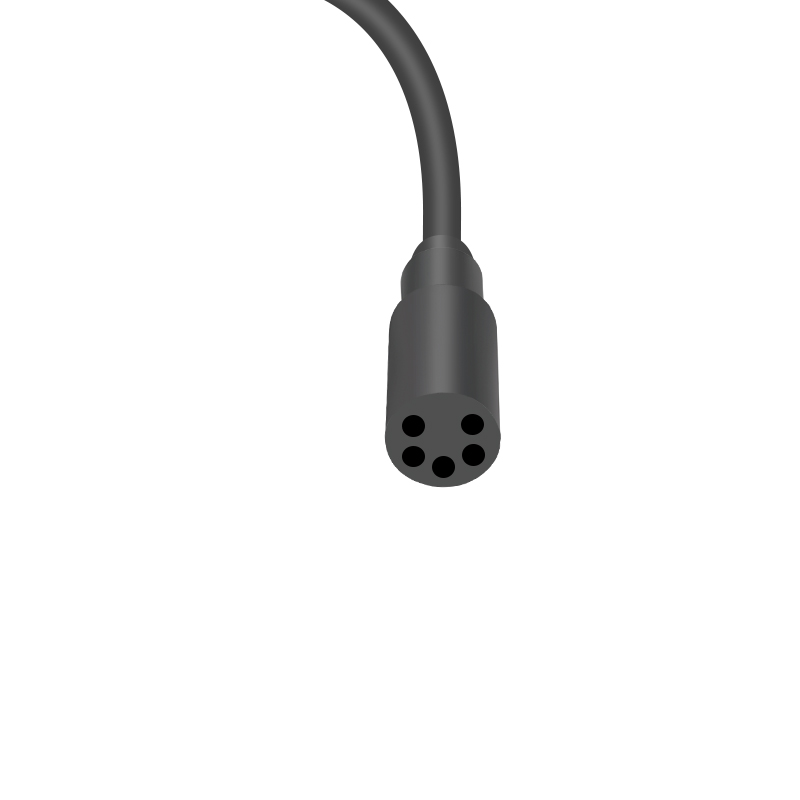

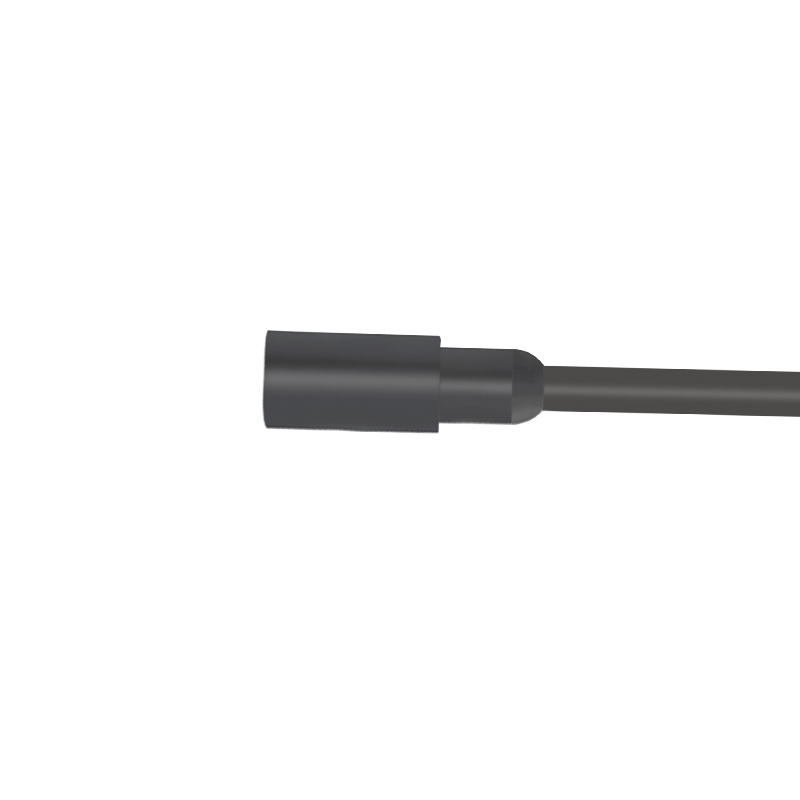

SMCIL5F is a 5-pin female underwater pluggable cable connector designed for marine electric power systems and subsea ROV applications. With IP68 protection and pressure resistance up to 10,000 PSI, it ensures durable, watertight performance in demanding underwater environments.
The SMCIL5F 5Pin Female Waterproof Marine Connector is optimized for electric power and control applications in subsea robotics and marine systems. Engineered for ROVs, AUVs, and underwater sensor arrays, this pluggable connector provides secure AC/DC power transfer across underwater environments. Built to withstand high-pressure conditions, it is IP68-rated and tested up to 10,000 PSI (approx. 689 Bar). Stainless steel AISI 316 location pins and gold-plated brass contacts offer superior corrosion resistance and low contact resistance. Ideal for deployments in oceanographic missions and offshore energy platforms, SMCIL5F is available in customizable configurations for tailored integration.
Brand: HYSF
Model Number: SMCIL5F
Type: Female Marine Underwater Pluggable Connector
Pins: 5 Pins
Shape: Micro Circular Series
Waterproof Rating: IP68
Mated Pressure Rating: Up to 10,000 PSI / 689 Bar
Interface Type: AC/DC
Housing Material: Marine-grade Plastic or Optional Alloy
Contact Material: Gold Plated Brass
Location Pin: Stainless Steel AISI 316
Gender: Female
Certification: ISO9001-2015
Application Range: Subsea ROVs, Marine Power Connectors, Oceanographic Instruments, AUVs, Underwater Sensors
Custom Processing: Supported (Pin configuration, Housing material, Cable length)
Place of Origin: China
