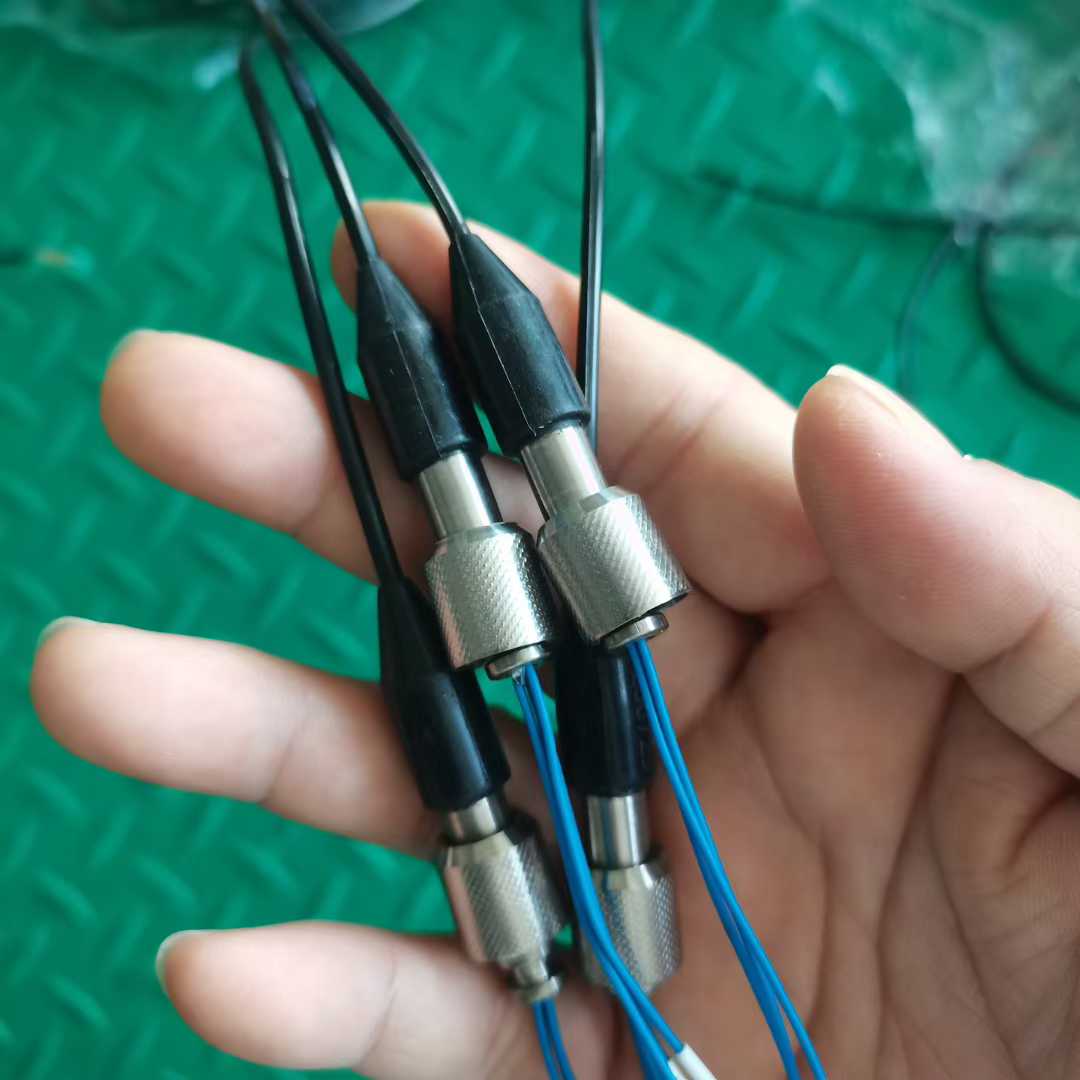

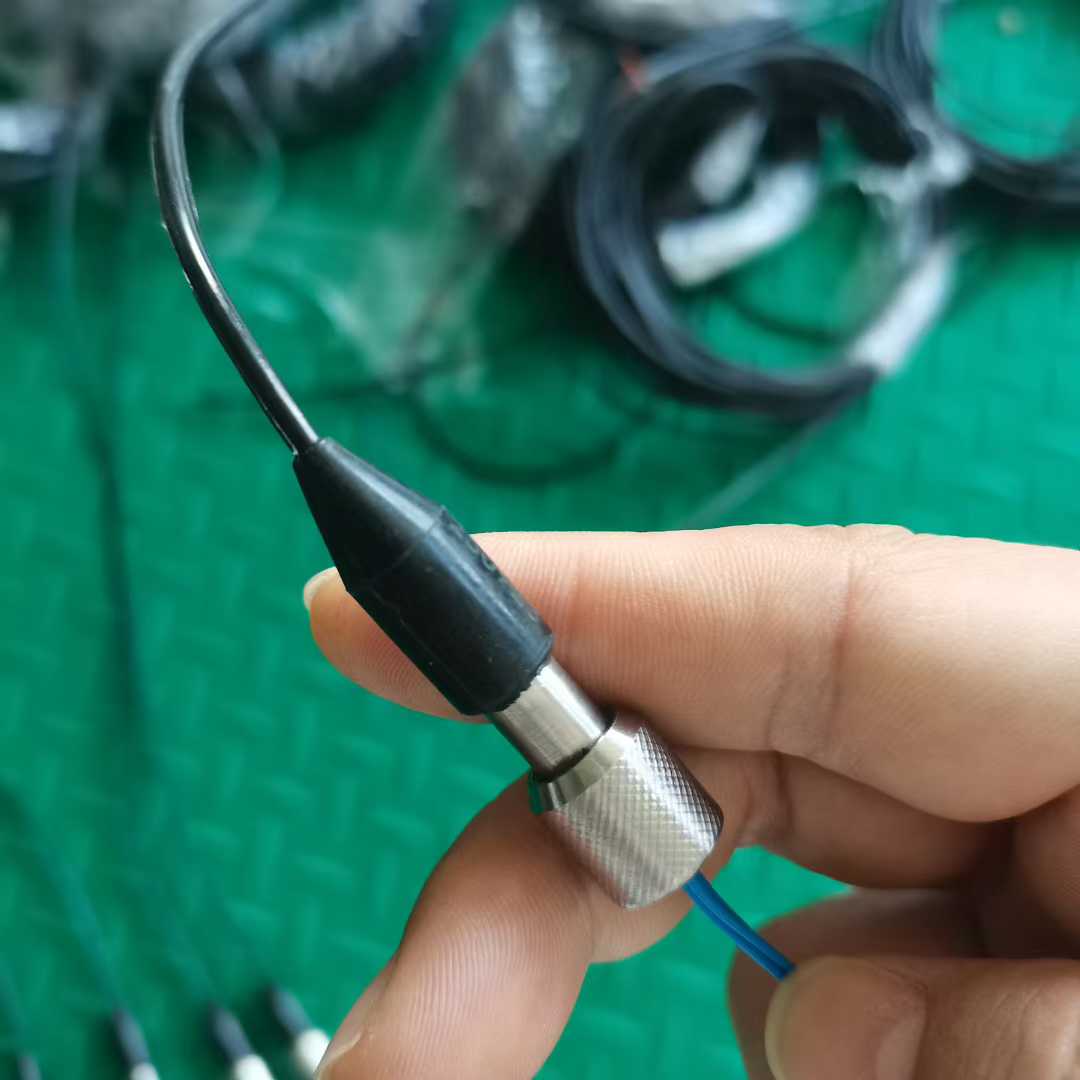

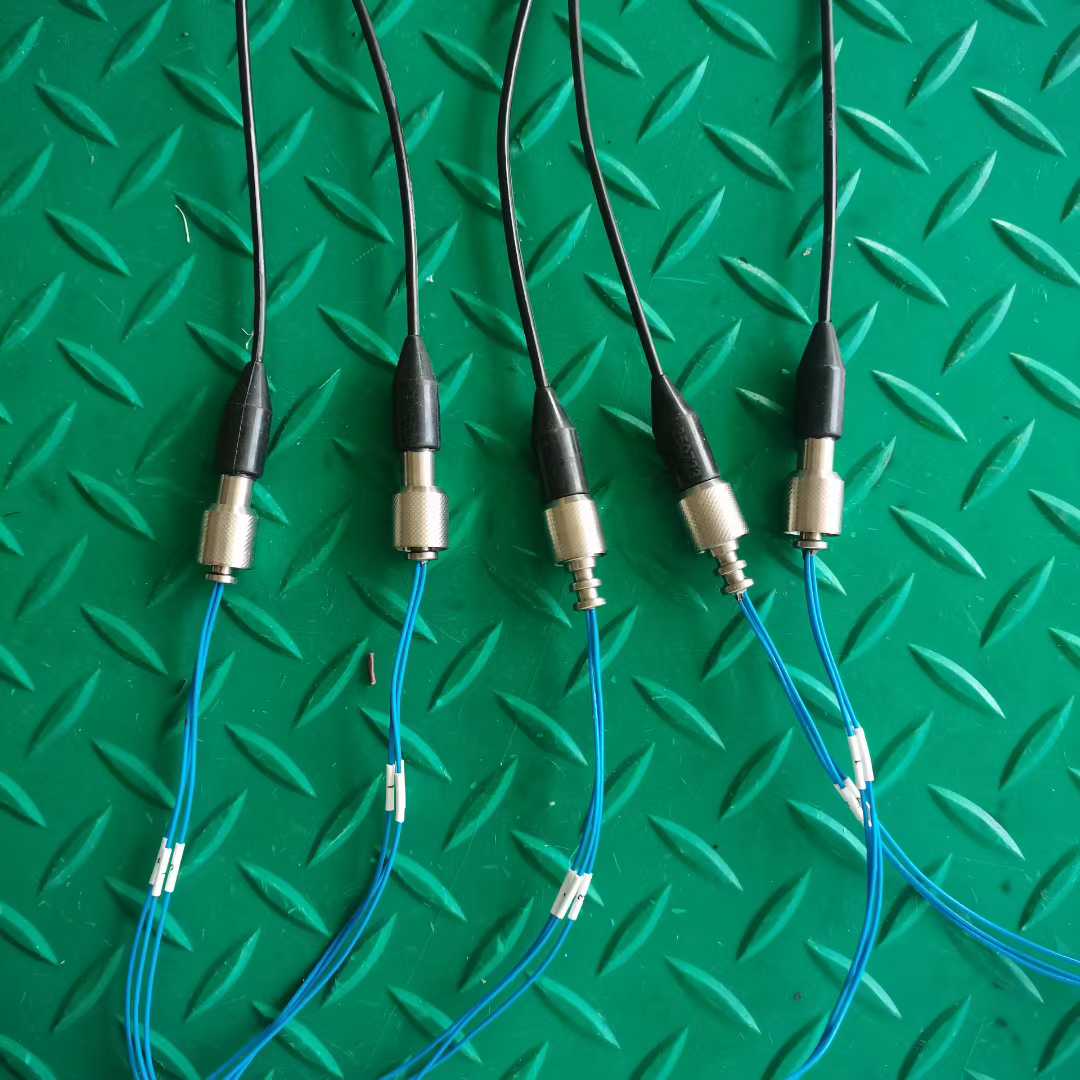

HYSF TI-PENETRATOR Custom Titanium Alloy Waterproof Bulkhead Penetrator (2–4 Pin, 60 MPa)

Product Description

The HYSF TI-PENETRATOR is a successfully customized **titanium alloy waterproof bulkhead penetrator** precision-machined from **Grade 5 (Ti-6Al-4V) titanium** for ultimate strength-to-weight ratio and zero corrosion in saltwater. Available in **2-pin, 3-pin, or 4-pin** configurations with gold-plated contacts, it enables reliable power and signal feed-through in ultra-deep subsea systems—perfect for titanium-housed ROV thruster pods, AUV battery compartments, and deepsea scientific instruments.

Each penetrator features **glass-to-metal sealing** or high-pressure epoxy potting, with **double O-ring face seals** and **threaded locking nut** for secure panel mounting. Rated to **60 MPa (8702 PSI / ~6000 m depth)**, IP68 sealed, and helium leak-tested to <1×10⁻⁹ atm·cc/s. Blue PTFE-insulated flying leads are pre-stripped and labeled for direct PCB termination.

This lightweight titanium solution was developed for weight-critical and corrosion-proof applications. HYSF offers full customization in pin count, current rating, thread size, and lead length. ISO9001-2015 certified and proven in 6000m+ titanium deployments.

Product Parameter

Model: TI-PENETRATOR

Brand: HYSF

Type: Custom Titanium Alloy Waterproof Bulkhead Penetrator

Material: Grade 5 Titanium (Ti-6Al-4V)

Pin Count: 2–4 Pins (Gold-Plated Copper)

Current Rating: Up to 15A per Pin (Custom)

Voltage Rating: 600V AC/DC

Sealing: Glass-to-Metal or Epoxy + Double O-Ring

Mounting: M12×1 Thread with Lock Nut

Leads: Blue PTFE-Insulated, Pre-Stripped & Labeled

Pressure Rating: 60 MPa (8702 PSI / ~6000 m)

Waterproof Rating: IP68

Leak Rate: < 1×10⁻⁹ atm·cc/s He

Operating Temperature: -40°C to 100°C

Weight: ~15g (Air), ~8g (Water)

Application: Titanium ROV Housings, AUV Battery Pods, Deepsea Sensors, Subsea Titanium Junctions

Certification: ISO9001-2015

Customization: Pin layout, current, thread size, lead length/color, dummy plug

Compatibility: M12 Panel Cutout, Optional Dummy Cap

Place of Origin: Guangdong, China
