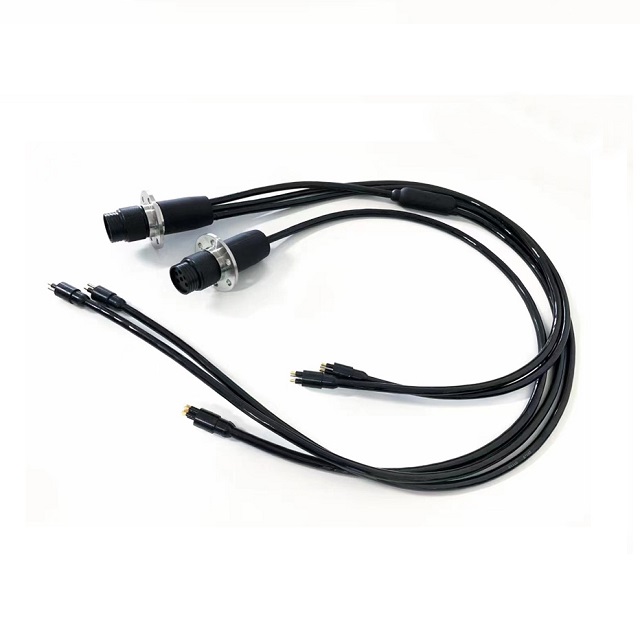

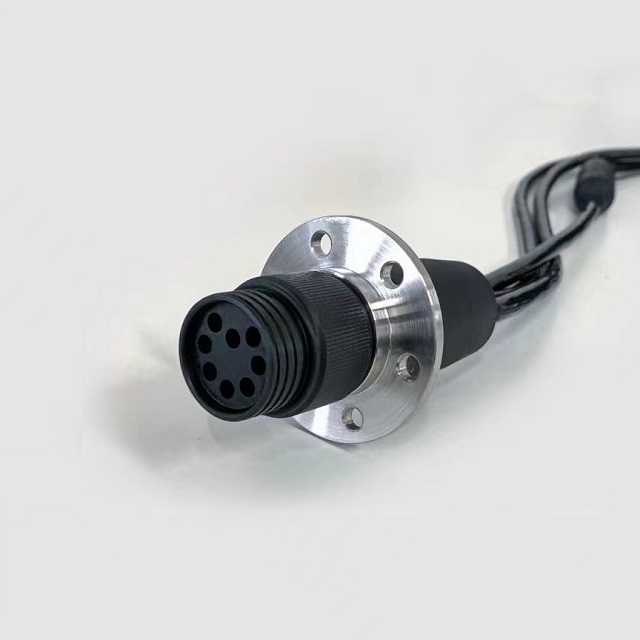

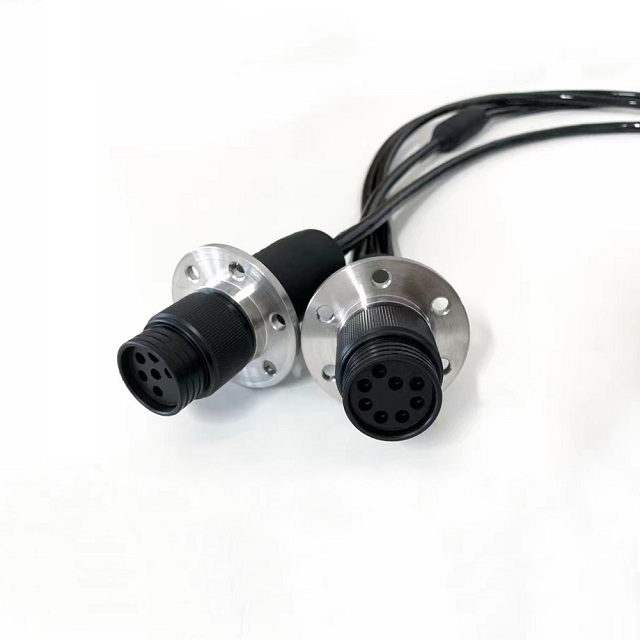

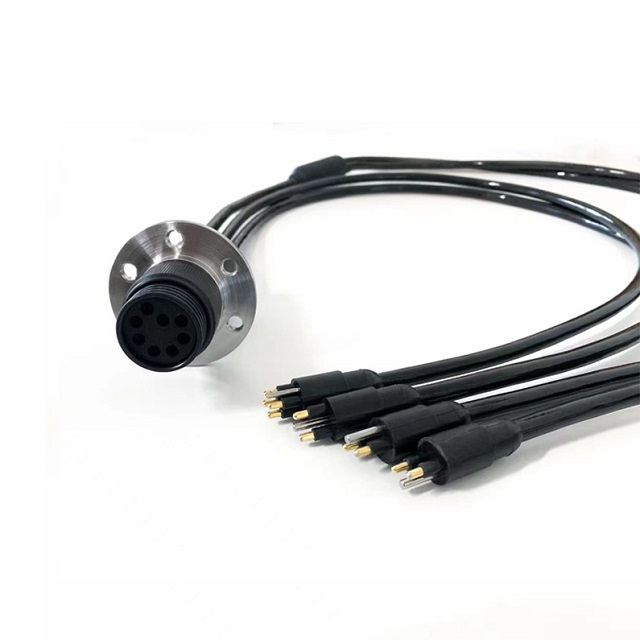

UC 1053 8-pin Subconn G2-style IP68 marine connector designed for deep sea ROVs and subsea equipment. Stainless steel housing, neoprene sealing, and 70MPa pressure rating support operations up to 7000m depth.
The UC 1053 8Pin Underwater Connector is a robust Subconn G2-style subsea connector designed for marine power and signal transmission in ROVs, deep sea robots, and underwater systems. With IP68 watertight sealing, a 316 stainless steel shell, and a neoprene cable tail, it withstands pressure up to 70MPa and supports deployment at depths reaching 7000 meters. Gold-plated brass contacts housed in PEEK provide excellent conductivity and corrosion resistance, while the 8-pin configuration allows for multi-channel power or data applications. Ideal for harsh subsea environments where secure and durable marine connectivity is critical.
Brand: HYSF
Model Number: UC 1053
Type: Subconn G2-Style Bulkhead Underwater Connector
Application: Power, Subsea Equipment, ROVs, Deep Sea Robotics
Pins: 8 Pins
Working Voltage: 300–600V DC
Withstand Pressure: 70MPa
Shell Material: 316 Stainless Steel
Outlet Tail Conductor: Neoprene
Ferrule Pin Material: PEEK + Brass Gold Plated
Waterproof Rating: IP68
Working Depth: Up to 7000 meters
Working Environment: -40℃ ~ 80℃
Gender: Male & Female
Place of Origin: Shandong, China
Certification: TUV, CE, CCC
MOQ: 1 Set
