UC 1078 Subconn-style IP68 waterproof coaxial RF connector designed for ROVs and underwater robots. Supports HF50CXDCF/HF50CXDCM interfaces with high insulation resistance and 6000m depth reliability.

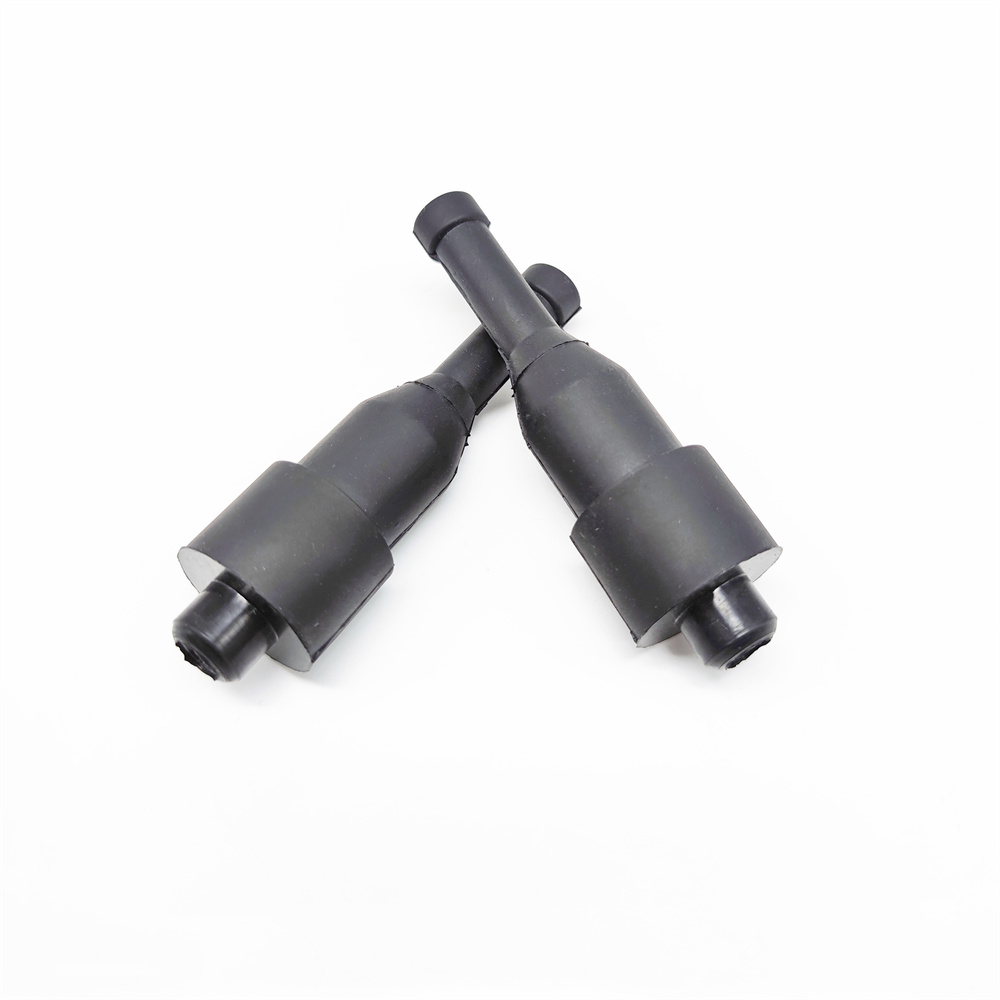

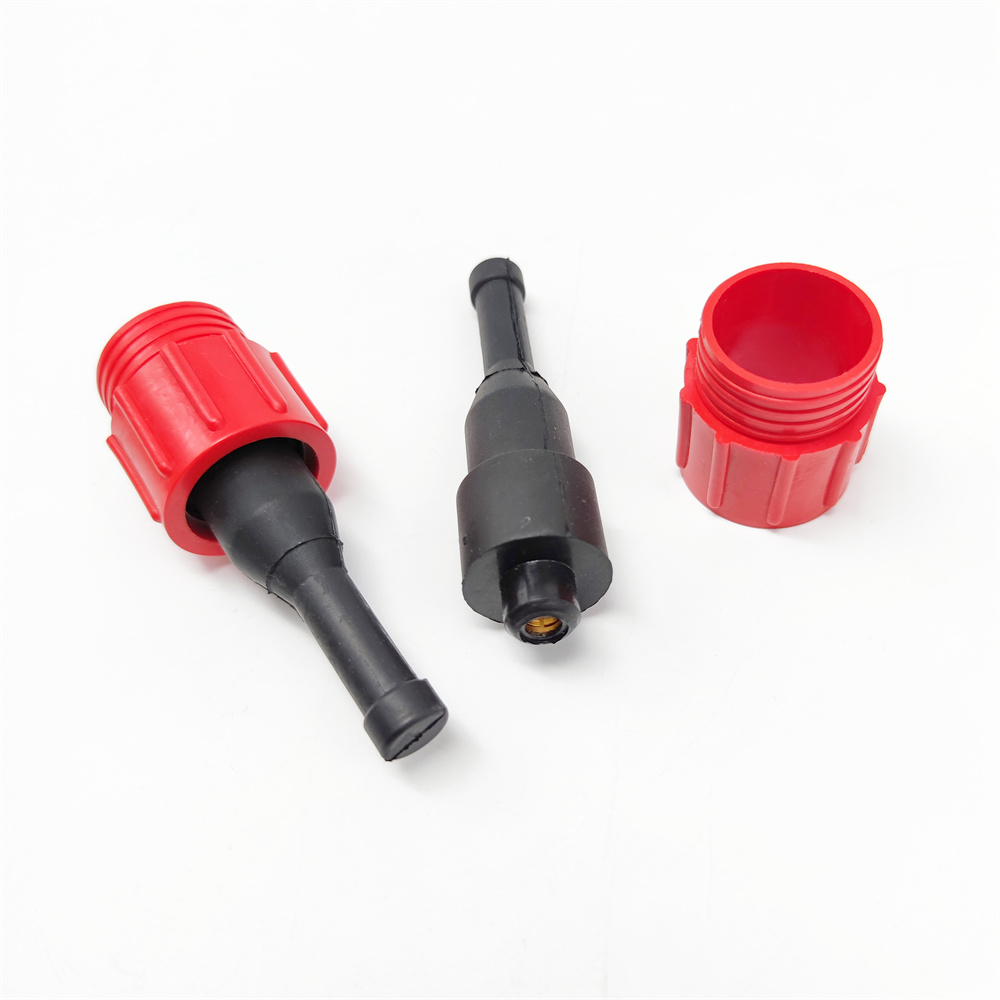

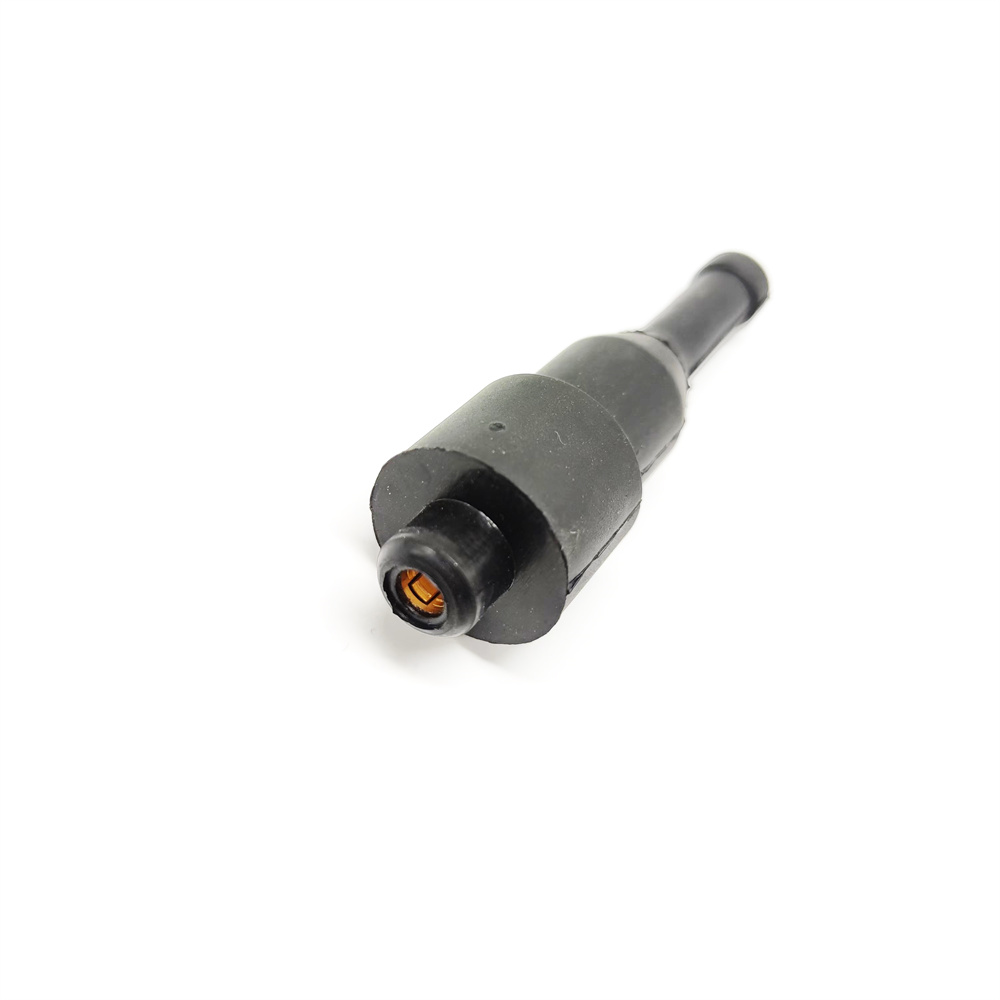

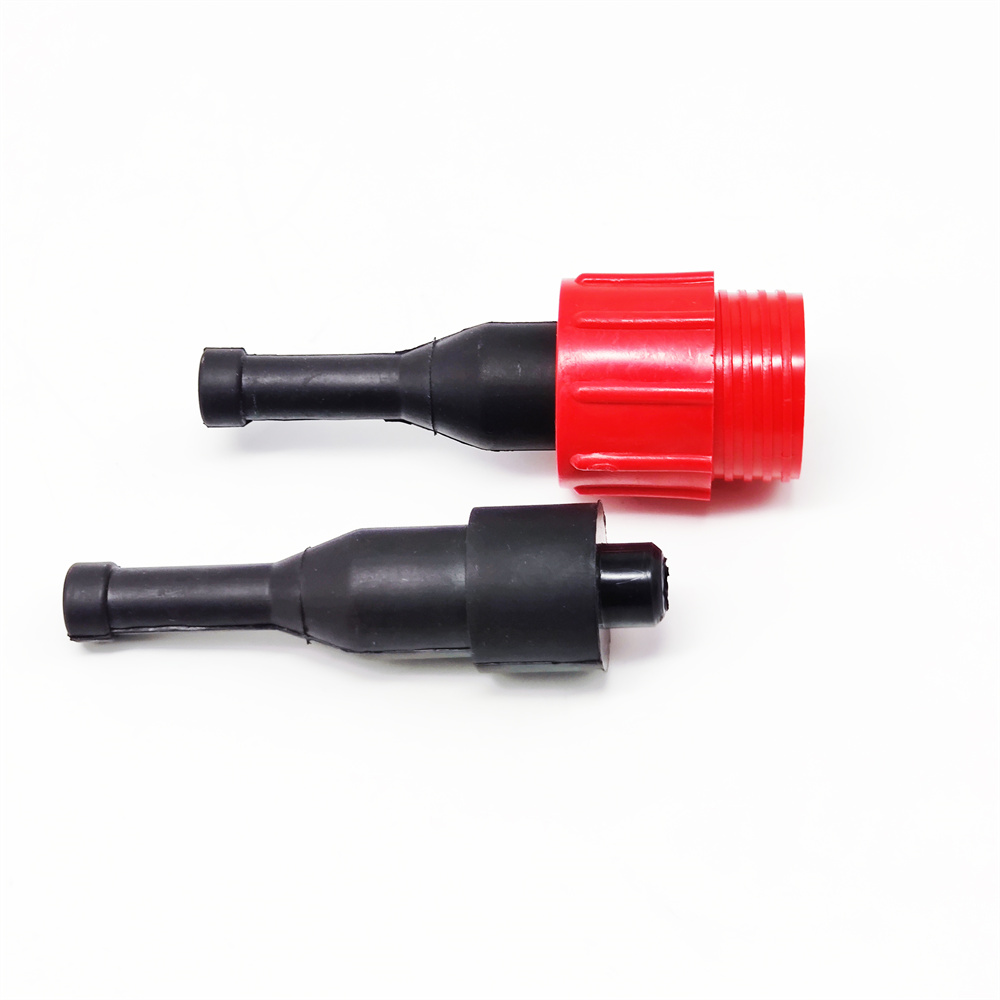

The UC 1078 Coaxial Underwater RF Connector is built for ROVs, underwater robots, and subsea RF applications. Designed with a Subconn-style structure and IP68 waterproof protection, it supports reliable signal performance at depths up to 6000 meters. Compatible with HF50CXDCF and HF50CXDCM coaxial interfaces, the connector features a rugged housing crafted from stainless steel and rubber for excellent durability and corrosion resistance. With insulation resistance over 200mΩ, contact resistance under 0.01Ω, and a mating cycle over 500 times, the UC 1078 is ideal for repeated deployments in harsh marine environments requiring high-frequency signal integrity.
Brand: HYSF
Model Number: UC 1078
Type: Subconn-Style Coaxial Underwater RF Connector
Application: ROVs, Underwater Robots, Subsea High-Frequency RF Systems

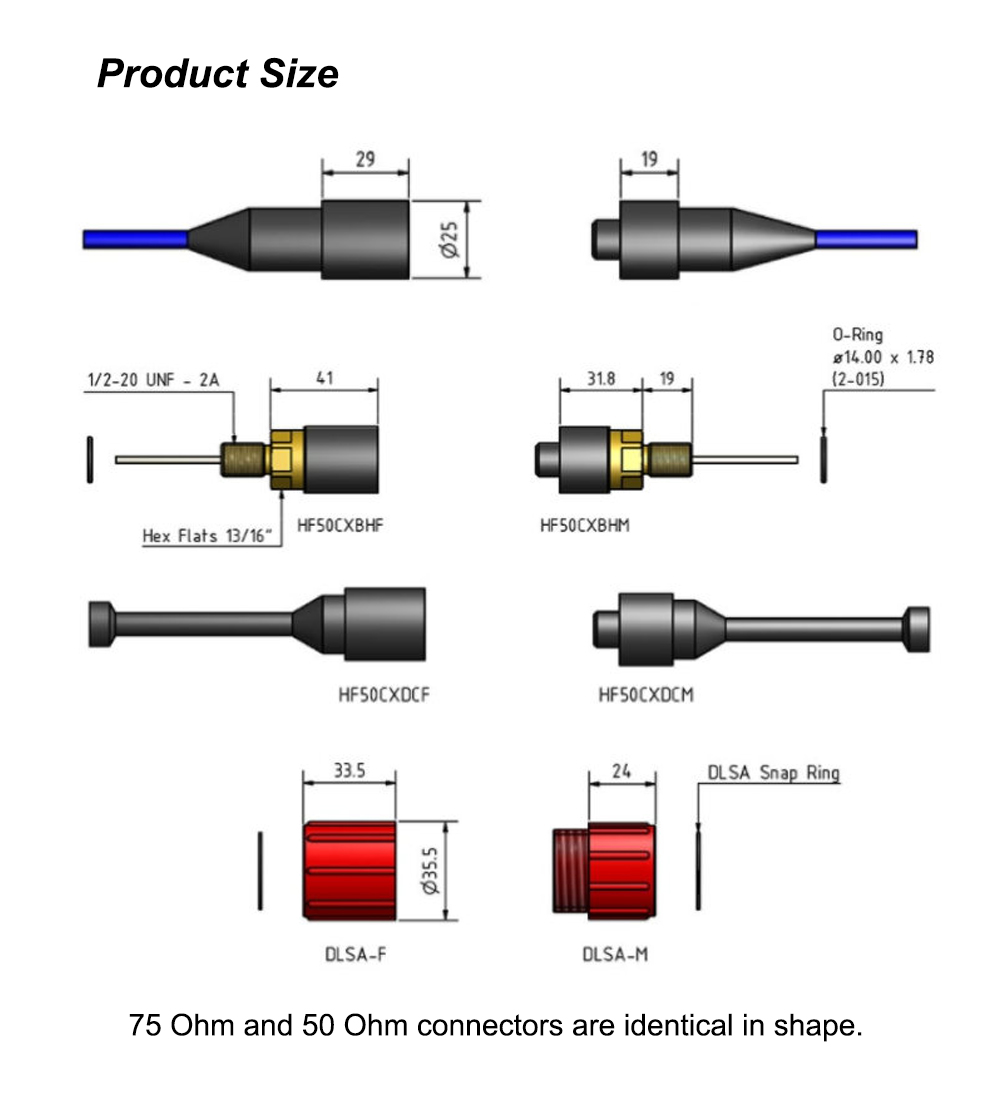

Compatible Models: HF50CXDCF / HF50CXDCM
Waterproof Rating: IP68
Maximum Depth: 6000 meters
Contact Resistance: <0.01Ω
Insulation Resistance: >200mΩ
Temperature Range: 4℃ ~ 60℃ (Underwater Environment)
Mating Cycle: >500 Times
Material: Rubber, Stainless Steel
Gender: Female
Place of Origin: Shandong, China
MOQ: 2 PCS
Certification: CE, CCC
