UC 1080 IP68-rated coaxial RF underwater connector with brass screw interface for Subconn-style ROV and marine camera integrations. Supports 6000m depth, high signal integrity, and customizable cable lengths.

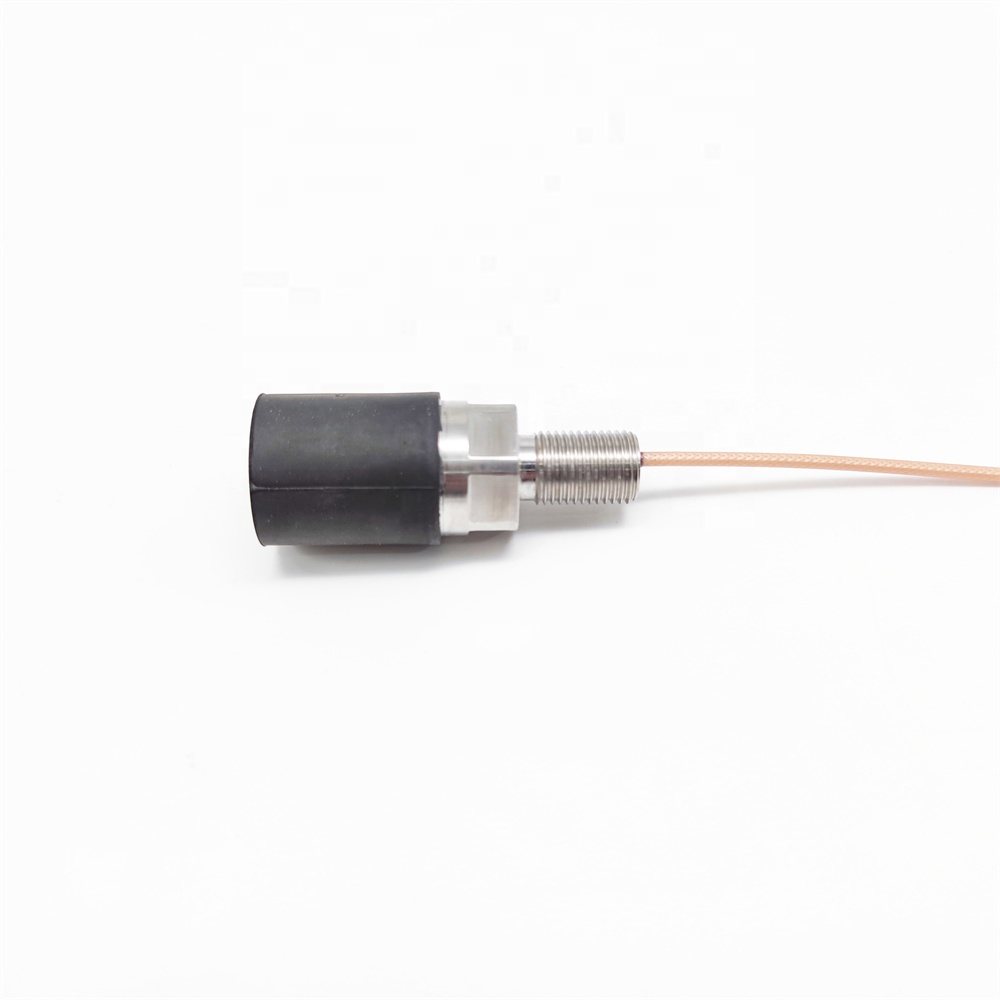

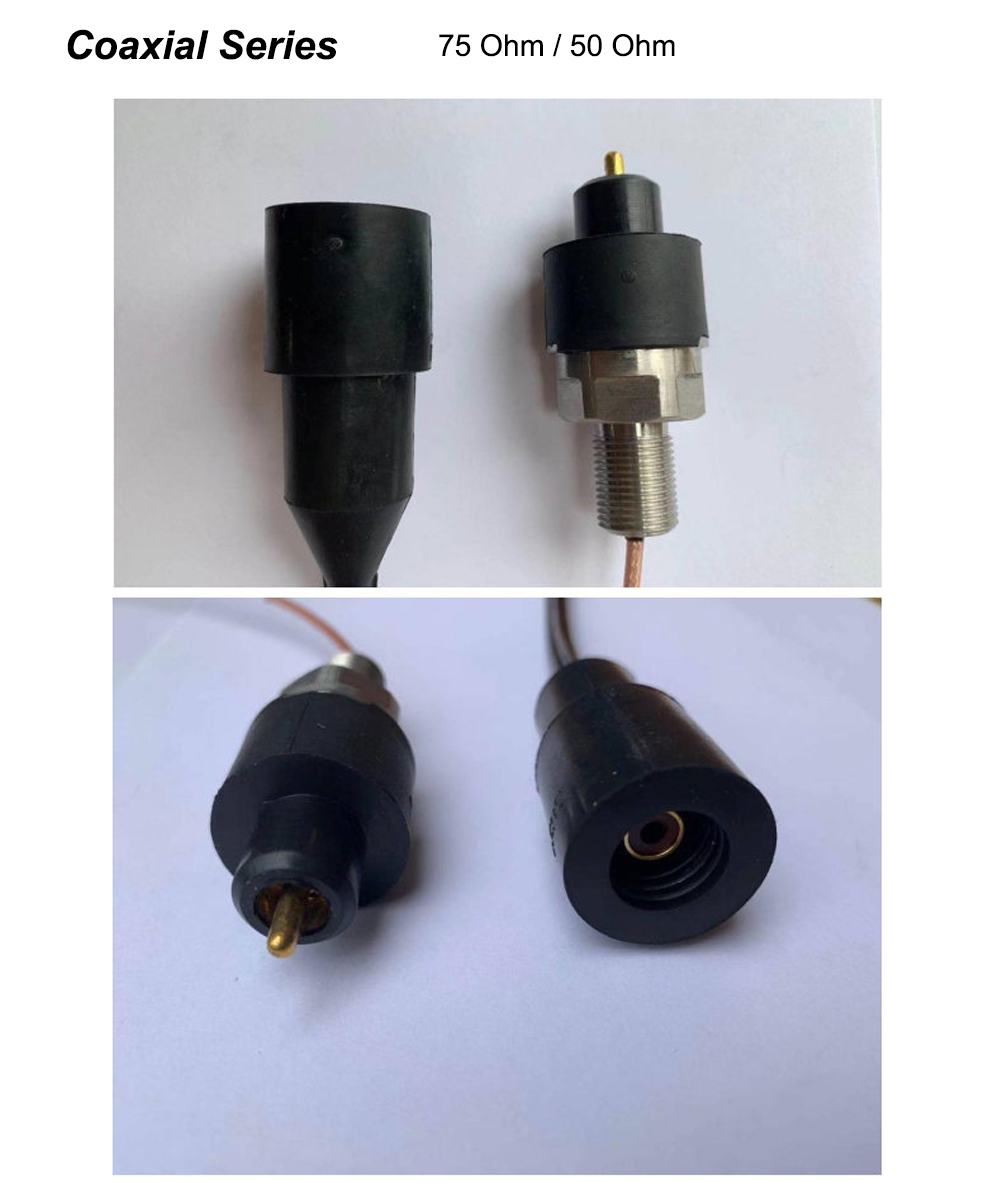

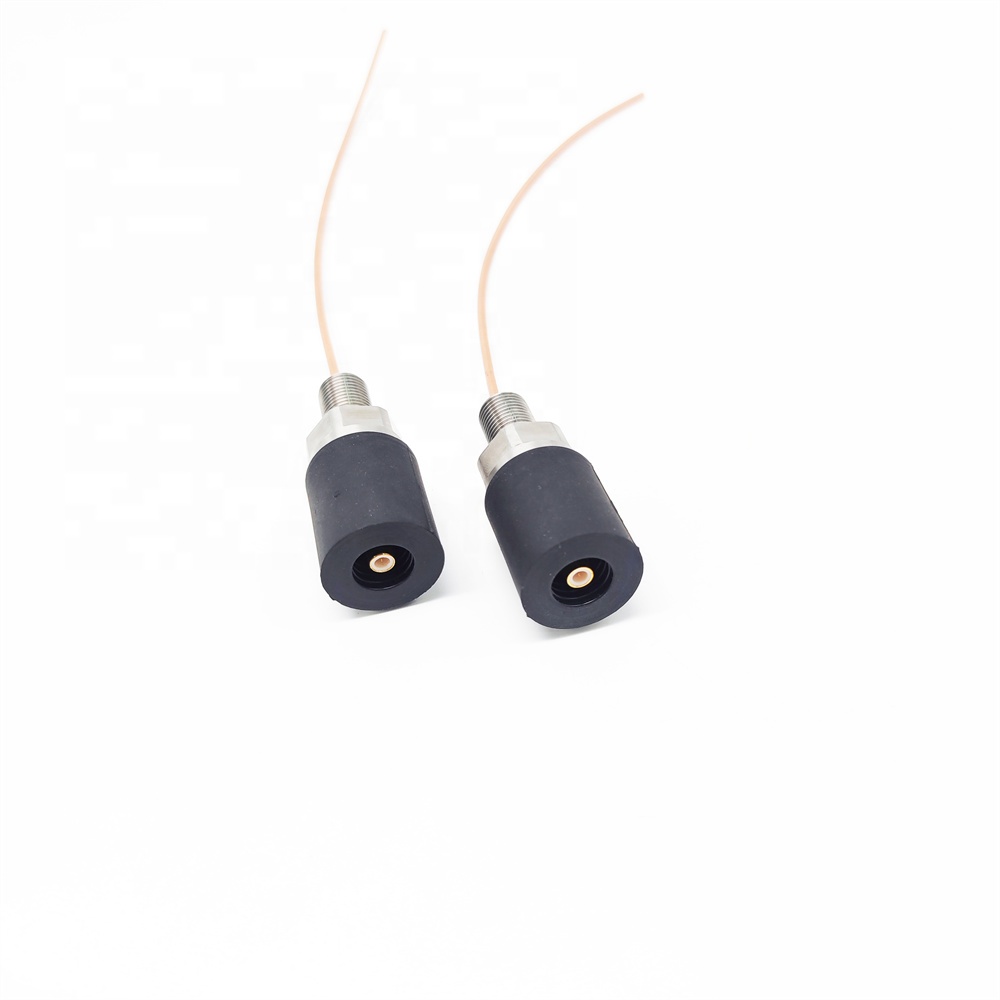

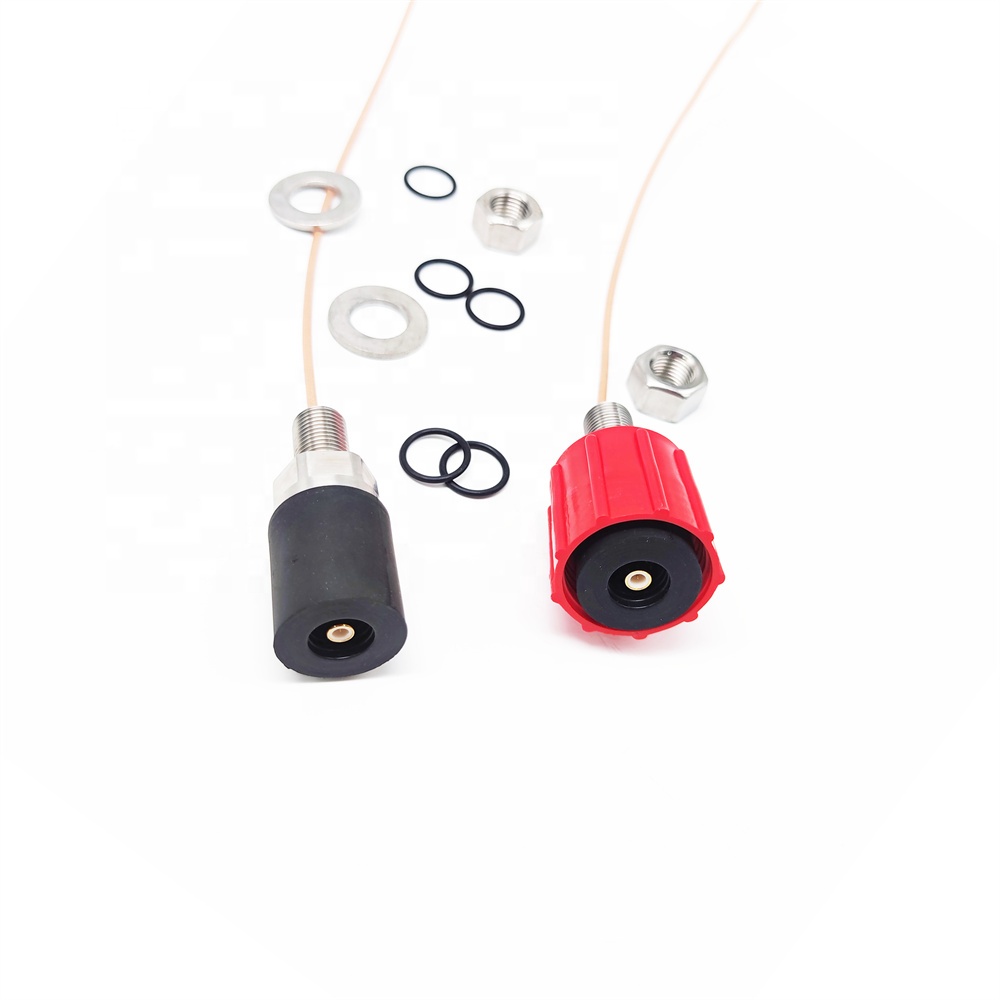

The UC 1080 Coaxial RF Underwater Connector Socket is purpose-built for deep-sea ROV systems, underwater cameras, and RF signal transmission applications. With an IP68 waterproof rating and a pressure capability of up to 6000 meters, this connector offers superior sealing performance and corrosion resistance. Featuring a Subconn-style interface, the brass screw assembly ensures stable mating for high-frequency RF use. Made from marine-rated rubber and stainless steel, it delivers <0.01Ω contact resistance and over 200mΩ insulation resistance with more than 500 mating cycles. Ideal for wet-pluggable underwater installations and electrical signal integrity at great depths.
Brand: HYSF
Model Number: UC 1080
Type: Coaxial Subconn-Style Underwater Connector Socket
Application: Underwater Cameras, ROV Systems, RF Signal Transmission
Shape: Round
Pins: Single Pin (Coaxial)
Waterproof Rating: IP68
Pressure Rating: Up to 6000 meters depth
Material: Rubber, Stainless Steel, Brass Screw Interface
Cable Length: 15cm or Customizable
Contact Resistance: <0.01Ω
Insulation Resistance: >200mΩ
Mating Cycle: >500 times
Temperature Range: 4℃ ~ 60℃ (Underwater)
Gender: Female
Place of Origin: Shandong, China
MOQ: 1 PCS
Certification: CE, CCC
