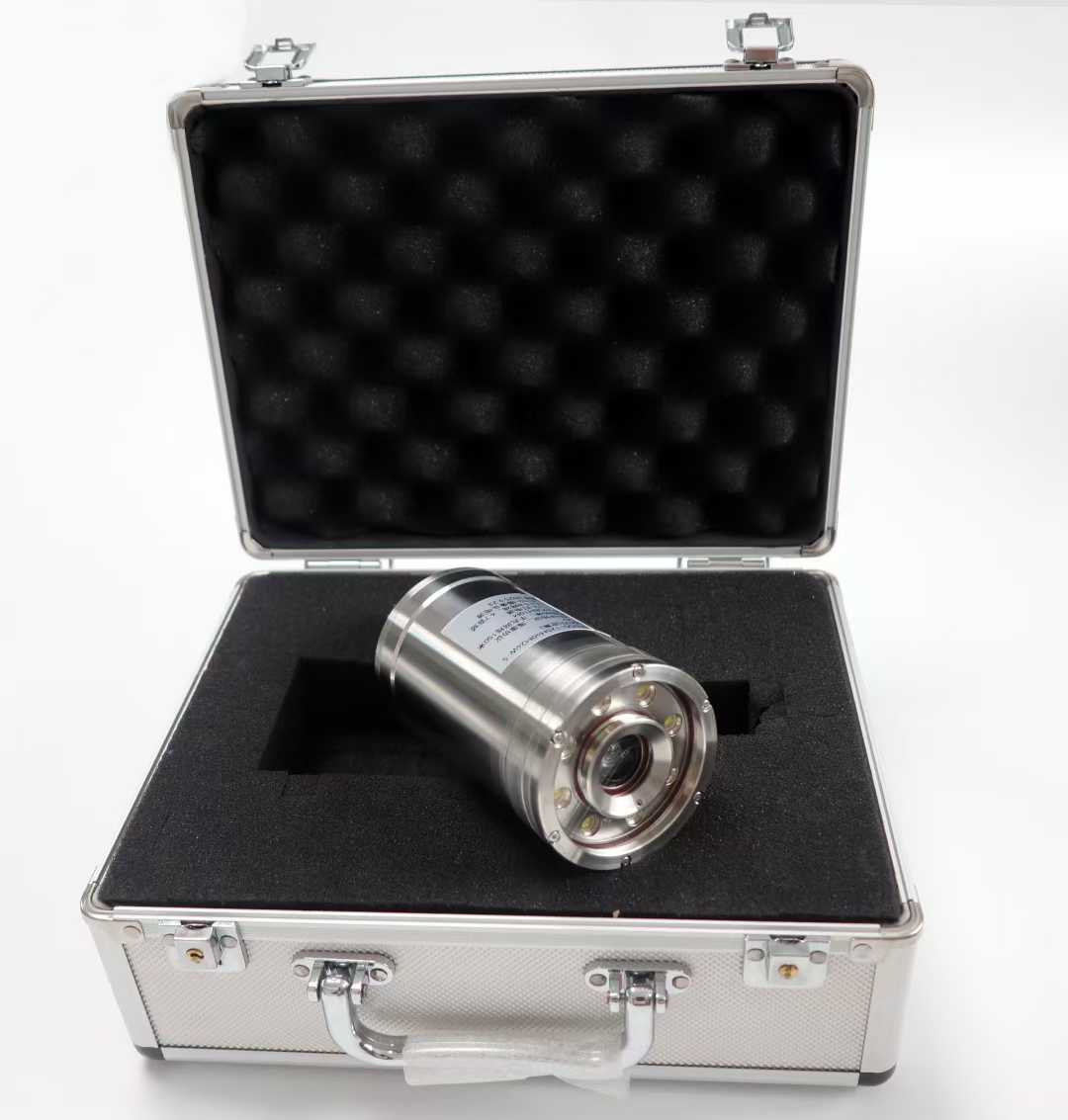

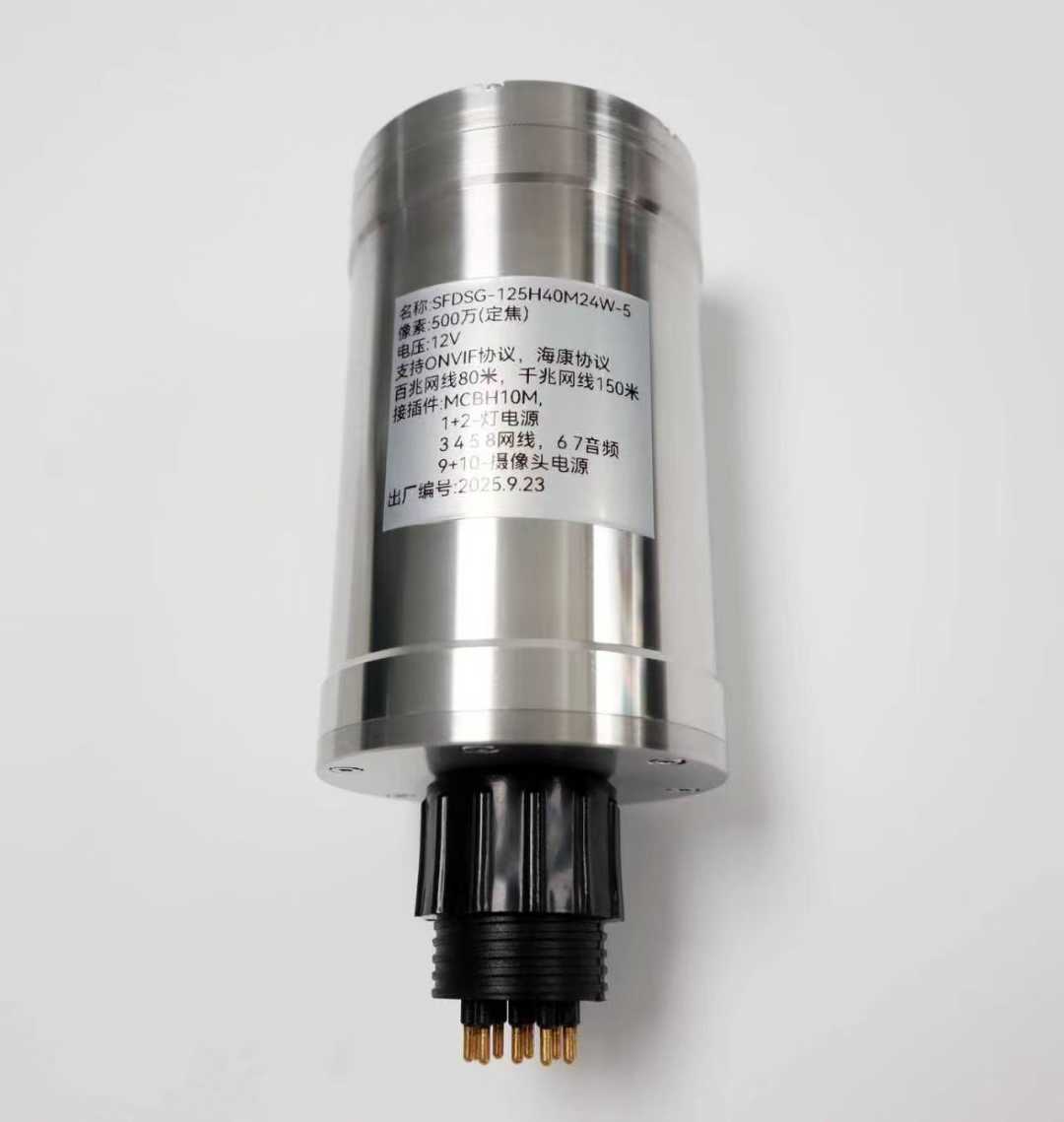

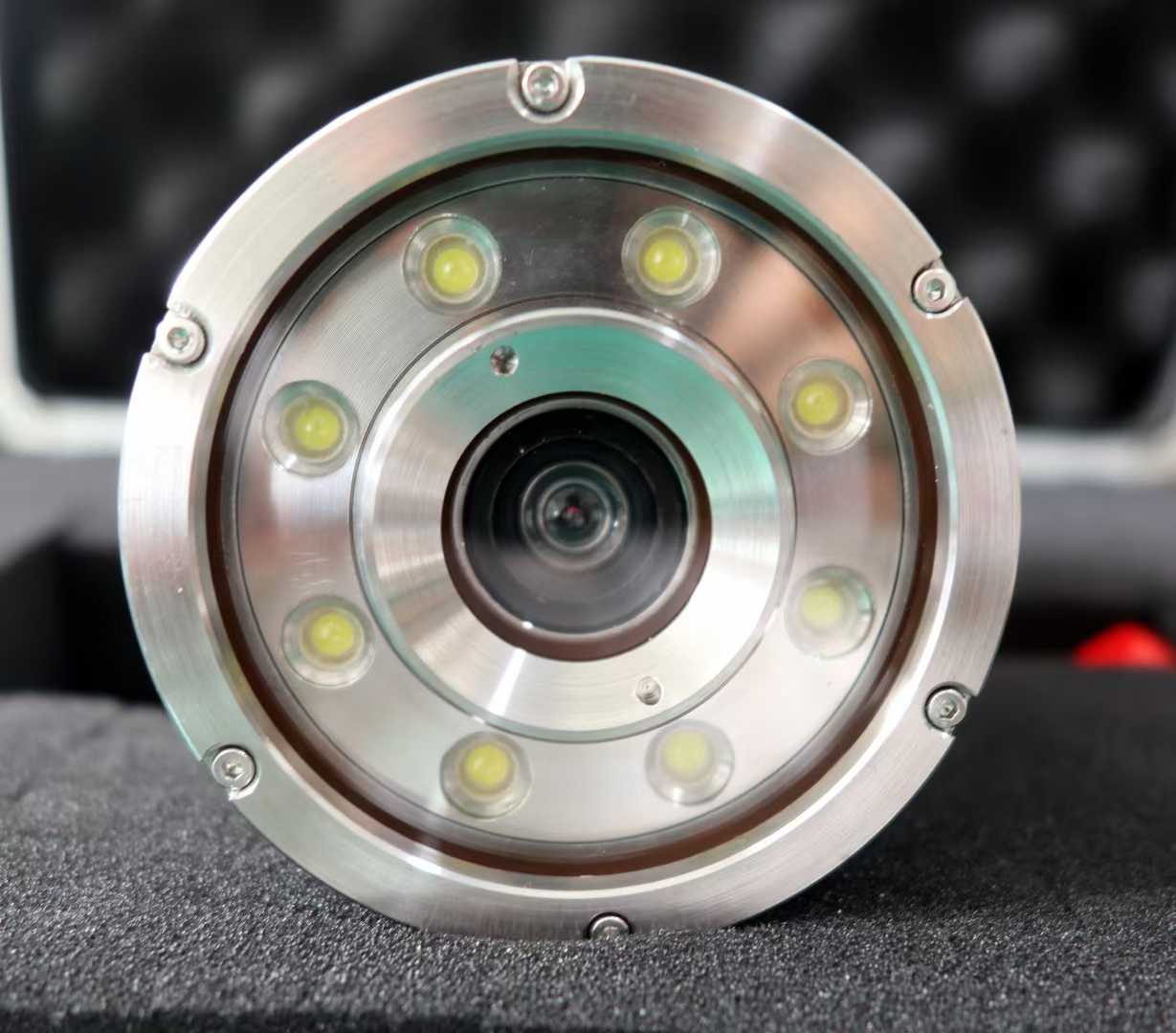

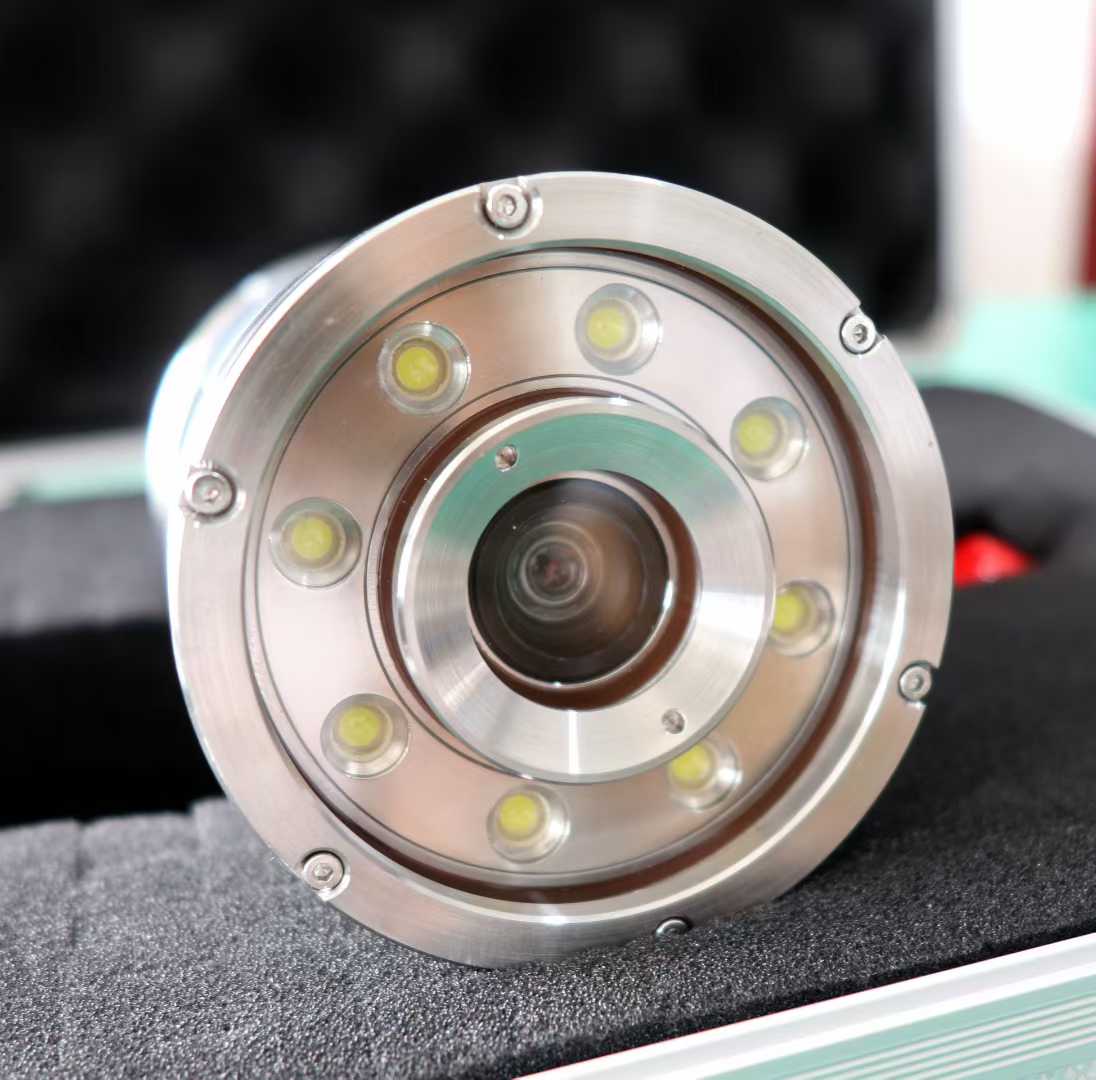

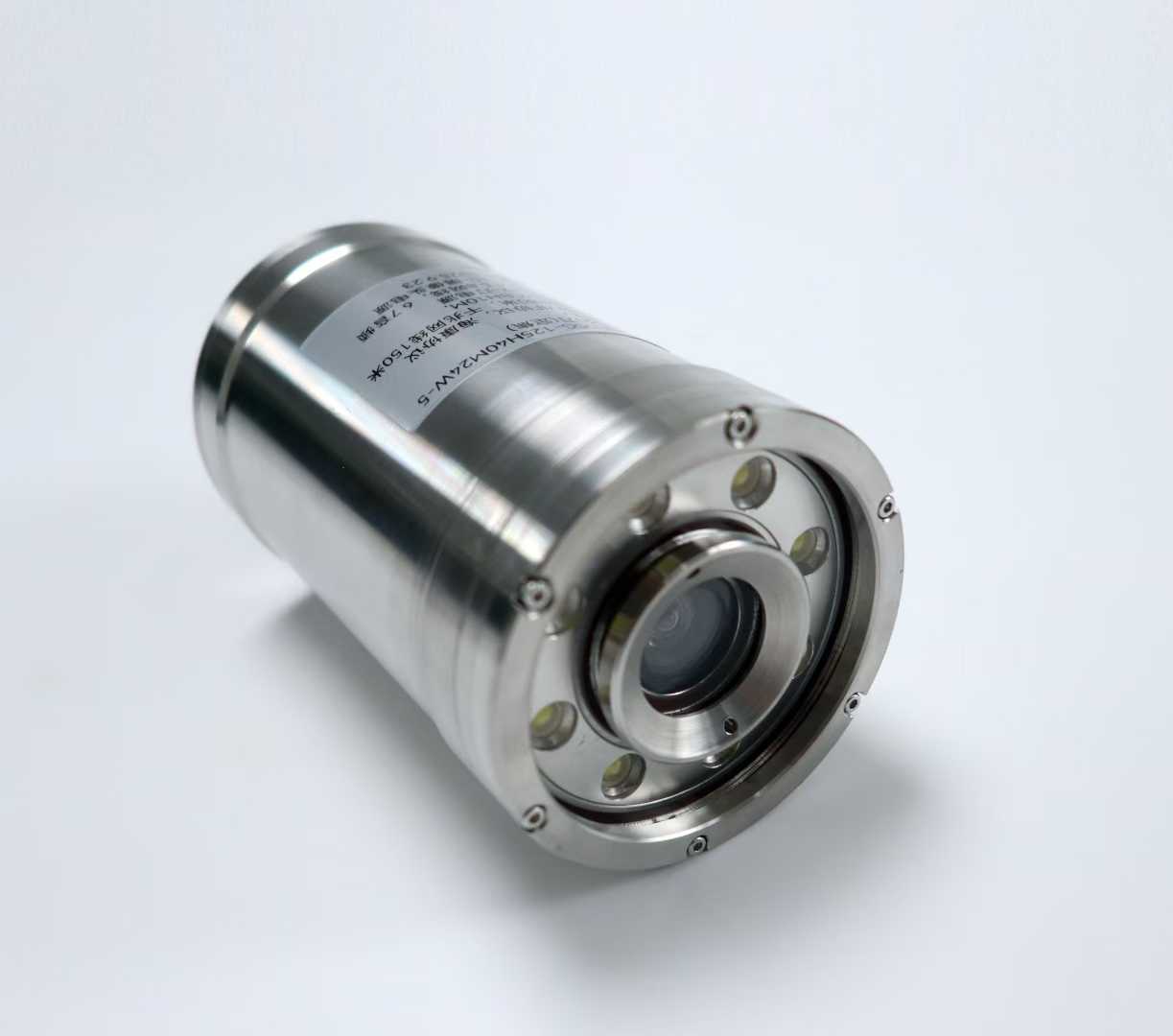

HYSF UW-CAM-5MP-40MPA Underwater Camera with 8 LED Lights (316L SS Housing)

Product Description

The HYSF UW-CAM-5MP is a successfully customized high-definition underwater camera featuring a robust 316L stainless steel housing for superior corrosion resistance in saltwater. Equipped with a 5MP network sensor for crystal-clear 2560x1920 resolution video streaming, and 8 integrated high-brightness LED lights for enhanced low-light visibility—ideal for ROV-mounted inspections, pipeline surveys, and deepsea observation tasks.

Designed with a compact circular form factor and wide-angle lens, it delivers real-time Ethernet video output compatible with standard IP networks. The assembly includes pressure-resistant seals and integrated cable glands for seamless connector integration. Rated to 40 MPa (5,800 PSI / ~4,000m depth), IP68 waterproof, and operating in temperatures from -10°C to 60°C for reliable performance in extreme marine environments.

This custom camera was engineered to client specifications for high-resolution imaging in ultra-deep applications. HYSF offers full customization in resolution, LED count/color temperature, lens FOV, and connector types. ISO9001-2015 certified and proven in offshore and scientific deployments.

Product Parameter

Model: UW-CAM-5MP

Brand: HYSF

Type: Custom Underwater Network Camera with LED Illumination

Resolution: 5MP (2560x1920) HD

Sensor: CMOS Network IP Camera

LED Lights: 8x High-Brightness White LEDs (Adjustable Intensity)

Housing Material: 316L Stainless Steel

Lens: Wide-Angle (90° FOV), Fixed Focus

Pressure Rating: 40 MPa (5,800 PSI / ~4,000m Depth)

Waterproof Rating: IP68

Operating Temperature: -10°C to 60°C

Interface: Ethernet RJ45 + Power over Cable (PoE Compatible)

Video Output: Real-Time Streaming (H.264/H.265 Compression)

Application: ROV Inspections, Subsea Monitoring, Deepwater Video Systems, Offshore Surveys

Certification: ISO9001-2015

Customization: Resolution, LED configuration, lens FOV, connector integration, cable length

Power Supply: 12-24V DC, <10W (with LEDs)

Place of Origin: Guangdong, China
