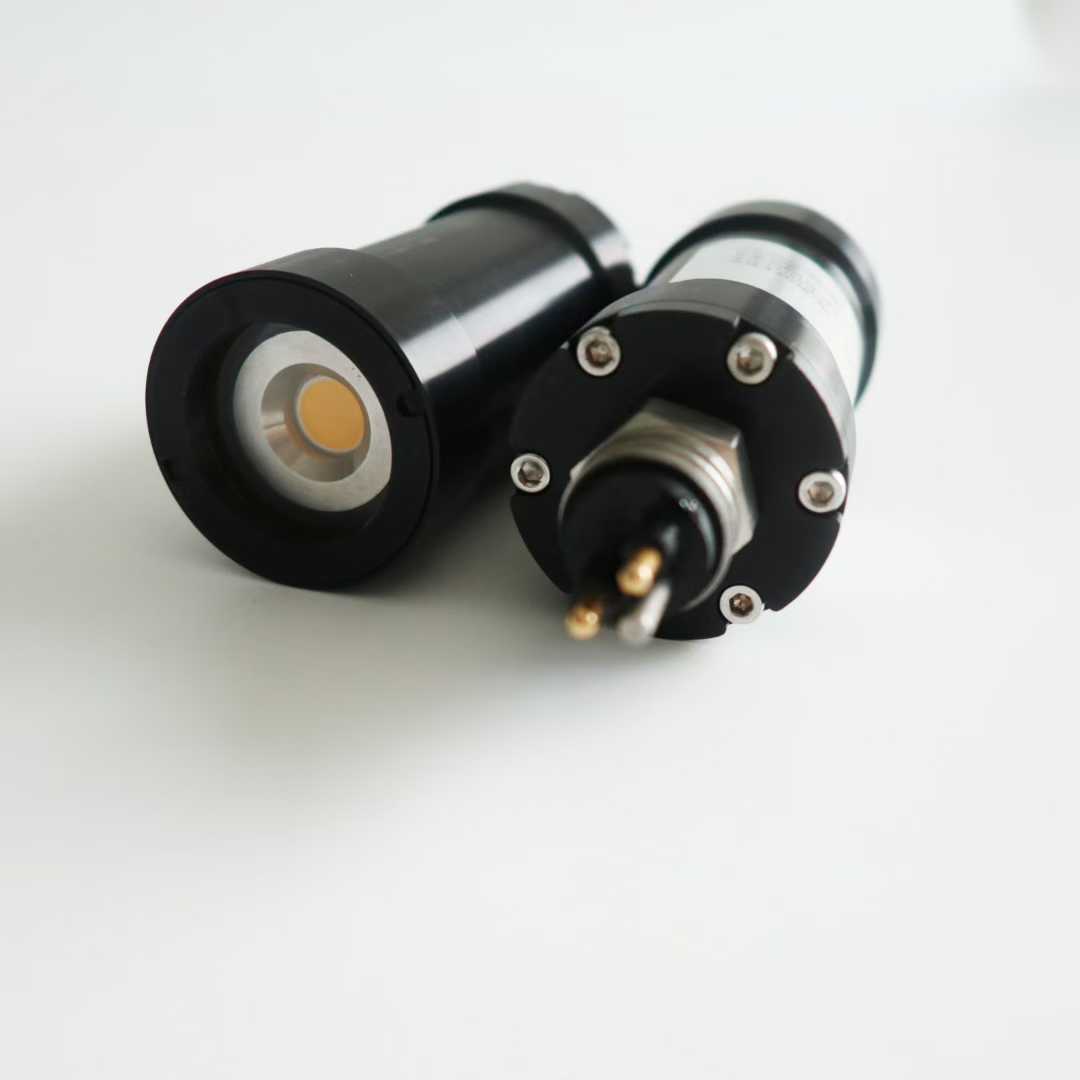

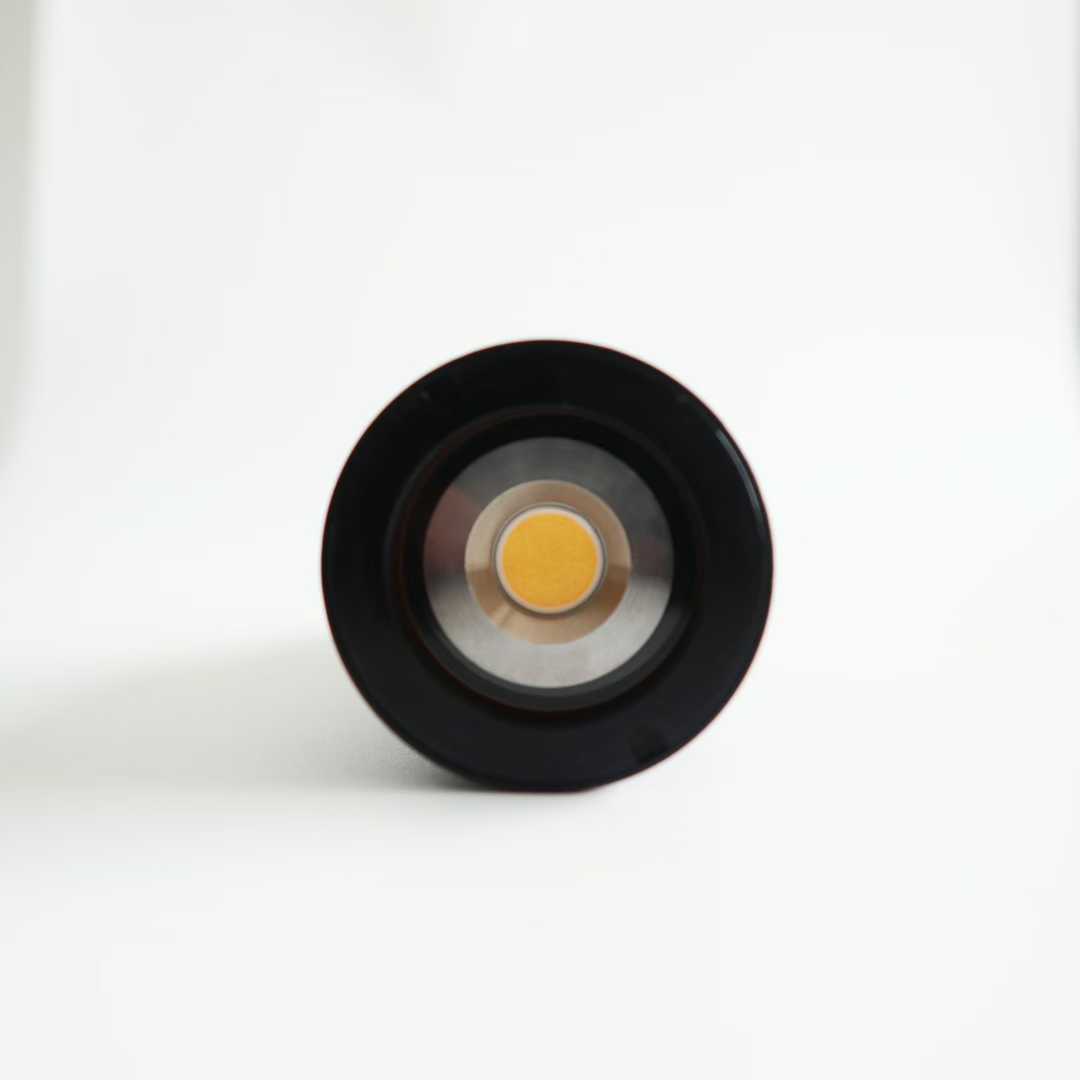

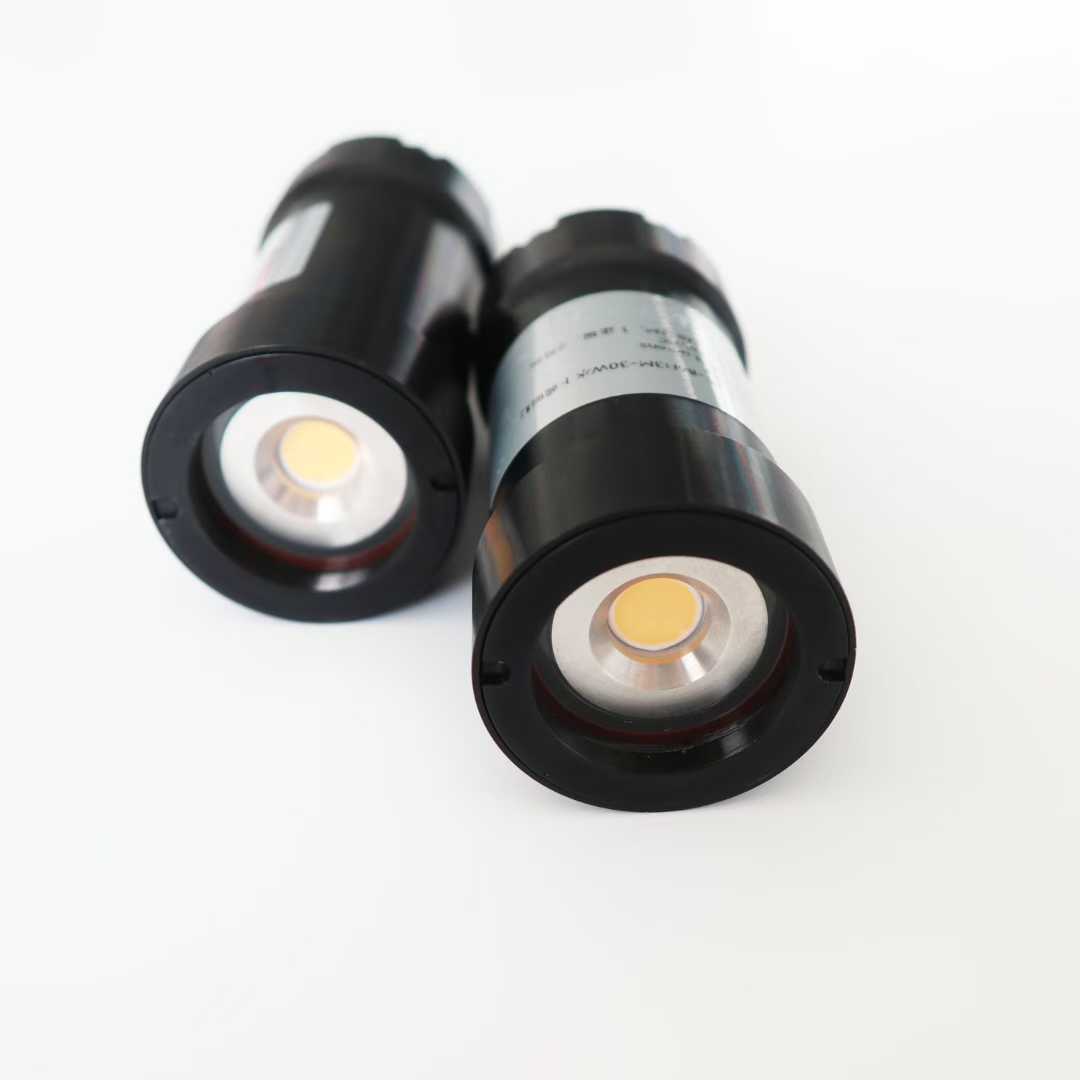

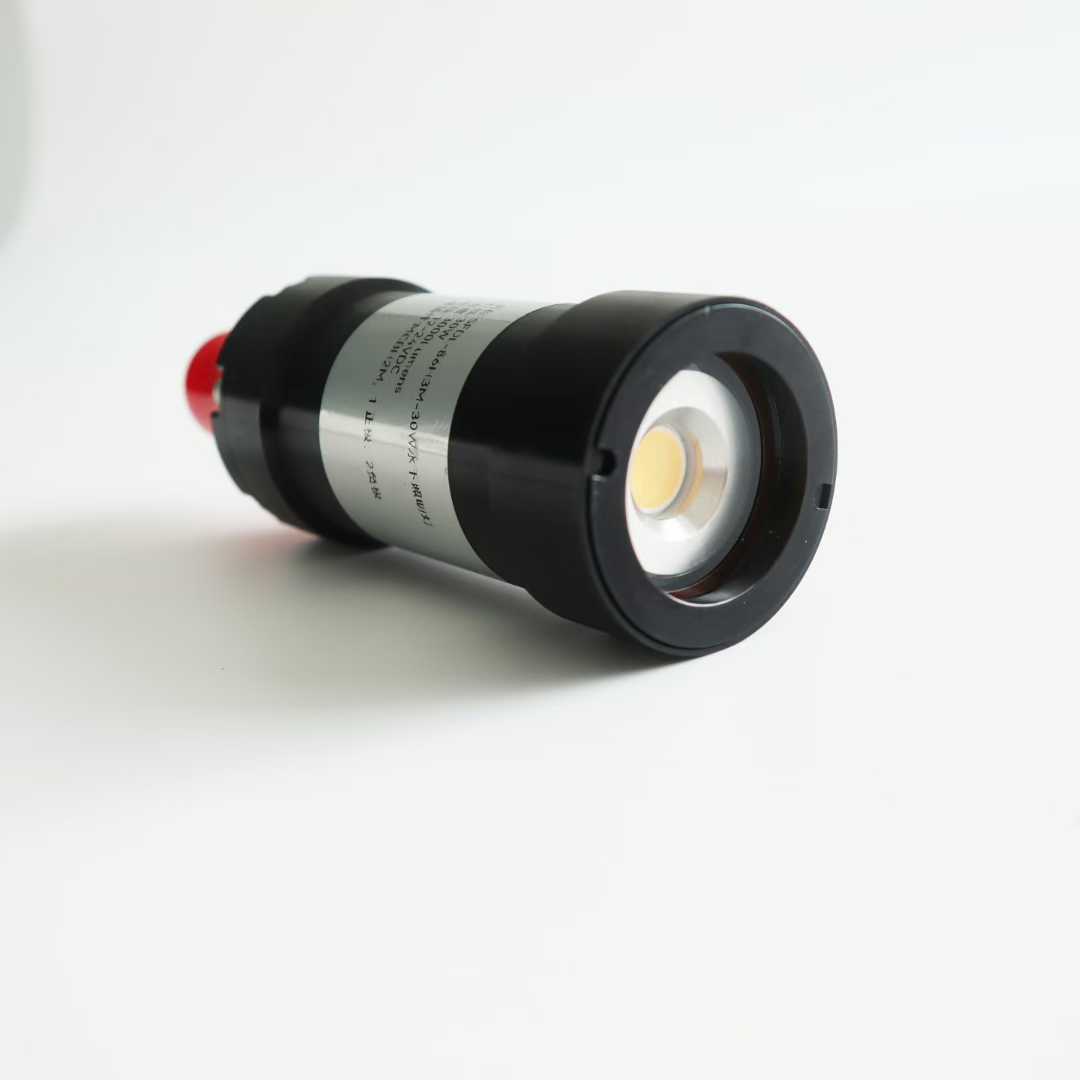

HYSF UW-LIGHT-3000LM Custom Underwater Fill Light (3000 Lumens, 300m Depth Rated)

Product Description

The HYSF UW-LIGHT-3000LM is a successfully customized compact underwater fill light engineered for superior illumination in murky or dark subsea conditions. Featuring **high-output LED arrays producing 3000 lumens of natural white light (5000K)**, it's optimized for camera fill lighting on ROVs, diver videography, and underwater photography—ensuring clear, color-accurate footage at depths up to 300 meters.

Constructed with **anodized aluminum body** for lightweight corrosion resistance and a **durable acrylic lens** with anti-reflective coating, it includes an **integrated MCBH-compatible waterproof connector** for easy power integration. Rated IP68 with double O-ring sealing, pressure-tested to 30 Bar (435 PSI), and equipped with thermal management for continuous operation. Low power draw (24V DC, 25W) for extended battery life.

This cost-effective custom light offers exceptional brightness in a slim cylindrical design for mounting on housings or arms. HYSF provides full customization in lumen output, beam angle (90° flood standard), color temperature, and connector type. ISO9001-2015 certified and proven in 300m+ recreational and professional dives.

Product Parameter

Model: UW-LIGHT-3000LM

Brand: HYSF

Type: Custom Underwater LED Fill Light

Lumen Output: 3000 Lumens

Color Temperature: 5000K Natural White

Beam Angle: 90° Flood (Customizable)

Housing Material: Anodized Aluminum

Lens: Acrylic with AR Coating

Depth Rating: 300m (30 Bar / 435 PSI)

Waterproof Rating: IP68 (Double O-Ring Seal)

Operating Temperature: 0°C to 50°C

Power Supply: 24V DC, 25W

Connector: Integrated MCBH Waterproof (2-Pin Power)

Dimensions: Ø50 x 120 mm (Compact Cylindrical)

Weight: 250g (Underwater)

Application: ROV Camera Fill, Diver Photography, Subsea Inspections, Underwater Videography

Certification: ISO9001-2015

Customization: Lumen rating, beam pattern, voltage, mounting bracket, connector pins

Features: Thermal Protection, Low Heat Emission

Place of Origin: Guangdong, China
